Home/ Products/ Packaging Testing Equipment/ Legend O2_CO2
Aneolia

Legend O2_CO2

Packaging Testing Equipment

O2/CO2 gas analyser: suitable for modified atmosphere packaging (MAP)

Request Quote Download Datasheet
Ask a question →

Full Description

O2/CO2 gas analyser: suitable for modified atmosphere packaging (MAP)

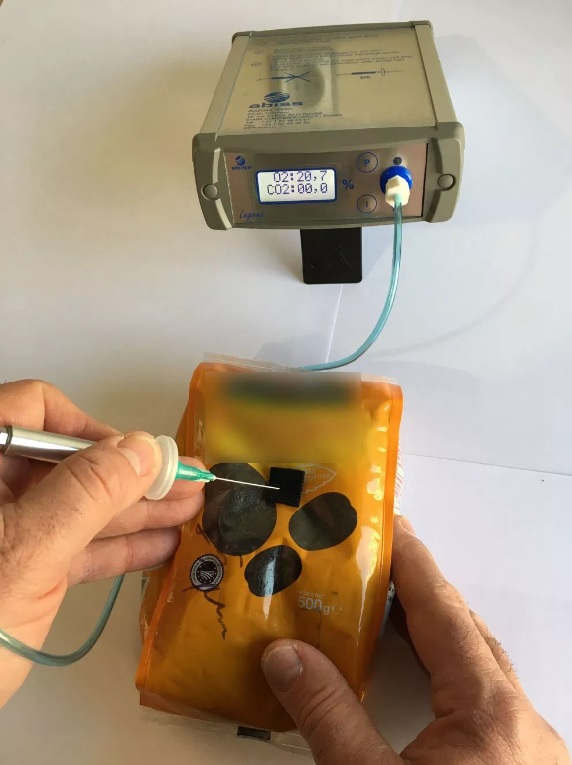

The O2/CO2 LEGEND is a portable, reliable and durable gas analyser. This measurement device is ideal for starting small modified atmosphere packaging (MAP) productions or other inerting. The last measure on the screen will stay there until the next cycle is started.

THE + PRODUCTS

  • Performance/Quality/Cost
  • Reliability/Durability/Simplicity
  • Low Sample volumes
  • Runs off batteries (or from a power supply)

Features

Ingress protection of enclosure IP 41
Measurement device Portable
Enclosure Aluminium
Weight 750 g
Width 125 mm
Height 50 mm
Depth 180 mm
Battery NiMH Battery. Battery autonomous up to 16h (or 6,000 measurements) when used continuously and intensively.100% charge in 4h
Power 100-250VAC power supply via external charger – 50/60Hz
Display 2 lines of 8 characters LCD
Storage conditions 0 - 70°C/0 - 90% HR
Terms of use 0 - 40°C/10 - 90% HR
O2 Oxygen measurement Technology : Electrochemical Precision : +/- 1% relative T90 response time :
CO2 Carbon Dioxide measurement Technology : NDIR Accuracy : +/- 2% full scale Resolution : 0,1% T90 response time : 7s Average service life : 10 years

Downloads

Distributed by Polytech Instruments — authorized partner for Aneolia View all products from this brand →
