Ipos 2 O2
O2 gas analyser: portable, suitable for modified atmosphere packaging (MAP) with blocked circuit detection.
Full Description
O2 gas analyser: portable, suitable for modified atmosphere packaging (MAP) with blocked circuit detection.

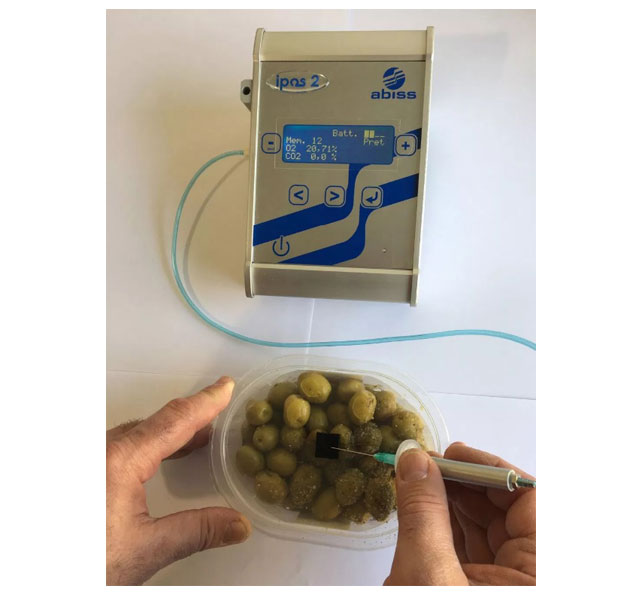

The IPOS2 O2 gas analyser is a versatile analyser that can be either portable or bench-mounted. The only gas analyser with blocked circuit detection, the IPOS2 is the only one capable of offering IP54 level airtightness. Equipped with a large screen, this measurement device is reliable and sturdy, and suitable for inspecting the quality of your modified atmosphere packaging (MAP) or other inerting.
THE + PRODUCTS
- Resolution O2 : 0.01%
- Blocked circuit detection
- IP54 durability/reliability
- Adjustable pumping time
- Programme creation with a threshold alarm
- Memory storage for the last 400 measurements
- Traceable via the USB port (optional)
- Can be used for combined O2/CO2 gas analysis
Features
| Ingress protection of enclosure | IP 54 |
| Measurement device | Portable |
| Enclosure | Aluminium |
| Weight | 1,1 kg |
| Width | 130 mm |
| Height | 95 mm |
| Depth | 180 mm |
| Battery | NiMH Battery. Battery autonomous up to 24h (or 6,000 measurements) when used continuously and intensively.100% charge in 4h |
| Power | 100-250VAC power supply via external charger – 50/60Hz |
| Memory capacity | 400 measurements |
| Display | 4 lines of 20 characters LCD |
| Digital interfaces | 1 USB 2.0 |
| Storage conditions | 0 - 70°C/0 - 90% HR |
| Terms of use | 0 - 40°C/10 - 90% HR |
| O2 Oxygen measurement | Technology : Electrochemical Precision : +/- 1% relative T90 response time : |
| Blocked circuit detection | yes |
| Pump suction control | yes |
| Compensation for atmospheric pressure variations | yes |
| Results storage | yes |
| USB Connection | yes |
| Traceability | Program number, storage of measurements, dates, times, alarm thresholds |
| Options | USB transfer pack: data is transferred via the USB port via the software provided with the option. |
