Full Description
System for measuring micro-leaks and packaging sealing resistance.

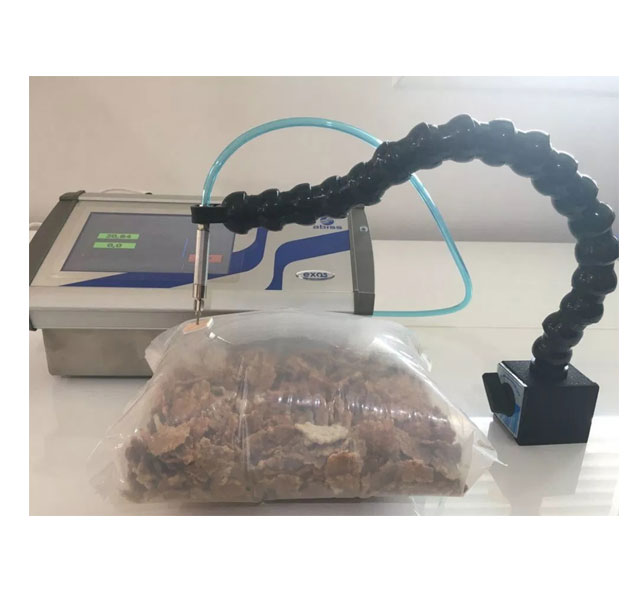

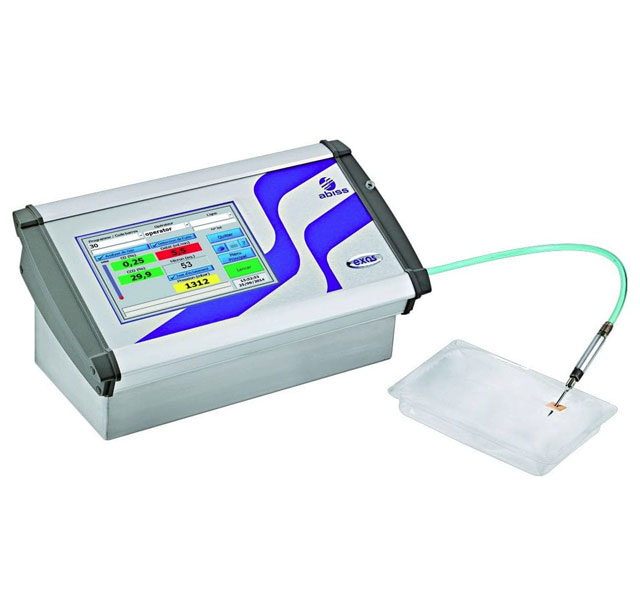

The EXOS LEAK allows you to measure airtightness for vacuum packaging and pneumatic circuits. This measurement device also checks the resistance of sealing using a bursting test. These two tests can be carried out in quick succession on the same packaging. The sensitivity threshold can be up 5 microns in terms of perforation size (Equivalent size of a bacterium is between 1 and 10 microns)
THE + PRODUCTS
- Meets standards:
- DIN 55508-1: measures flow rate at constant pressure
- ASTM F1140: seal strength
- ASTM F2054: burst test
- Measures with low excessive pressure
- Breathability measurement (micro-perforated films)
- Tested on vacuum packaging
- Fully traceable via an internal spreadsheet
- Excessive pressure can be fitted manually or automatically
- Remote maintenance 7 days a week, with remote connection available
Features
| Ingress protection of enclosure | IP 54 |
| Measurement device | Bench-mounted |
| Enclosure | Aluminium and Stainless steel |
| Weight | 4,5 kg |
| Width | 340 mm |
| Height | 170 mm |
| Depth | 230 mm |
| Power | 100-240VAC -50/60Hz - 63W |
| Feed pressure | 4 to 8 Bar (dry and oil free filtred to 20 µm) filtered at 20μm |
| Inlet pneumatic connection diameter | 4 x 6 mm tube connection |
| Memory capacity | 4 to 32go |
| Display | Color touchscreen 7’’ |
| Digital interfaces | 1 USB 2.0 and 1 Ethernet RJ45 |
| Storage conditions | 0 - 70°C/0 - 90% HR |
| Terms of use | 0 - 40°C/10 - 90% HR |
| Pressure measurement | 1 |
| Leak measurement | Technology : Flowmeter Accuracy : +/-2% full scale Resolution : 0,1ml/min - 1μm Repeatability : +/-0.3% relative Flow scales : 0-500ml/min - From 5μm to 500μm Test pressure : From 10 to 500 mbar +/- 1mbar Inflating flow : 4200 ml/min at 20 mbar Compressed air supply : 4 to 8 Bar (dry and oil free fi |
| Burst test | Technology : Barometric Accuracy : +/- 0,5% full scale Resolution : 1mbar Flow scales : 0,2 – 1,4 bar Quick inflating flow : Minimum 250l/h Burst pressure : Up to 1,4 bar Analytical curves (displayed and recordable) or Creep test Technology : Barometric Accuracy : +/- 0,5% full scale Resolution : 1m |
| Blocked circuit detection | yes |
| Results storage | yes |
| USB Connection | yes |
| Touchscreen | yes |
| Traceability | Format, line, operator, batch number, comment at the end of the test |
| Remote Connection | Remote control possible for remote maintenance |
| Network connection (Ethernet socket) | yes |
| Options | 3G router + HMI Advanced Waterproof RJ45 Ethernet port |
Applicable standards
Meets standards: DIN 55508-1: measures flow rate at constant pressure ASTM F1140: seal strength ASTM F2054: burst test
