Gloss Meter

Gloss Meter

G2001. Gloss Meter Standard 60° 0-100GU

The Gloss Meter will measure the gloss of a surface where an aesthetic appearance of the coating finish is required.

Gloss is measured with angles of 60° and 20°. The 60° angle is universal for all applications. The 20° angle gives improved differentiation of measurement on high-gloss coatings above 70 gloss units.

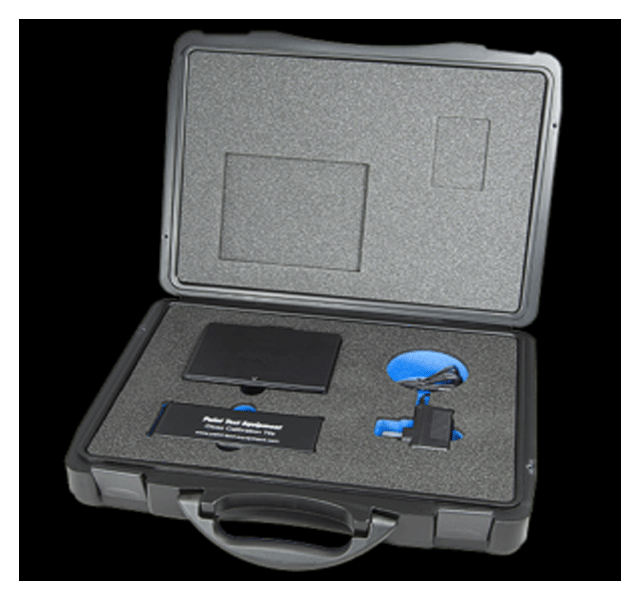

Supplied in an industrial Carrying Case with Gloss Tile and Charger. Calibration Certificates with traceability to BAM are an optional extra.

Compliant to ISO 2813.

Technical Specification

Gloss Meter functions are easily accessible through a menu-driven back-lit display incorporating the following features.

Calibration. Calibrate on the supplied Gloss Tile or any other value Gloss Tile.

Statistics. Shows Mean, Number of Readings, Max/Min, Coefficient of Variation and Standard Deviation.

Limits. Pass and fail with audible and visual alarm.

Measurement accuracy ±1%.
