Calibration Foils

Material Test & Measurement

F2001. Calibration Foils 0–1000µm (25, 50, 75, 125, 175, 250, 500, 750µm)

Request Quote Download Datasheet

Ask a question →

Full Description

Calibration Foils

F2001. Calibration Foils 0–1000µm (25, 50, 75, 125, 175, 250, 500, 750µm)

Calibration Foils for calibrating the Coating Thickness Meters.

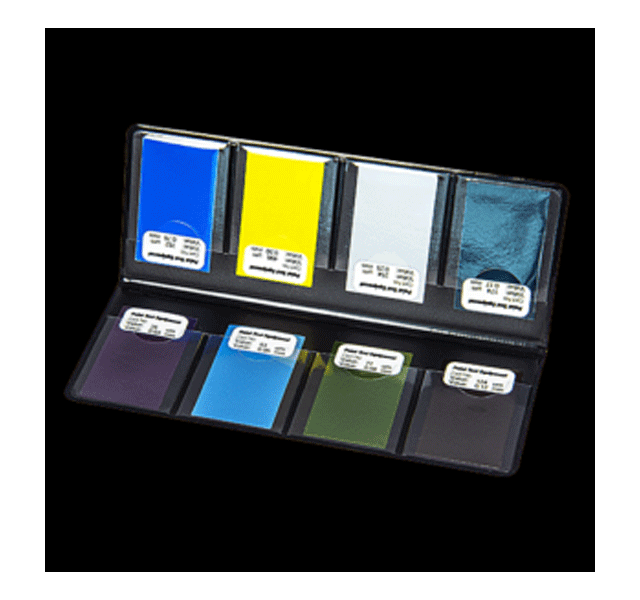

Supplied in packs of eight in a protective wallet.

Calibration Certificate with traceability to UKAS is an optional extra.

Technical Specification

Each individual Calibration Foil is measured in the centre and the value is printed on the attached label.

Foil accuracy ±2%.

Models

Available in the following Calibration Foil ranges:

F2001 0–1000μm (25, 50, 75, 125, 175, 250, 500, 750μm),

F2002 0–40mils (1, 2, 3, 5, 7, 10, 20, 30mils),

F2003 0–2000μm (50, 250, 500, 750, 1000, 1250, 1500, 2000μm),

F2004 0–80mils (2, 10, 20, 30, 40, 50, 60, 80mils),

F2005 0–5.00mm (50, 250, 500, 750, 1000, 1500, 2000, 3000μm),

F2006 0–200mils (2, 10, 20, 30, 40, 60, 80, 120mils),

F2007 1–20.0mm (5, 9.5, 15mm) and

F2008 1–800mils (200, 360, 600mils).

Special Range Calibration Foils can be supplied, made up of any 8 values as listed:

12µm , 25µm, 50µm , 75µm , 100µm , 125µm , 150µm , 175µm , 190µm , 200µm , 225µm , 250µm , 275µm , 300µm , 350µm , 375µm , 500µm , 625µm , 750µm , 1000µm , 1250µm , 1500µm , 2000µm , 3000µm. (values shown are nominal values.).
