Holiday Detector

Holiday Detector

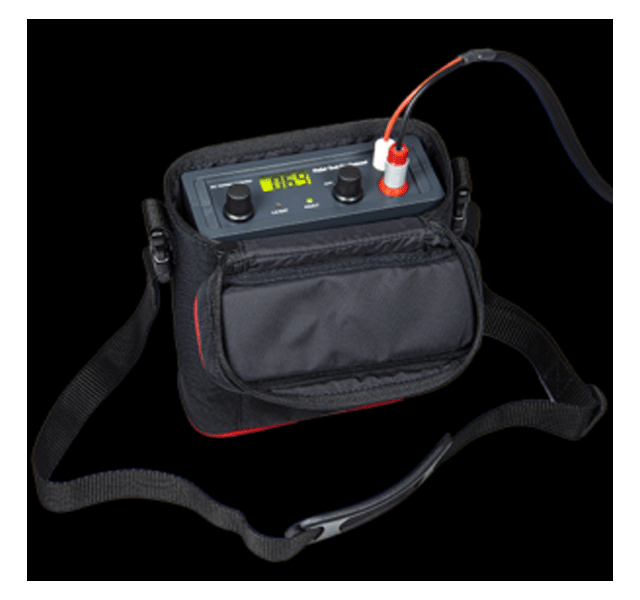

S4001. Holiday Detector 0.5–6Kv. Includes High Voltage Handle

Holiday Tester for detecting pinholes and flaws in coatings on conductive substrates.

Where coatings have to provide an effective safeguard against corrosion, it is essential that any pinholes or flaws that will eventually lead to corrosion are detected at the earliest possible stage.

Available in the following Holiday Detector models: S4001 0.5–6kV for coatings up to 1100μm, S4002 1–20kV for coatings up to 3700μm and S4003 1–30kV for coatings up to 8000μm.

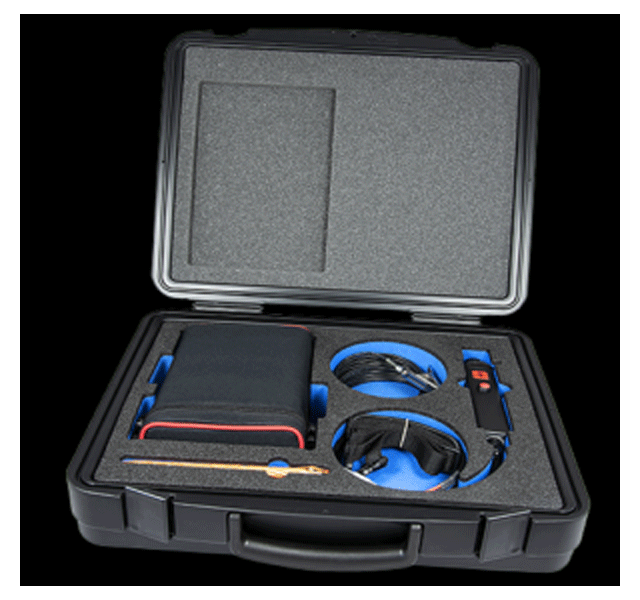

Supplied in an industrial Carrying Case with High Voltage Handle, Band Brush Probe, Earth Cable (10m) and Carrying Bag. Calibration Certificate with traceability to UKAS is an optional extra.

Compliant to the following Standards: ISO 29601, ISO 2746, ASTM D5162, ASTM G62, NACE SP0274, NACE SP0188 and NACE SP0490.

Technical Specification

• S4001 Holiday Detector 0.5–6kV for use with coatings up to 1100μm. Resolution 0.01kV.
• S4002 Holiday Detector 1–20kV for use with coatings up to 3700μm. Resolution 0.1kV.
• S4003 Holiday Detector 1–30kV for use with coatings up to 8000μm. Resolution 0.1kV.
• Voltage accuracy ±1%.
