Wet Film Gauges Plastic

Wet Film Gauges Plastic

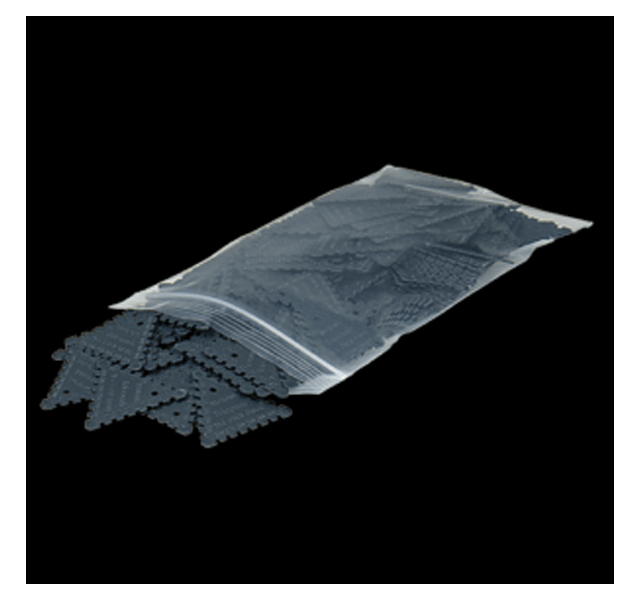

The Wet Film Gauges Plastic ensures the quality control of the paint thickness while the coating is still wet.

Supplied in quantities of 200 and give the industrial painter a quick and easy test of the wet film thickness. They can also be kept as a permanent record of the paint thickness.

All Wet Film Gauges have metric values on the front side of the gauge and imperial values on the back.

Compliant to ISO 2808 and ASTM D4414.

Part Number: W2008. Tricomb Plastic Wet Film Gauge 50–900μm/2–36mils (pack of 200).

Technical Specification

Eighteen teeth with the following measurement range: 50, 65, 75, 90, 100, 125, 150, 175, 200, 250, 300, 350, 400, 500, 600, 700, 800, 900μm.

The back of the Gauge shows the following readings: 2, 2.5, 3, 3.5, 4, 5, 6, 7, 8, 10, 12, 14, 16, 20, 24, 28, 32, 36mils.
