Non Ferrous Probes

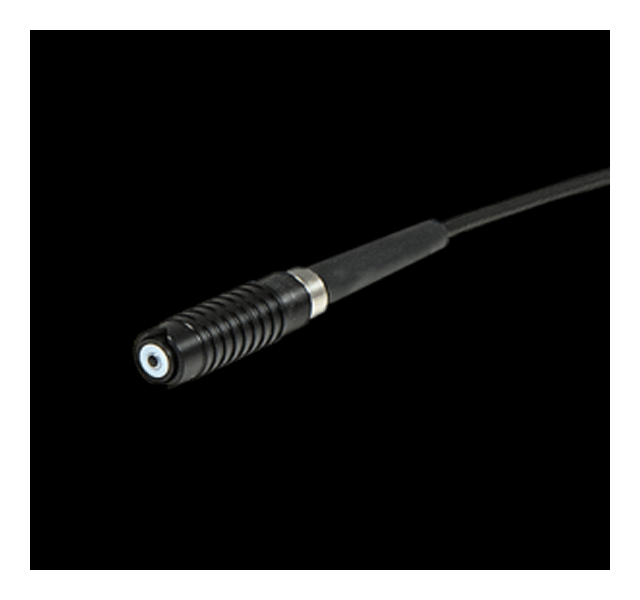

CS304. Spare Non-Ferrous Probe 0–1000μm (to fit C5004 & C5006 Coating Thickness Meters)
Full Description
Non-Ferrous Probes
CS304. Spare Non-Ferrous Probe 0–1000μm (to fit C5004 & C5006 Coating Thickness Meters)
The Non-Ferrous Probes are for use with the Coating Thickness Meter.
Non-Ferrous Probes will measure all non-conductive, non-ferromagnetic coatings on conductive non-ferrous substrates.
Example: Paint on aluminium, paint on stainless steel and anodising on aluminium etc.
Calibration Certificate with traceability to UKAS is an optional extra.
Technical Specification
- Accuracy: ±1 to 3%
- Resolution CS304 Probe 0–1000μm: 1µm (0.1mil).
- Resolution CS305 Probe 0–2000μm: 1µm (0.1mil).

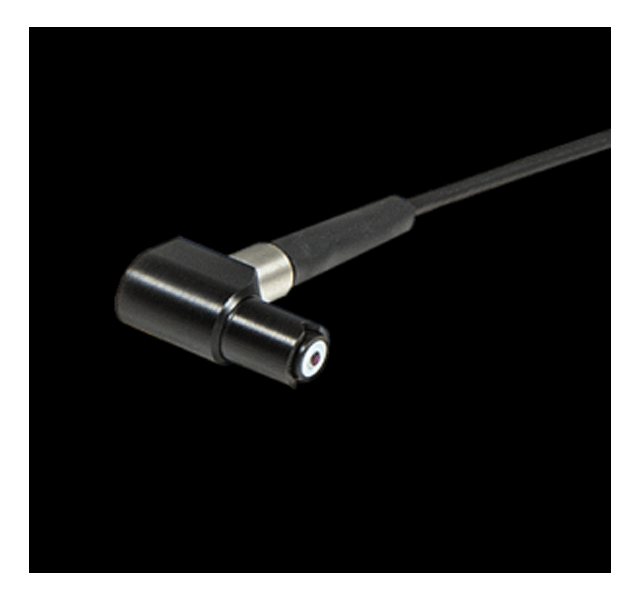

- Resolution CA202 Right Angle Probe 0–1000μm: 1µm (0.1mil).
Models
| Available in the following Non-Ferrous Probe models: |
| CS304 0–1000μm, |
| CS305 0–2000μm and |
| CA202 Right Angle 0–1000μm. |
