Full Description

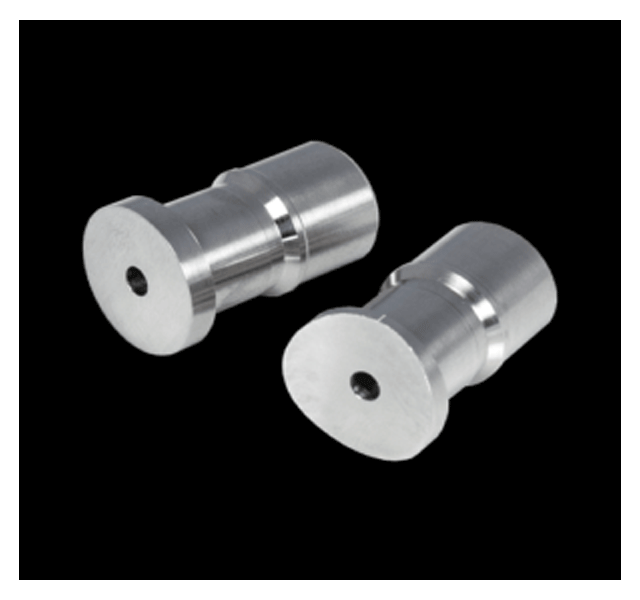

Concave Adhesion Dolly
XA201. Concave Dolly 2” (51mm)
Concave Adhesion Dolly for external pipe testing using the Adhesion Tester.
The Dollies are manufactured in stainless steel and are designed to be cleaned and reused.
Technical Specification
The Adhesion Tester can test both the external and internal surfaces of pipes. Because the load reacts internally within the dolly, curved surfaces of pipes can be easily tested.
To obtain a uniform tensile load, curved dollies machined to match the diameter under test need to be used.
Models
| Available in the following Concave Dolly sizes: |
| XA201 2″ |
| XA202 3″ |
| XA203 4″ |
| XA204 6″ |
| XA205 8″ |
| XA206 10″ |
| XA207 12″ |
| XA208 14″ |
| XA209 16″ |
| XA210 18″ |
| XA211 20″ |
| XA212 24″ |
| XA213 30″ |
| XA214 36″. |
| Select the nearest Dolly size to suit your pipe diameter. Use the Flat Dolly for a pipe radius of 42″ and over |
