Tension and Compression Force Sensors Series R03

Lab Press Equipment

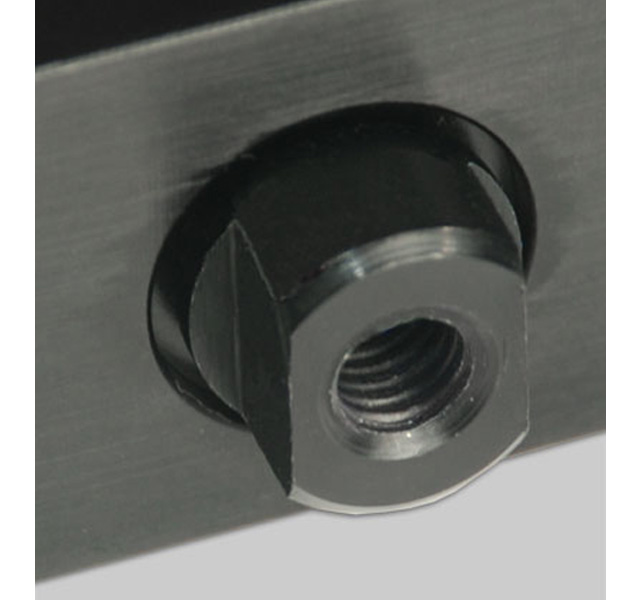

Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

Request Quote Download Datasheet

Ask a question →

Full Description

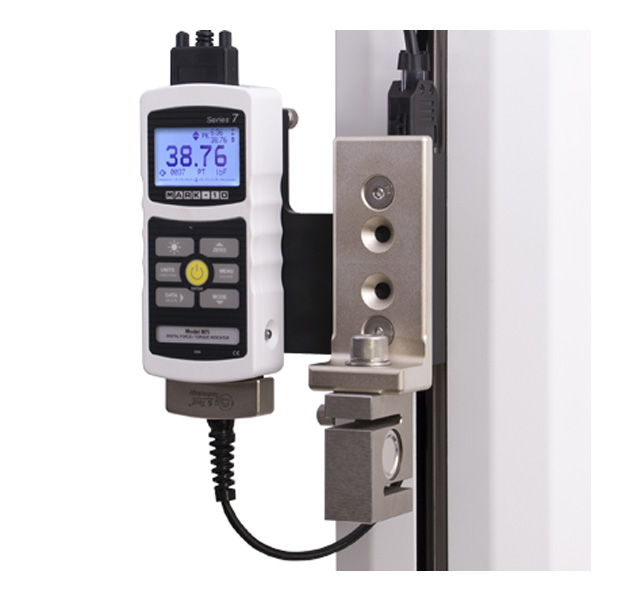

A shortened cable is available for mounting to an ESM1500LC test stand*. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.

Features

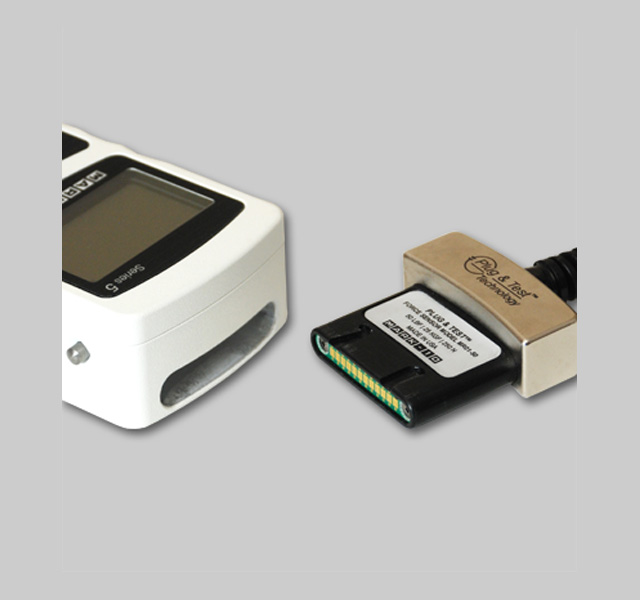

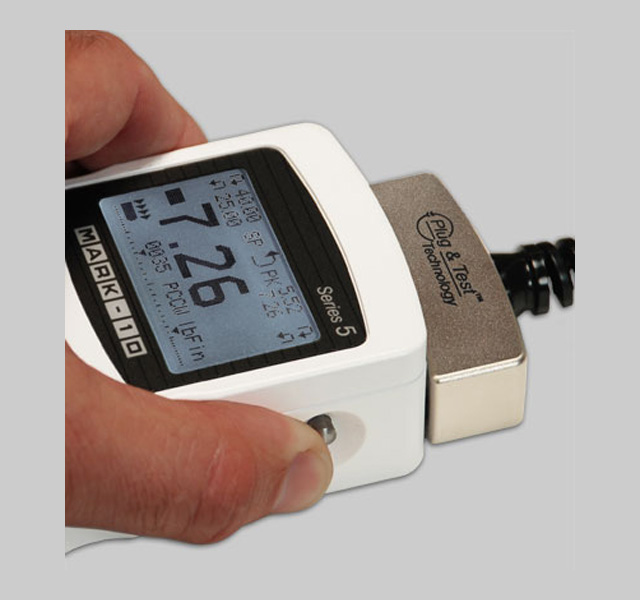

Member of the Plug & Test® family of interchangeable sensors and indicators

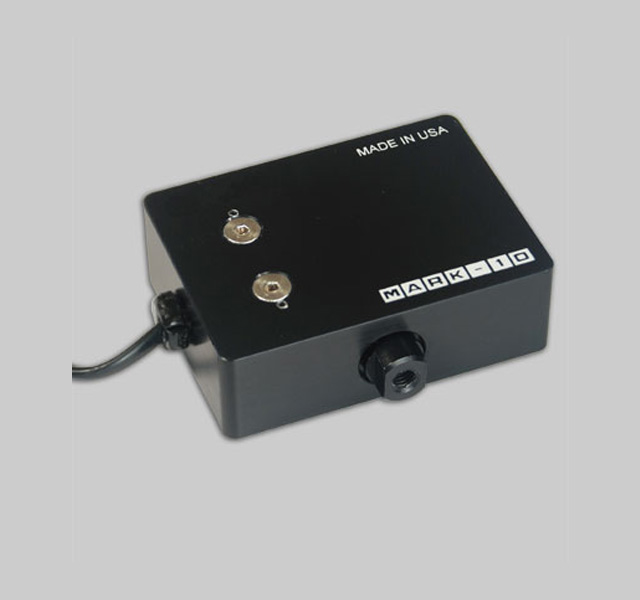

Rugged aluminum housing
Measures tensile and compressive forces
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications

Accuracy: ± 0.15% of full scale + indicator
Weight:0.4 lb [0.2 kg]
Shipping weight:3 lb [1.4 kg]
HS code:MR03 (all models): 9024900000

AC1018, AC1062: 9024800000

ECCN : EAR99
Country of origin:USA

Models

Capacity x Resolution ?
Model	lbF	ozF	gF	kgF	N	mN
MR03-025	0.25 x 0.0001	4 x 0.002	100 x 0.05	-	1 x 0.0005	1000 x 0.5
MR03-05	0.5 x 0.0002	8 x 0.005	250 x 0.1	-	2.5 x 0.001	2500 x 1
MR03-2	2 x 0.001	32 x 0.02	1000 x 0.5	1 x 0.0005	10 x 0.005	-
MR03-5	5 x 0.002	80 x 0.05	2500 x 1	2.5 x 0.001	25 x 0.01	-
MR03-10	10 x 0.005	160 x 0.1	5000 x 2	5 x 0.002	50 x 0.02	-
MR03-20	20 x 0.01	320 x 0.2	10000 x 5	10 x 0.005	100 x 0.05	-
MR03-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
MR03-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-
