Series TT02 Torque Tool Testers

Force & Torque Measurement

Full Description

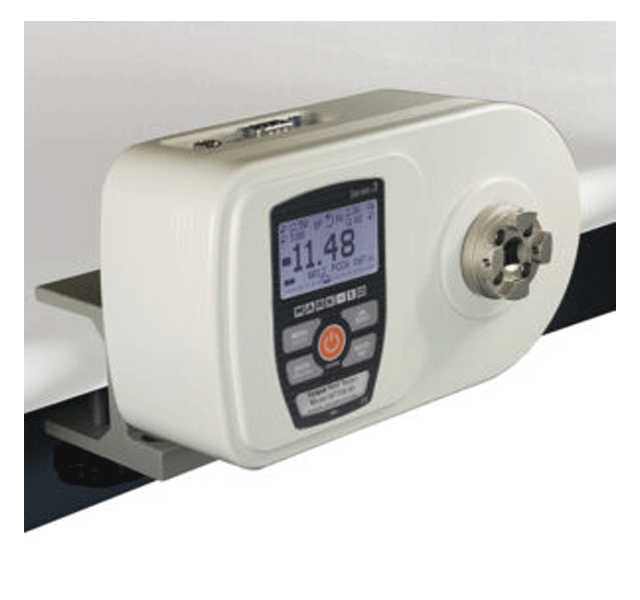

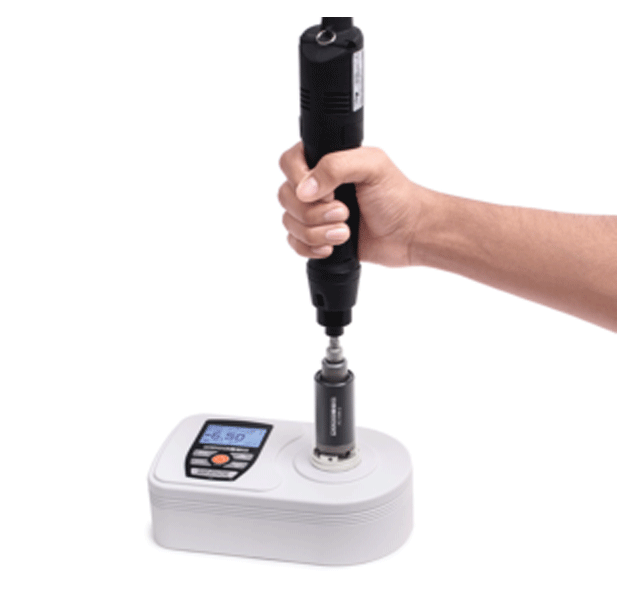

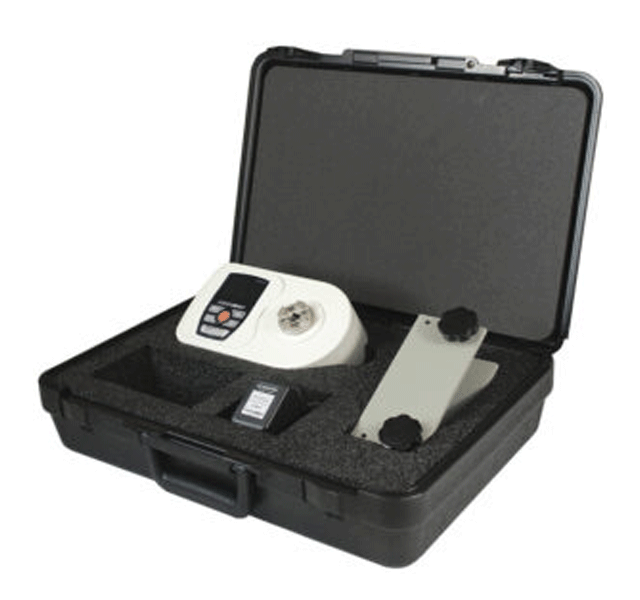

Series TT02 Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also

calculates 1st and 2nd peaks, useful for click-type tools.

A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more.

Password protection is provided to prevent unauthorized changes to settings and calibration.

Series TT02 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Features

First / second peak capture for CW and CCW directions

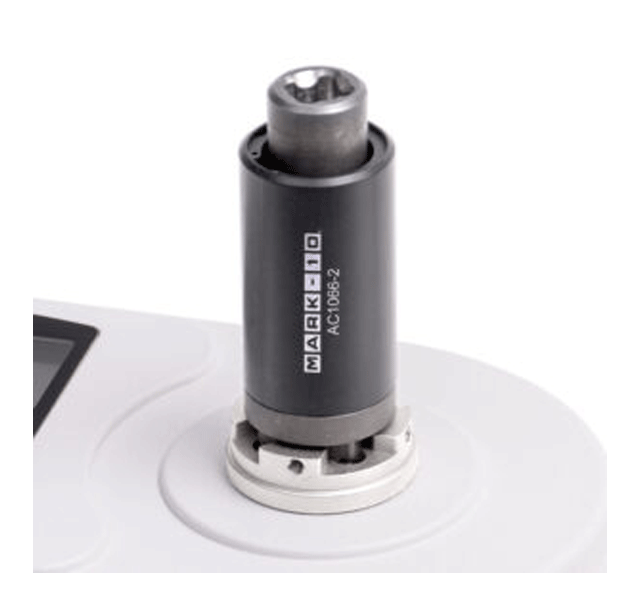

3/8” square receptacle accommodates common bits and attachments
High-speed 7,000 Hz sampling rate accurately captures peak torque values
1,000-point data memory with statistics and outputs
USB, RS-232, Mitutoyo, and analog outputs
Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
Programmable set point indicators and outputs for pass/ fail determination
Password protection prevents unauthorized changes
5 selectable units of measurement
Battery or AC operation

Specifications

Accuracy:	±0.3% of full scale
Sampling rate:	7,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	ozFin, lbFin, kgFcm, Nm, Ncm
Output:	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity, General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Configurable settings:	1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload:	150% of full scale (display shows “OVER” at 110% and above)
Weight:	5.8 lb [2.6 kg]
Shipping weight:	9 lb [4.1 kg]
Environmental requirements:	40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
MTT02 (all capacities)	9024100000
CERT ST001,2 AC1066-1,-2 15-1004 AC1111 AC1109 AC1110 AC1118 AC1030 AC1031 AC1032 AC1035	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution
Model	ozFin	lbFin	kgFcm	Ncm	Nm
MTT02-12	192 x 0.1	12 x 0.005	14 x 0.01	135 x 0.1	1.35 x 0.001
MTT02-25	400 x 0.2	25 x 0.01	28 x 0.02	290 x 0.2	2.9 x 0.002
MTT02-50	800 x 0.5	50 x 0.02	58 x 0.05	570 x 0.5	5.7 x 0.005
MTT02-100	1600 x 1	100 x 0.05	116 x 0.1	1150 x 0.5	11.5 x 0.005
