Series TT05 Cap Torque Tester

Force & Torque Measurement

Full Description

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers' rugged design and simple, intuitive operation allow for use in laboratory and production environments.

Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.

Series TT05 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Features

Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
Threaded holes are not drilled through the plate, for protection from debris and liquid

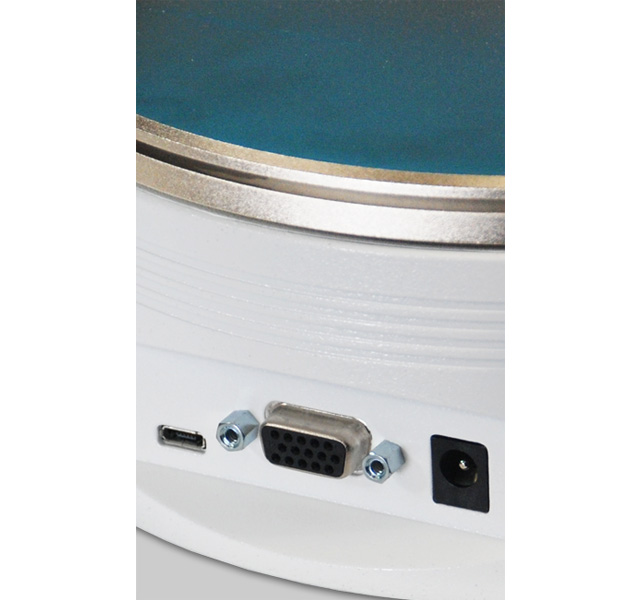

USB, RS-232, Mitutoyo, and analog outputs
Automatic output, data storage, and zeroing upon sample break helps automate testing processes

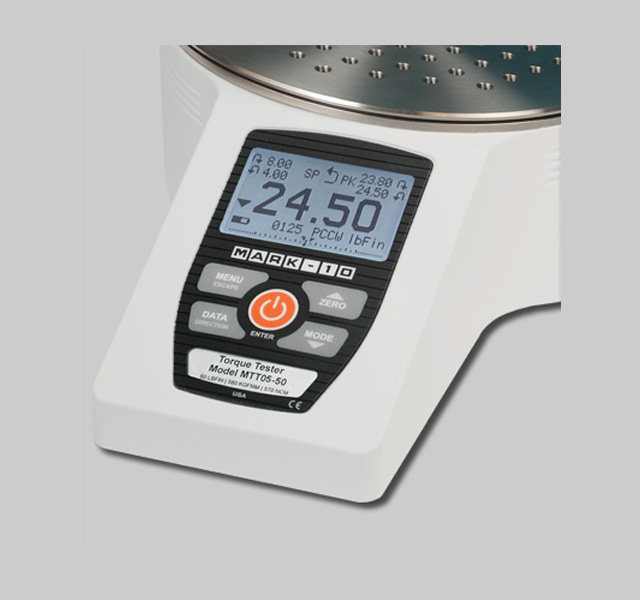

First / second peak detection for torque tool testing, bottle cap testing, and other applications
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass/ fail determination
High-speed 7,000 Hz sampling rate accurately captures peak torque values
Configurable audio alarms and key tones
5 selectable units of measurement
MESUR™ Lite data collection software included

Specification

Accuracy:	±0.3% of full scale
Sampling rate:	7,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	ozFin, lbFin, kgFcm, Nm, Ncm
Output:	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Safe overload:	150% of full scale (display shows “OVER” at 110% and above)
Weight:	9 lb [4.1 kg]
Shipping weight:	10 lb [4.5 kg]
Environmental requirements:	40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
MTT05 (all models)	9024100000
CERT CT002 15-1004 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution
Model	lbFin	ozFin	kgFmm	Ncm	Nm
MTT05-12	12 x 0.005	192 x 0.1	14 x 0.01	135 x 0.1	1.35 x 0.001
MTT05-25	25 x 0.01	400 x 0.2	28 x 0.02	290 x 0.2	2.9 x 0.002
MTT05-50	50 x 0.02	800 x 0.5	58 x 0.05	570 x 0.5	5.7 x 0.005
MTT05-100	100 x 0.05	1600 x 1	116 x 0.1	1150 x 0.5	11.5 x 0.005
