Series TT03 Digital Torque Gauges

Force & Torque Measurement

Full Description

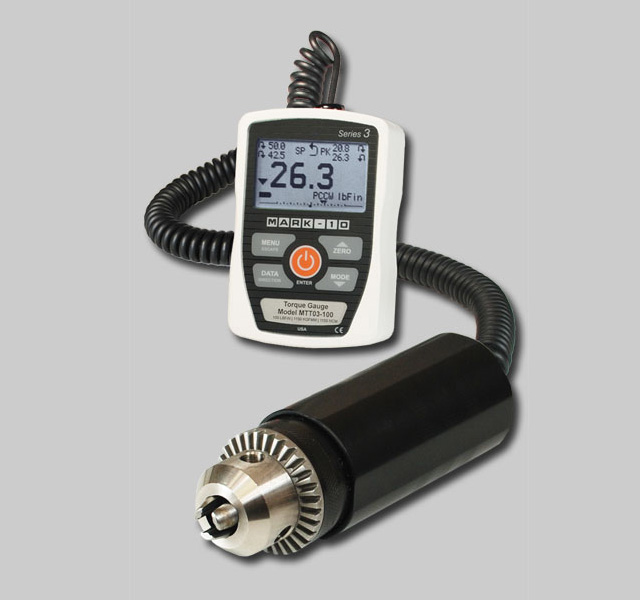

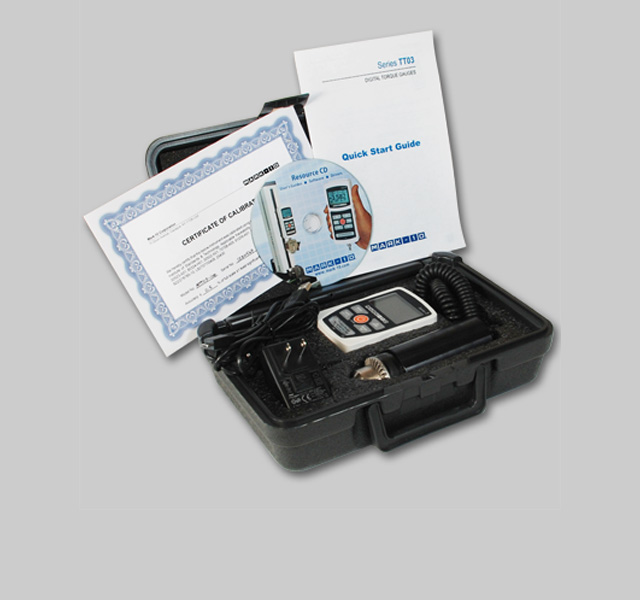

TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

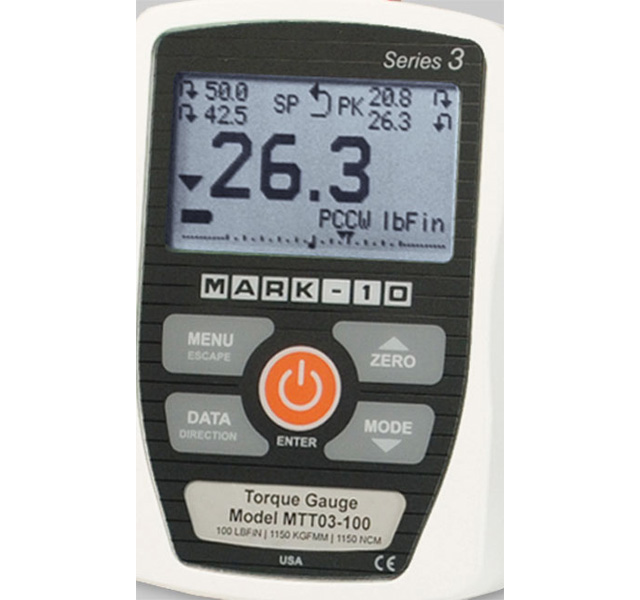

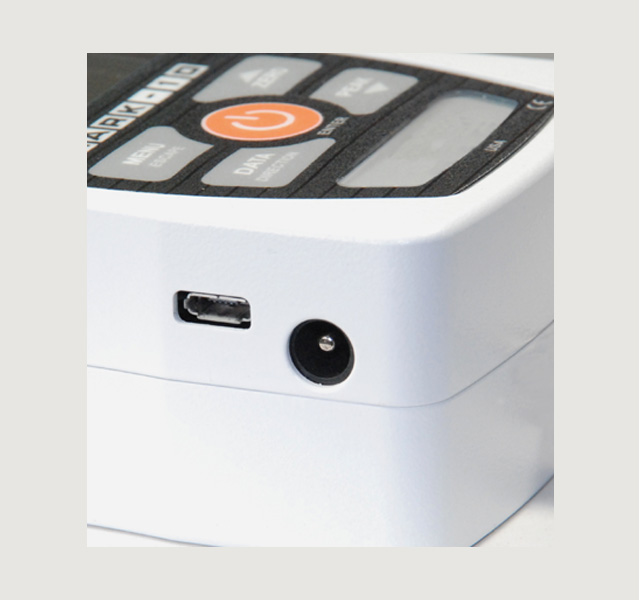

Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.

Features

Ergonomic torque sensor with Jacobs chuck
Peak torque values saved and displayed
High-speed 2,000 Hz sampling rate
USB data output of continuous or individual data points
Programmable set points with pass/fail indicators
Live load bar graphs with set point markers
Peak memory for clockwise and counter clockwise readings
Set points always displayed
Configurable audio alarms and key tones
MESUR™ Lite data collection software included
Battery or AC operation
Safe overload: 150% of capacity

Specification

Accuracy:	±0.5% of full scale
Sampling rate:	2,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:	Configurable to 115,200 baud
Safe overload:	150% of full scale (display shows “OVER” at 110% and above)
Weight:	1.8 lb [0.8 kg]
Shipping weight:	4 lb [1.8 kg]
Environmental requirements:	40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
MTT03 (all models)	9024100000
CERT 15-1004 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1123 AC1124	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution
Model	ozFin	lbFin	kgFmm	Ncm
MTT03-10Z	10 x 0.01	-	7 x 0.005	7 x 0.005
MTT03-20Z	20 x 0.02	-	14 x 0.01	14 x 0.01
MTT03-50Z	50 x 0.05	-	36 x 0.05	36 x 0.05
MTT03-12	192 x 0.2	12 x 0.01	-	135 x 0.1
MTT03-50	800 x 1	50 x 0.05	-	570 x 0.5
MTT03-100	1600 x 2	100 x 0.1	-	1150 x 1
