Tension and Compression Force Sensor Series R01
Tension and Compression Force Sensor Series R01
Full Description
Tension and Compression Force Sensor Series R01

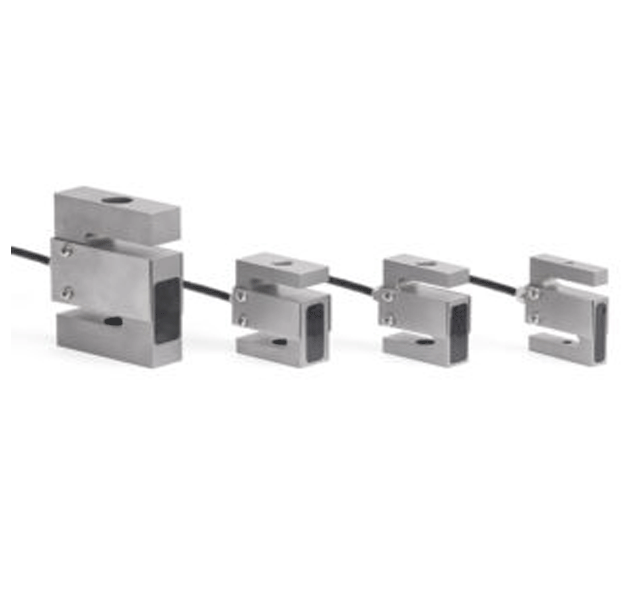

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.

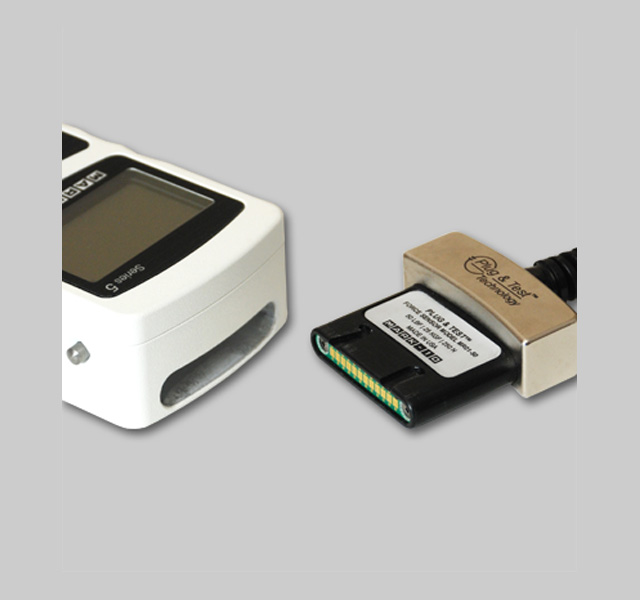

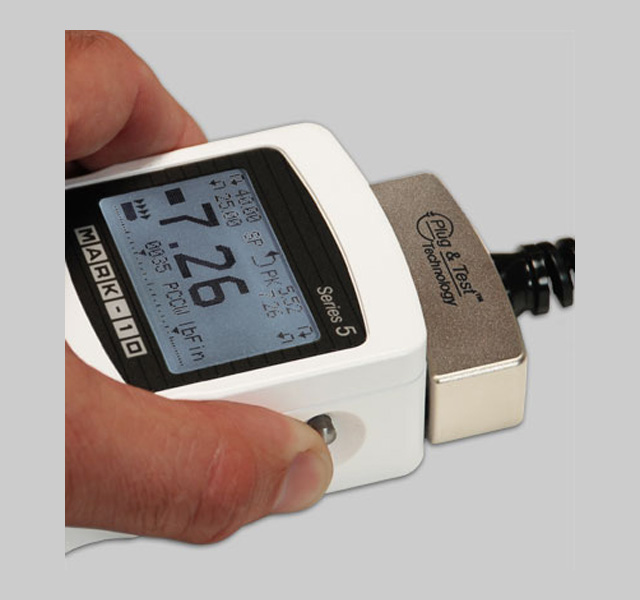

Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology.

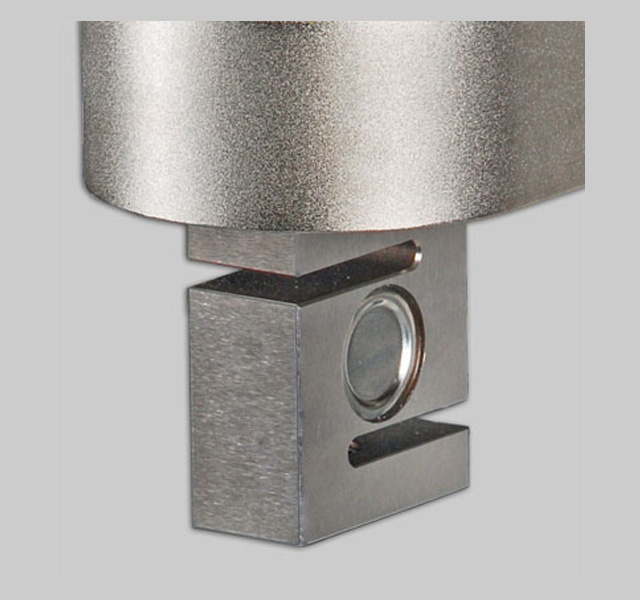

The sensors can be integrated into an existing system or mounted to a Mark-10 test stand.

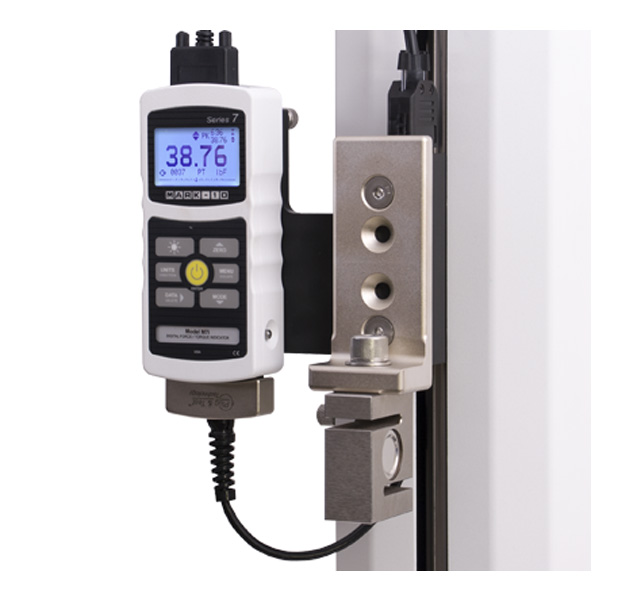

Add suffix -1 to the model number when using an R01 sensor with any of the following test stands (ex: MR01-1000-1):
- ESM1500
- ESM750
- ESM303
- ESM303H
Requires a Mark-10 indicator, available separately.
Features
- Member of the Plug & Test® family of interchangeable sensors and indicators
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specifications
- Accuracy: ± 0.15% of full scale + indicator
- Weight : MR01-50 – MR01-300: 1 lbs [0.5 kg]
MR01-500 – MR01-1000: 2 lbs [0.9 kg]
MR01-2000 – MR01-10000: 3 lbs [1.4 kg]
- Shipping weight: MR01-50 – MR01-300: 2 lbs [0.9 kg]
MR01-500 – MR01-1000: 3 lbs [1.4 kg]
MR01-2000 – MR01-10000: 4 lbs [1.8 kg]
- HS code: MR01 (all models): 9024900000
AC1018, AC1062: 9024800000
- ECCN : EAR99
- Country of origin: USA
Models
| Capacity x Resolution | ||||||
| Model | lbF | ozF | gF | kgF | N | kN |
| MR01-50 | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | - |
| MR01-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
| MR01-200 | 200 x 0.1 | 3200 x 2 | - | 100 x 0.05 | 1000 x 0.5 | 1 x 0.0005 |
| MR01-300 | 300 x 0.2 | 4800 x 5 | - | 150 x 0.1 | 1500 x 1 | 1.5 x 0.001 |
| MR01-500 | 500 x 0.2 | 8000 x 5 | - | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
| MR01-750 | 750 x 0.5 | 12000 x 10 | - | 375 x 0.2 | 3750 x 2 | 3.75 x 0.002 |
| MR01-1000 | 1000 x 0.5 | 16000 x 10 | - | 500 x 0.2 | 5000 x 2 | 5 x 0.002 |
| MR01-1500 | 1500 x 1 | 24000 x 20 | - | 750 x 0.5 | 7500 x 5 | 7.5 x 0.005 |
| MR01-2000 | 2000 x 1 | 32000 x 20 | - | 1000 x 0.5 | 10000 x 5 | 10 x 0.005 |
| MR01-5000 | 5000 x 2 | - | - | 2500 x 1 | 25000 x 10 | 25 x 0.01 |
| MR01-10000 | 10000 x 5 | - | - | 5000 x 2 | 50000 x 25 | 50 x 0.02 |
