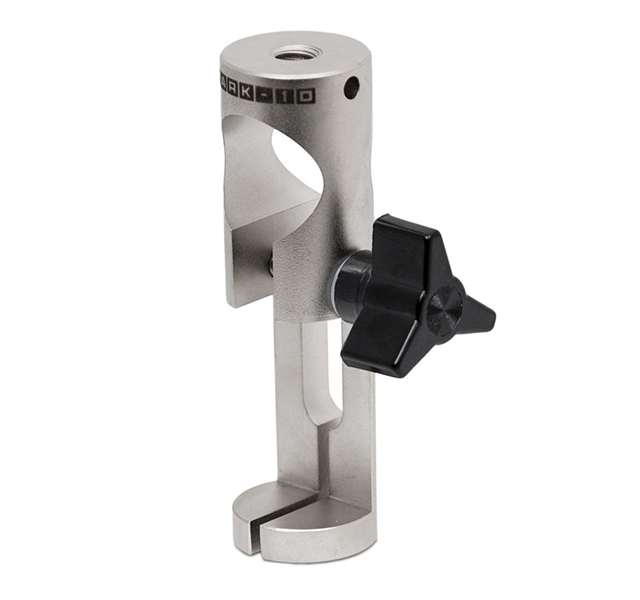

Wire Terminal Grips

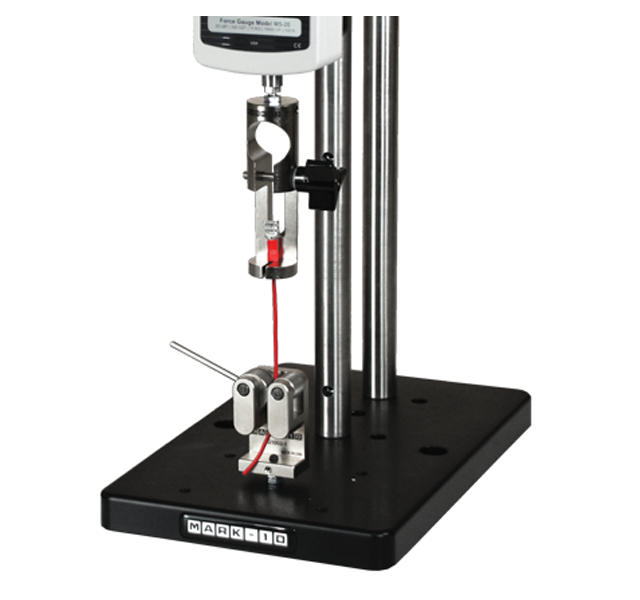

These grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Three wire diameter capacities are available. Commonly used with the G1002 dual roller grip.
Full Description
G1001, G1001-1, G1001-2
These grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Three wire diameter capacities are available. Commonly used with the G1002 dual roller grip.
Specifications
| Model | Capacity | Weight |
|---|---|---|
| G1001 | 200 lbF [1,000 N] | 0.29 lb [0.13 kg] |
| G1001-1 | ||
| G1001-2 |
Optional Equipments

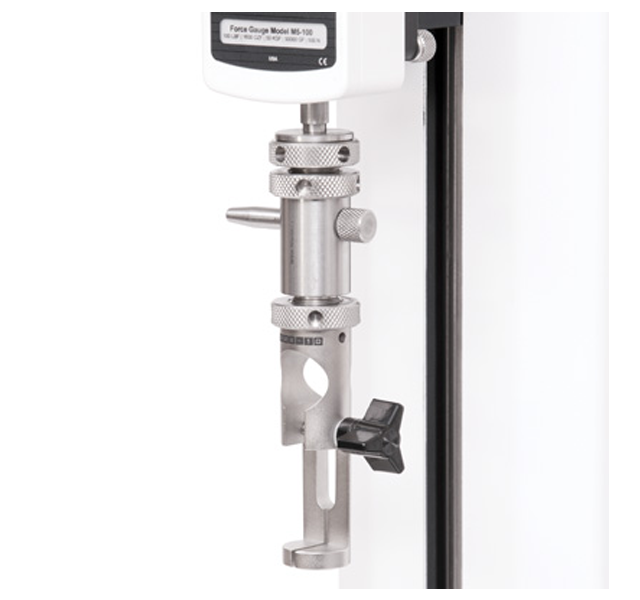

Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

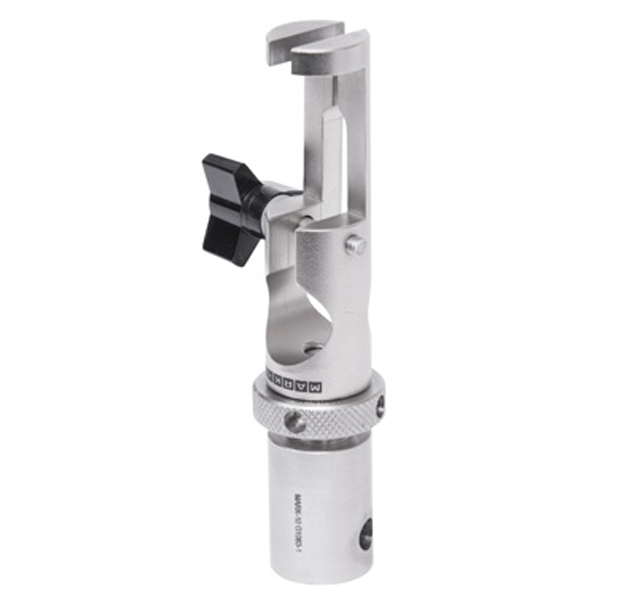

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN[MM]
| Model | ØA | B | C | D |
|---|---|---|---|---|
| G1001 | 1.00 [25.4] | 3.40 [86.4] | 0 – 0.125 [0 – 3.1] | 1.45 [36.8] |
| G1001-1 | 0.125 – 0.25 [3.1 – 6.3] | |||
| G1001-2 | 0.25 – 0.375 [6.3 – 9.5] |
