Wire Terminal Grip Turret Style_ Small

G1076

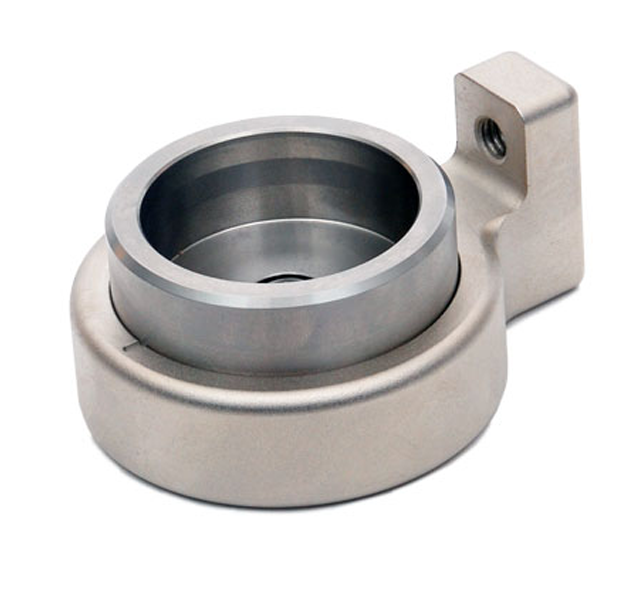

This grip is designed for wire pull testing applications. The grip secures wire terminals, cables, connectors, and other samples for wire pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove. For unique sample shapes and sizes, a blank machinable terminal fixture is also available.

Commonly used with the G1002 dual roller grip.

Features

• Rotating turret with magnetic detents snaps to the desired slot width
• Available blank insert for unique sample dimensions

Specifications

Groove sizes [IN(MM)]:

0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)

Wire diameter range:

0 – 0.25 in [6.3 mm]

Capacity:

500 lbF [2,500 N]

Weight:

1.0 lb [0.45 kg]

Optional Equipments

Blank Fixture May be machined in the field, for unique sample shapes and sizes.

Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

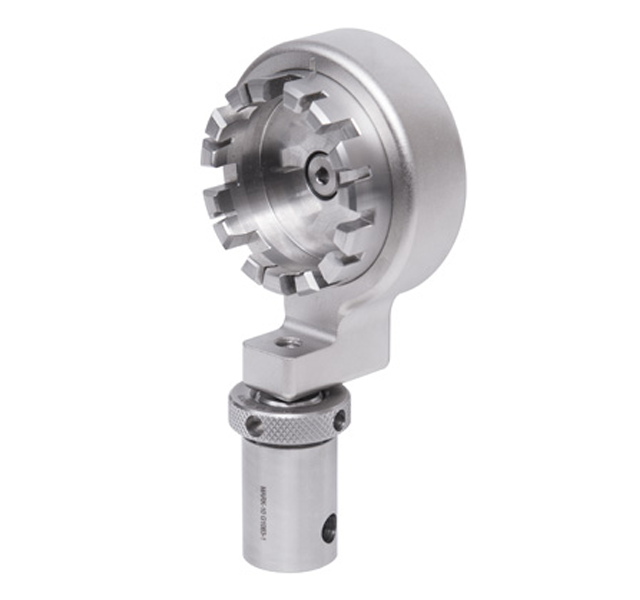

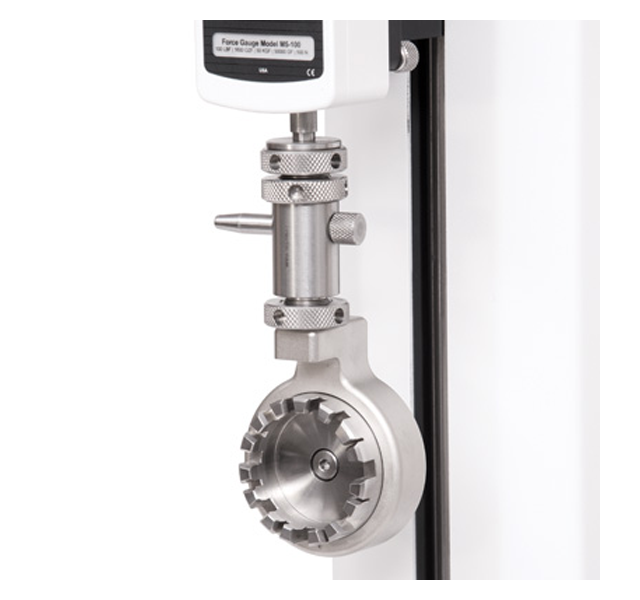

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Dimesions
