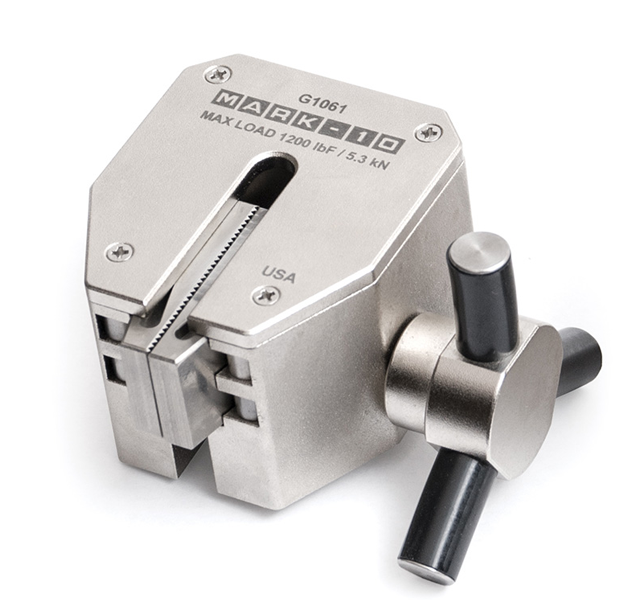

Wedge Grips

Force & Torque Measurement

Full Description

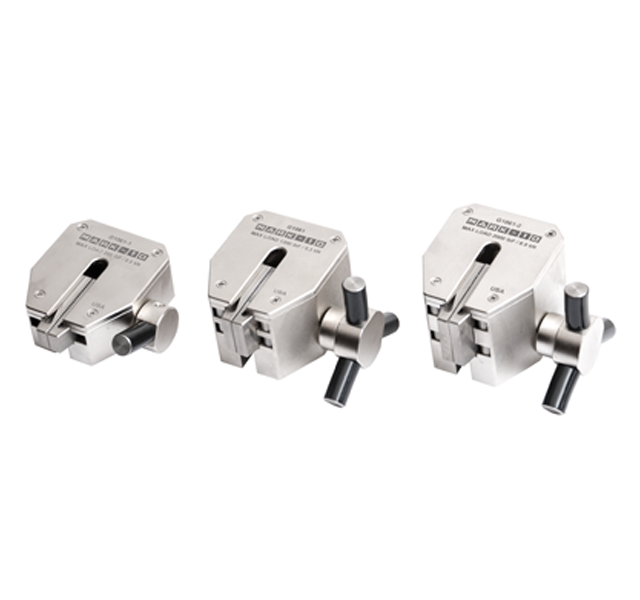

G1061, G1061-1, G1061-2, G1061-3

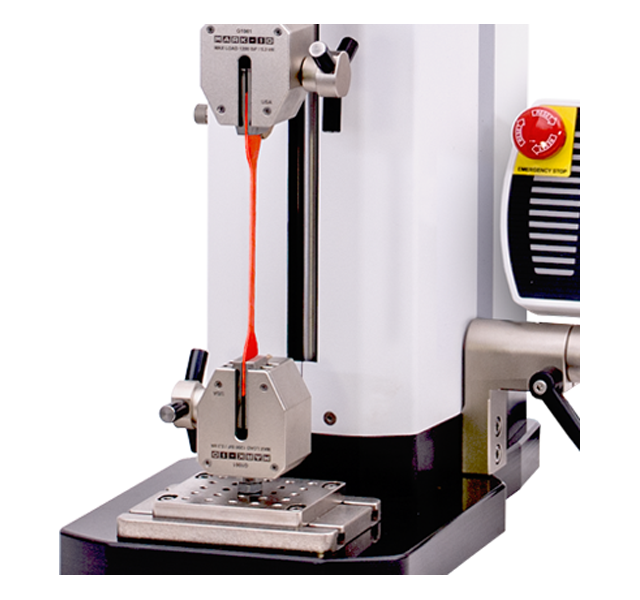

These heavy duty self-tightening grips with a capacity range of 50 lbf to 2,000 lbF (250 N to 9 kN) are ideal for tensile testing of a wide range of materials. Select from rubber or serrated, hardened steel jaw faces. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.

Features

3 capacities
Unique jam-free design
Fully enclosed
Hardened, serrated steel jaw faces, or rubber jaw faces for film and paper tensile testing applications
Thru slot for samples of unlimited width
Ergonomic handle

Specifications

Weight

G1061-1: 0.5 lb [0.23 kg]
G1061: 0.8 lb [0.36 kg]
G1061-2, G1061-3: 0.9 lb [0.41 kg]

Jaw material / hardness

G1061, G1061-1, G1061-2: 416 SS / 55 RC
G1061-3: Neoprene rubber, durometer = 70

Optional Equipment

Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

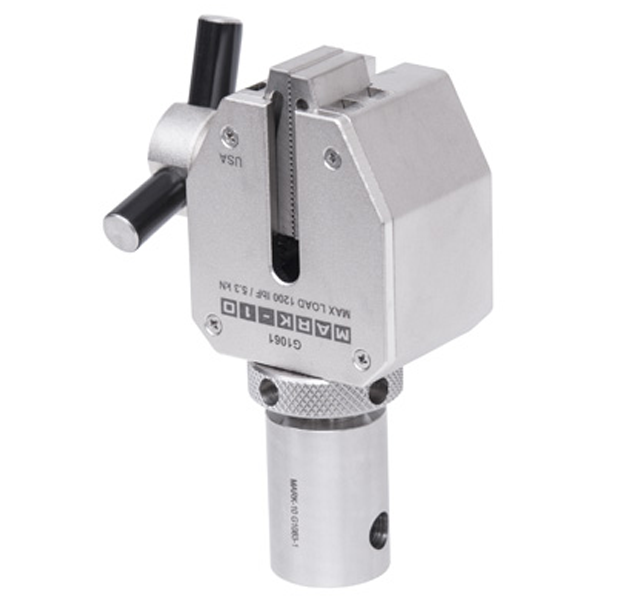

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Models

Model	Capacity lbF [kN]	A	B	C	D	E	F	G	Included Adapters
G1061-1	200 [0.9]	1.95 [49.5]	2.45 [62.2]	0.375 [9.5]	0.95 [24.1]	5/16-18 UNC	0 – 0.25 [0 – 6.4]	0.62 [15.7]	#10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts
G1061	1,200 [5.3]	1.95 [49.5]	2.45 [62.2]	0.75 [19.1]	1.50 [38.1]	5/16-18 UNC	0 – 0.25 [0 – 6.4]	1.00 [25.4]
G1061-2	2,000 [9.0]	1.95 [49.5]	2.45 [62.2]	1.00 [25.4]	1.75 [44.5]	1/2-20 UNF	0 – 0.25 [0 – 6.4]	1.13 [28.7]	5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts
G1061-3	50 [0.25]	1.95 [49.5]	2.45 [62.2]	1.00 [25.4]	1.75 [44.5]	1/2-20 UNF	0 – 0.20 [0 – 5.1]	1.13 [28.7]	5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts
