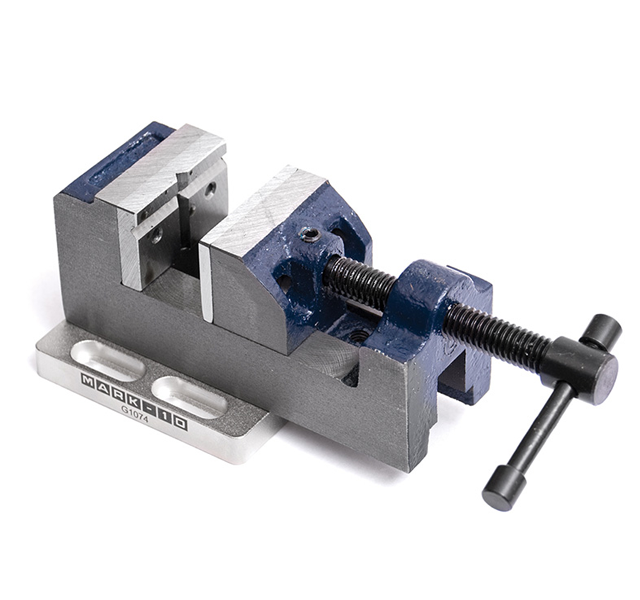

Vise Grip_ Standard
This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
Full Description
G1074
This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
The G1106 self-centering vise grip offers smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Features
- For general tension and compression testing applications

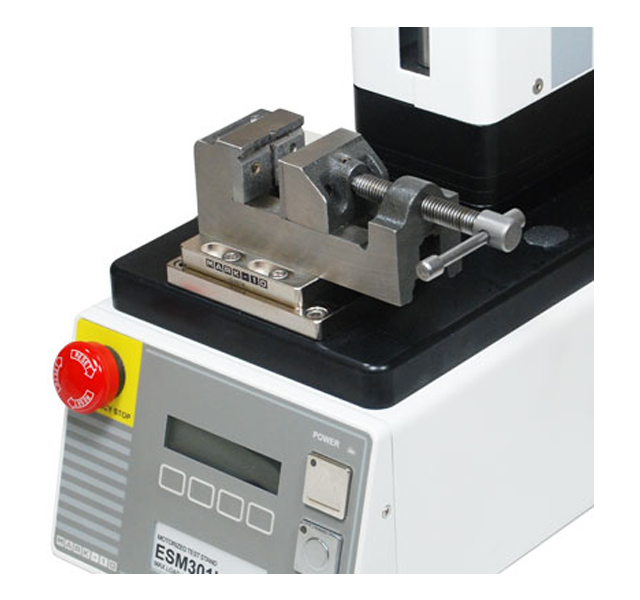

- Mounts directly to the following test frames: F105, F305, F505 , F755, and F1505 . ESM303 , ESM750 , ESM1500 , ES30 , TSC1000 , and TSF .
- Also compatible with models ES10/ES20 when ordered with optional AC1060 mounting plate. A motorized test stand is recommended.
Specifications
Maximum Tension Force:
500 lbF [2,500 N]
Weight:
2.0 lb [0.9 kg]
Dimensions
IN[MM]
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 1.00 [25.4] | 0.50 [12.7] | 1.50 [38.1] | 2.00 [50.8] | 2.50 [63.5] | 0 – 1.50 [0 – 38.1] | 1.00 [25.4] |
