Vise Grip Self_Centering
This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
Full Description
G1106
This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Features
- Removable jaws
- Self-centering design
- Ergonomic lever, smooth operation
- Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505 , F755, and F1505 test frames. ESM303 , ESM750 , ESM1500 , ES30 , TSC1000 , and TSF test stands.
- Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
Specifications
Maximum Tension Force:
500 lbF [2,500 N]
Weight:
3.00 lb [1.36 kg]
In the Box

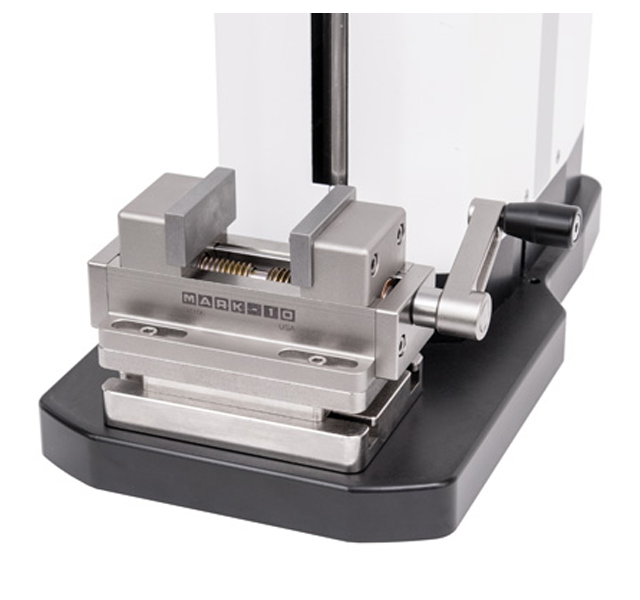

The G1106 vise is shipped as shown at left, and includes the following accessories:
(1) Vise assembly
(1) Test stand adapter plate
(8) #10-32 mounting screws
Dimensions
