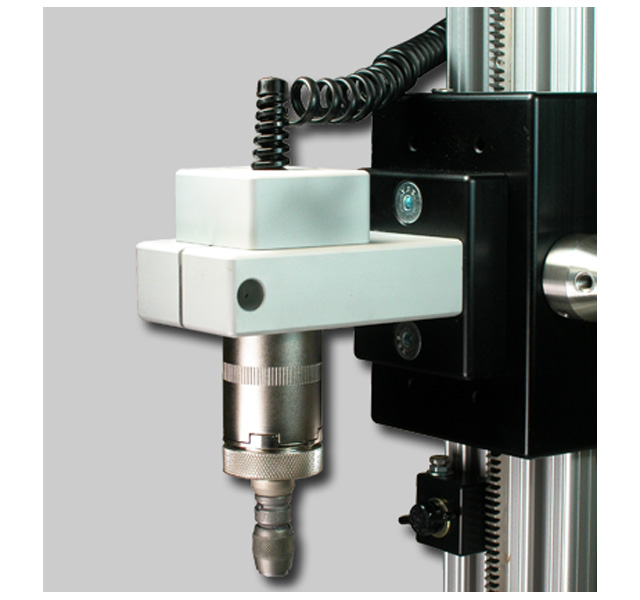

Universal Torque Sensors Series R51
A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm).
Full Description
A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm).
Features :

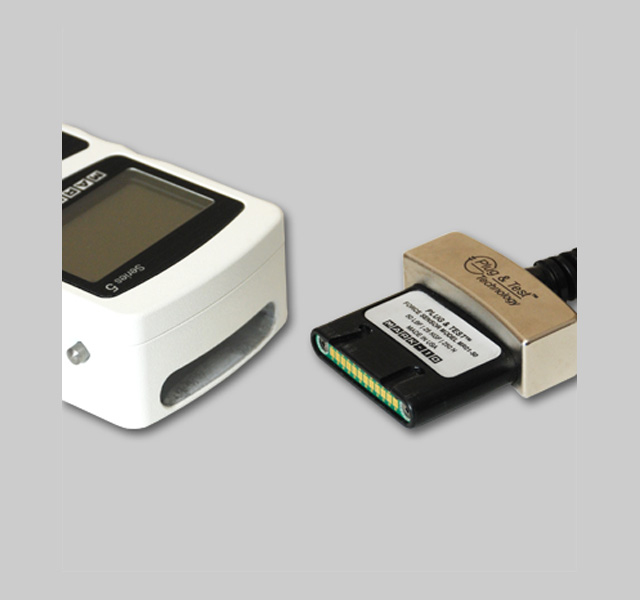

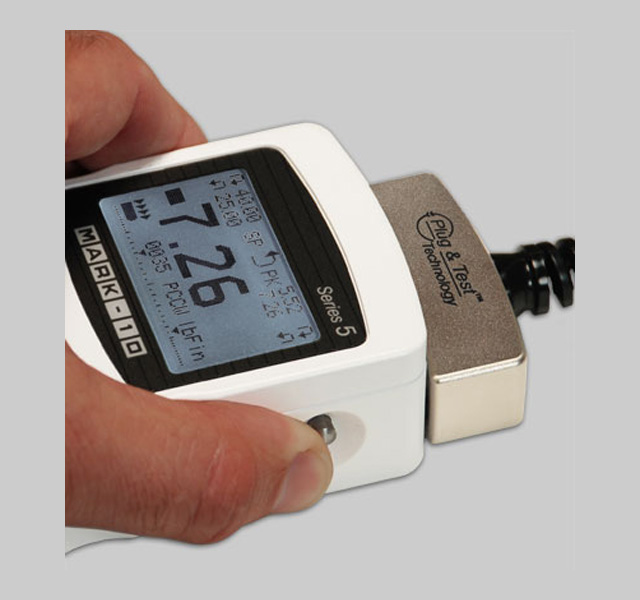

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Outstanding overload protection

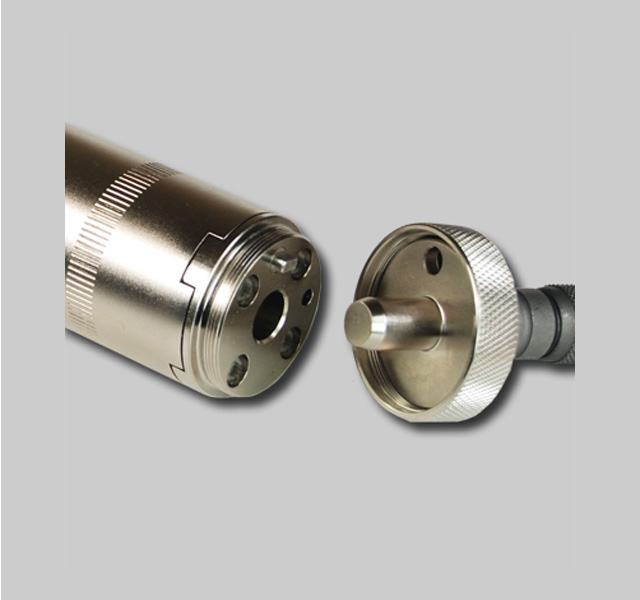

- Interchangeable chucks (order separately)
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specifications
- Accuracy: ± 0.20% of full scale + indicator
- Weight:1.4 lb [0.6 kg]
- Shipping weight: 3 lb [1.4]
- HS code:MR51 (all models): 9024900000
G1016-1,-2,-3, G1017, AC1123, AC1124: 9024800000
- ECCN : EAR99
- Country of origin:USA
Models
| Capacity x Resolution | ||||||||
| Model | lbFin | ozFin | lbFft | gFcm | kgFmm | Nmm | Ncm | Nm |
| MR51-10Z | - | 10 x 0.005 | - | 700 x 0.5 | 7 x 0.005 | 70 x 0.05 | 7 x 0.005 | - |
| MR51-20Z | - | 20 x 0.01 | - | 1400 x 1 | 14 x 0.01 | 140 x 0.1 | 14 x 0.01 | - |
| MR51-50Z | - | 50 x 0.02 | - | 3600 x 2 | 36 x 0.02 | 350 x 0.2 | 35 x 0.02 | - |
| MR51-12 | 12 x 0.005 | 192 x 0.1 | 1 x 0.0005 | - | - | - | 135 x 0.1 | 1.35 x 0.001 |
| MR51-50 | 50 x 0.02 | 800 x 0.5 | 4 x 0.002 | - | - | - | 570 x 0.5 | 5.7 x 0.005 |
| MR51-100 | 100 x 0.05 | 1600 x 1 | 8 x 0.005 | - | - | - | 1150 x 0.5 | 11.5 x 0.005 |
