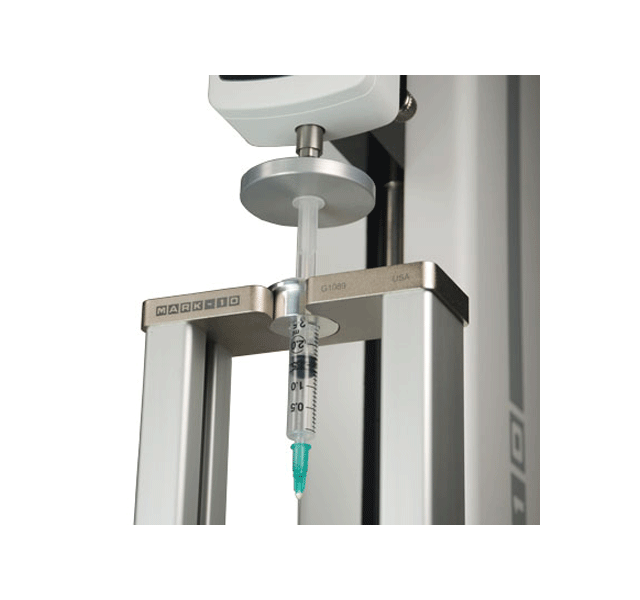

Syringe Compression Fixture G1089

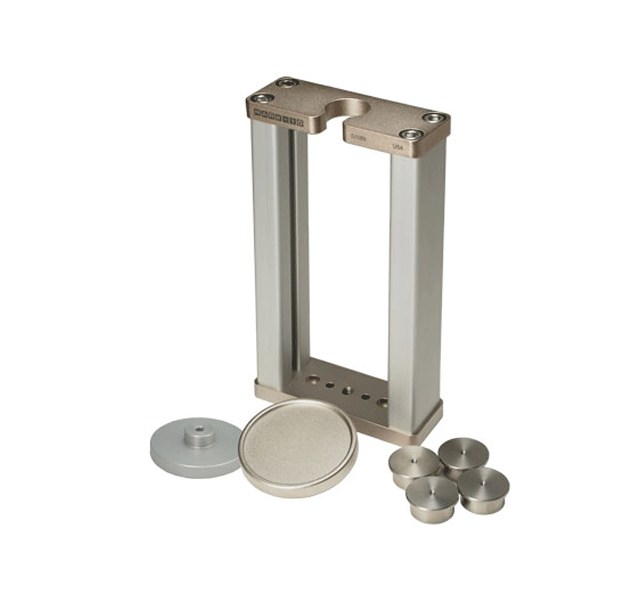

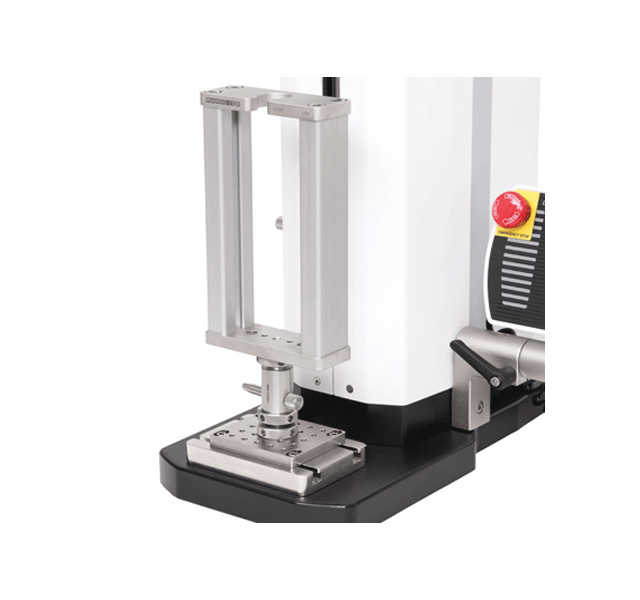

This fixture is designed to test compression force of a syringe plunger, as per ISO 7886-1 and other relevant standards. Four blank stainless steel inserts are included, and may be drilled in the field to accommodate various diameter barrels. When used with appropriate instruments, such as an ESM303 test stand and Series 7 force gauge, initial and secondary peaks may be captured, as well as average force over a period of time.

Features

• Secures a syringe assembly for plunger compression force testing
• Replaceable inserts, may be drilled in the field up to 0.85 in [21.6 mm] dia.
• Removable cup tray

Specifications

• Capacity:100 lbF [500 N]
• Material:Fixture: Nickel-plated aluminum upper and lower brackets, anodized aluminum upright supports

Cup plate: Nickel-plated aluminum

Replaceable inserts: Stainless steel

Compression plate: Anodized aluminum

• Weight:Fixture, including cup plate and one insert: 1.89 lb (0.86 kg)

Compression plate: 0.08 lb (0.04 kg)

• HS code:9024800000
• ECCN:EAR99
• Country of origin:USA
