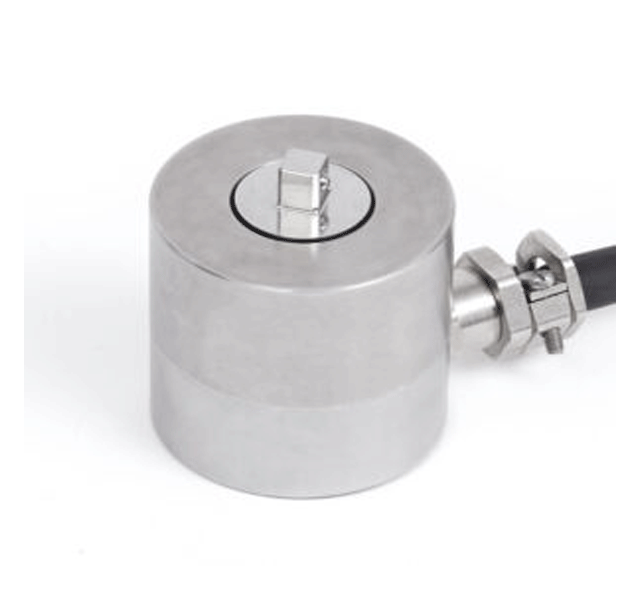

Square Drive Torque Sensors Series R55

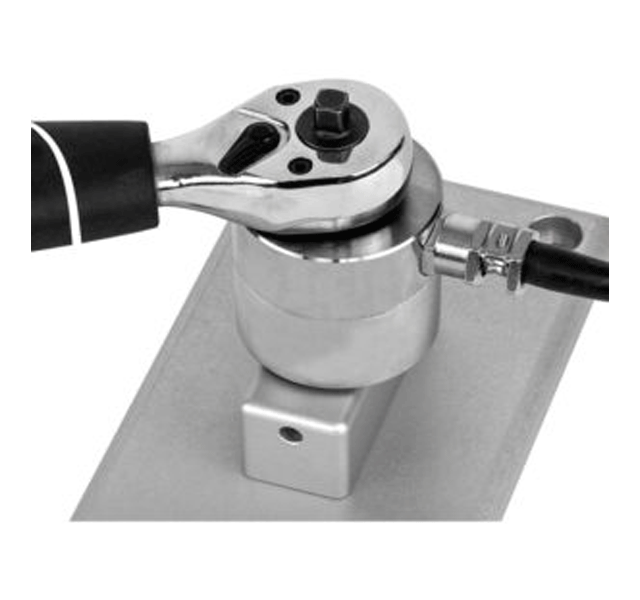

This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm).
Full Description
This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm).
Features
- Rugged cylindrical design
- Square drives on each end

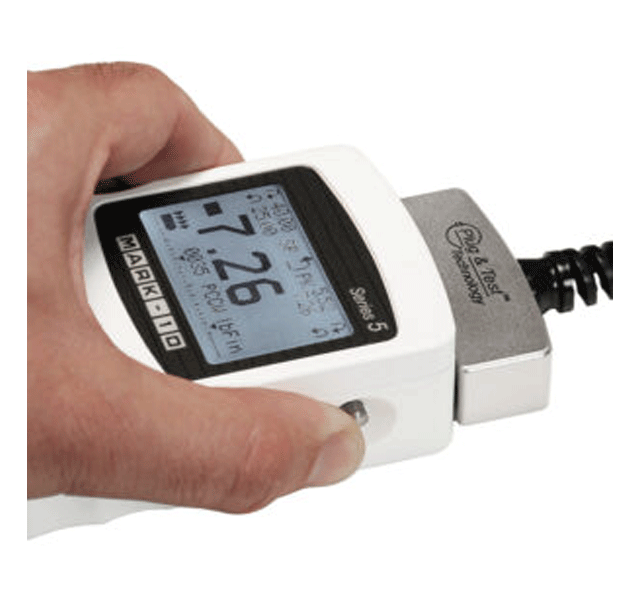

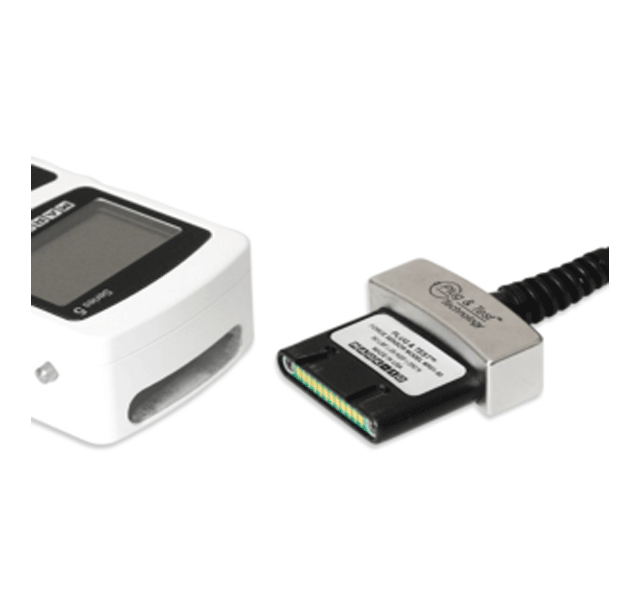

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Stainless steel and aluminum construction
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specification
- Accuracy: ± 0.6% of full scale + indicator
- Weight:MR55-20 – MR55-1000: 1.3 lb [0.6 kg]
MR55-5000: 1.9 lb [0.9 kg]
- Shipping weight: MR55-20 – MR55-1000: 3 lb [1.4 kg]
MR55-5000: 4 lb [1.8 kg]
- HS code: MR55 (all models): 9024900000
AC1010: 9024800000
- ECCN: EAR99
- Country of origin: USA
Models
| Capacity x Resolution | ||||||
| Model | lbFin | ozFin | lbFft | kgFmm | Ncm | Nm |
| MR55-20 | 20 x 0.02 | 320 x 0.2 | 1.5 x 0.002 | - | 220 x 0.2 | 2 x 0.002 |
| MR55-50 | 50 x 0.05 | 800 x 0.5 | 4 x 0.005 | - | 570 x 0.5 | 5.7 x 0.005 |
| MR55-100 | 100 x 0.1 | 1600 x 1 | 8 x 0.01 | - | 1150 x 1 | 11.5 x 0.01 |
| MR55-200 | 200 x 0.2 | - | 16 x 0.02 | 2300 x 2 | 2200 x 2 | 22 x 0.02 |
| MR55-400 | 400 x 0.5 | - | 32 x 0.05 | 4600 x 5 | 4500 x 5 | 45 x 0.05 |
| MR55-1000 | 1000 x 1 | - | 80 x 0.1 | 11500 x 10 | 11000 x 10 | 110 x 0.1 |
| MR55-5000 | 5000 x 5 | - | 400 x 0.5 | 55 x 0.05 kgFm | 55000 x 50 | 550 x 0.5 |
