Series 7 Professional Digital Force Gauges

Force & Torque Measurement

Full Description

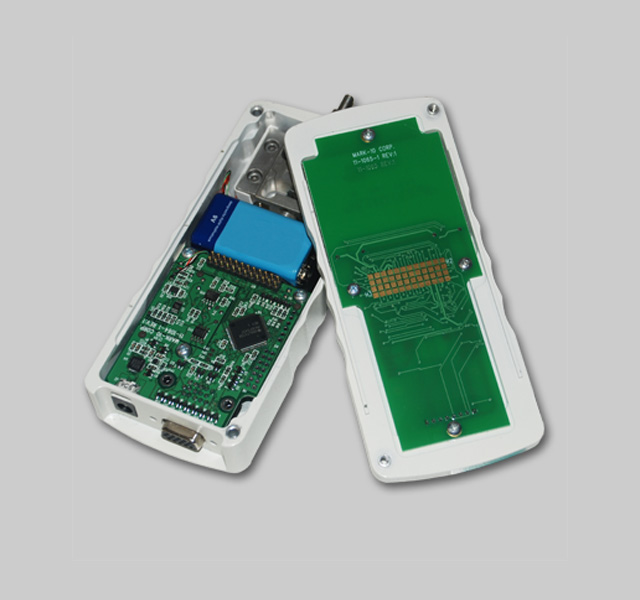

Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection.

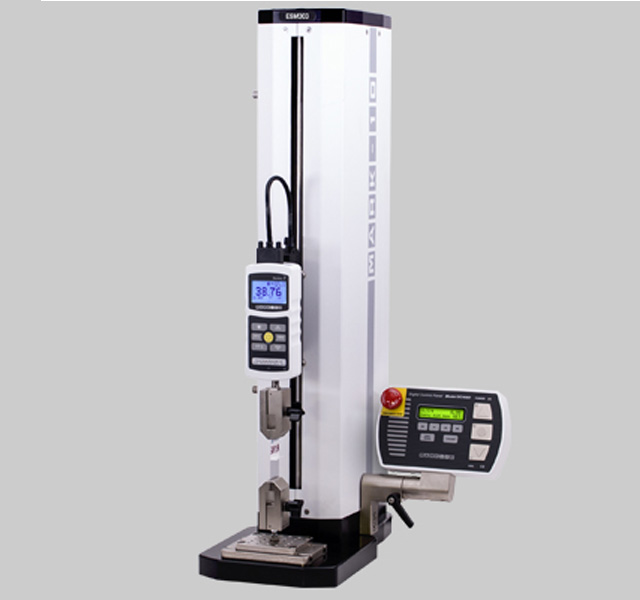

Series 7 force gauges are directly compatible with Mark-10 test stands, including the ESM303, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.

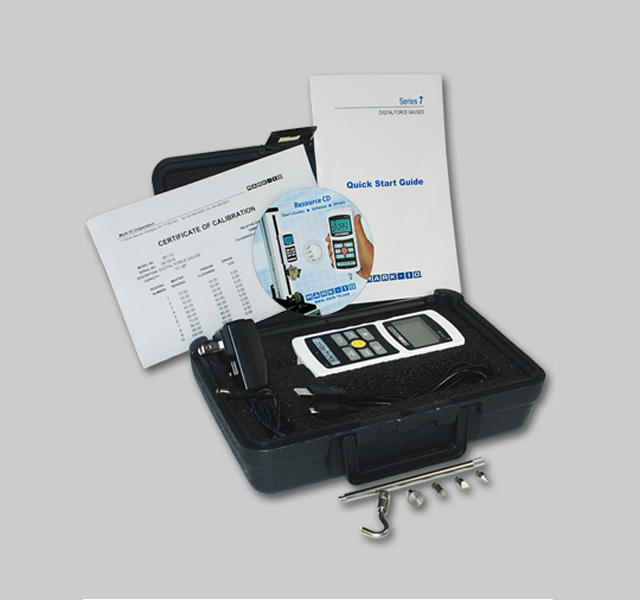

The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

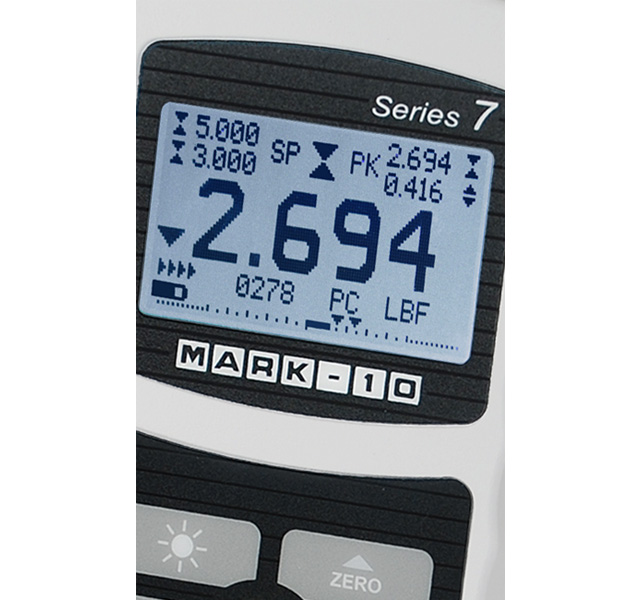

Features

High-speed 14,000 Hz sampling rate
High-speed 500 Hz data output rate
Continuous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5,000 data points, downloadable to a PC

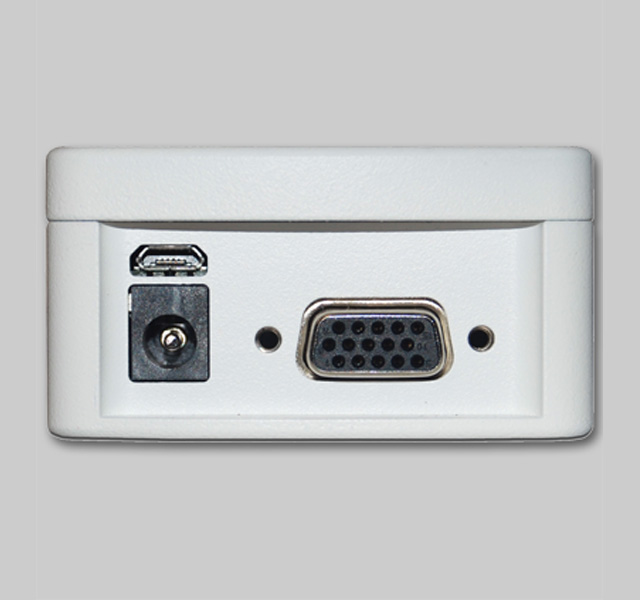

USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement on the ESM303 test stand
1st / 2nd peak detection
Automatic output / data storage / zeroing upon various event completions
5 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
Programmable footswitch command string
Programmable set points, with indicators and outputs
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Password protection, configurable for individual keys and calibration

Technical Specification

Accuracy:	±0.1% of full scale
Sampling rate:	14,000 Hz
Data output rate:	Up to 500 Hz*
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs:	USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. General purpose: T
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Weight:	M7-012 - M7-100: 1 lb [0.5 kg] M7-200 - M7-500: 1.2 lb [0.5 kg]
Shipping weight:	M7-012 - M7-100: 3.0 lb [1.4 kg] M7-200 - M7-500: 3.2 lb [1.5 kg]
Environmental requirements:	40 - 100°F, max. 96% humidity, non-condensing
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
M7 (all capacities)	9024100000
15-1004 AC1109 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1051 AC1052	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution ?
Model	lbF	ozF	kgF	gF	N	kN	mN
M7-012	0.12 x 0.00002	2 x 0.0005	-	50 x 0.01	0.5 x 0.0001	-	500 x 0.1
M7-025	0.25 x 0.00005	4 x 0.001	-	100 x 0.02	1 x 0.0002	-	1000 x 0.2
M7-05	0.5 x 0.0001	8 x 0.002	-	250 x 0.05	2.5 x 0.0005	-	2500 x 0.5
M7-2	2 x 0.0005	32 x 0.01	1 x 0.0002	1000 x 0.2	10 x 0.002	-	-
M7-5	5 x 0.001	80 x 0.02	2.5 x 0.0005	2500 x 0.5	25 x 0.005	-	-
M7-10	10 x 0.002	160 x 0.05	5 x 0.001	5000 x 1	50 x 0.01	-	-
M7-20	20 x 0.005	320 x 0.1	10 x 0.002	10000 x 2	100 x 0.02	-	-
M7-50	50 x 0.01	800 x 0.2	25 x 0.005	25000 x 5	250 x 0.05	-	-
M7-100	100 x 0.02	1600 x 0.5	50 x 0.01	50000 x 10	500 x 0.1	-	-
M7-200	200 x 0.05	3200 x 1	100 x 0.02	-	1000 x 0.2	1 x 0.0002	-
M7-500	500 x 0.1	8000 x 2	250 x 0.05	-	2500 x 0.5	2.5 x 0.0005	-
