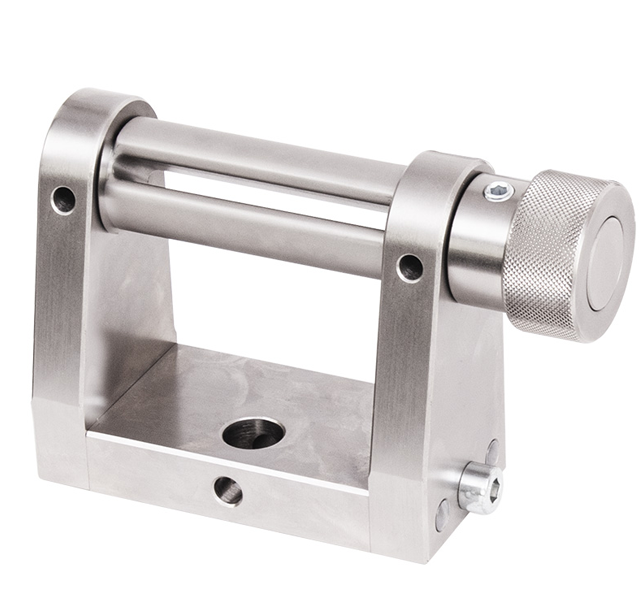

Ribbon Wrap Grip
The G1111 secures textile webbing, tape, and braided materials typically used in construction, shipping, and other industrial uses. The grip is ideal for conformance to ASTM D6775 and related standards, accommodating a wide range of sample widths and forces up to 2,000 lbF (10 kN).
Full Description
G1111
The G1111 secures textile webbing, tape, and braided materials typically used in construction, shipping, and other industrial uses. The grip is ideal for conformance to ASTM D6775 and related standards, accommodating a wide range of sample widths and forces up to 2,000 lbF (10 kN).
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Features

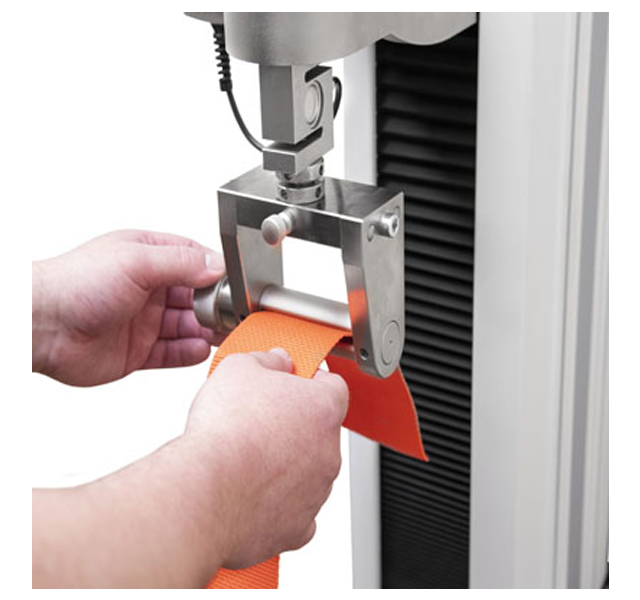

- Secures webbing, tape, and braided materials for pull testing, as per ASTM D6775
Specifications
Capacity:
2,000 lbF [10 kN]
Weight:
5.2 lb [2.4 kg]
Shipping weight:
7 lb [3.2 kg]
In the Box

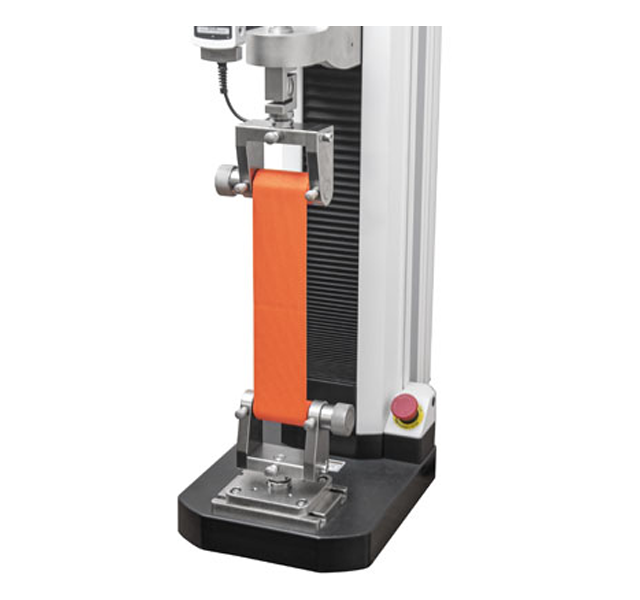

The G1111 ribbon wrap grip is shipped as shown at left, and includes the following accessories:
(1) Fixture assembly
(1) Eye end anchor pin
(2) Anchor pin for sample drum
Models
| IN [MM] |
