Push Pull Sensors Series R05

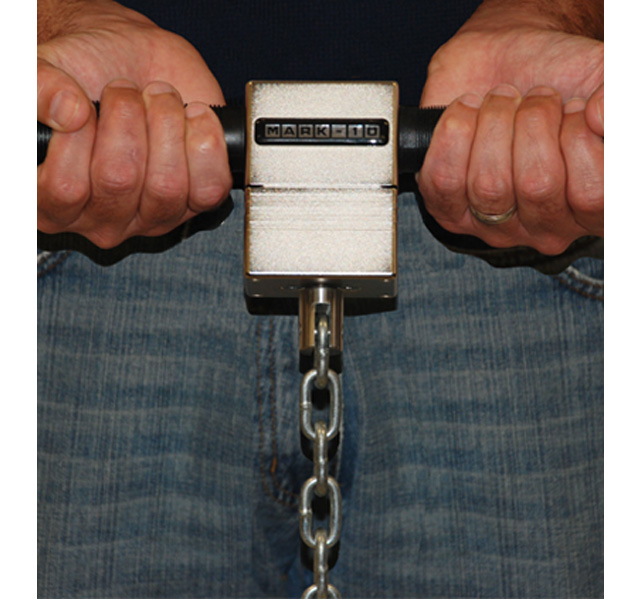

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments.
Full Description
Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N].
Features

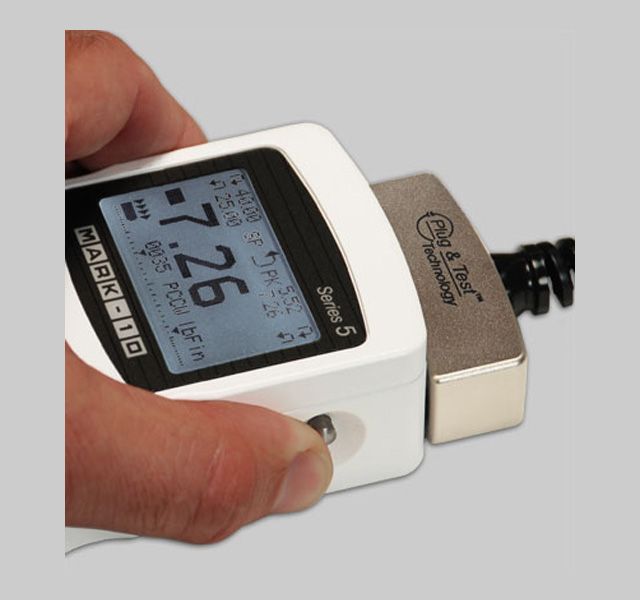

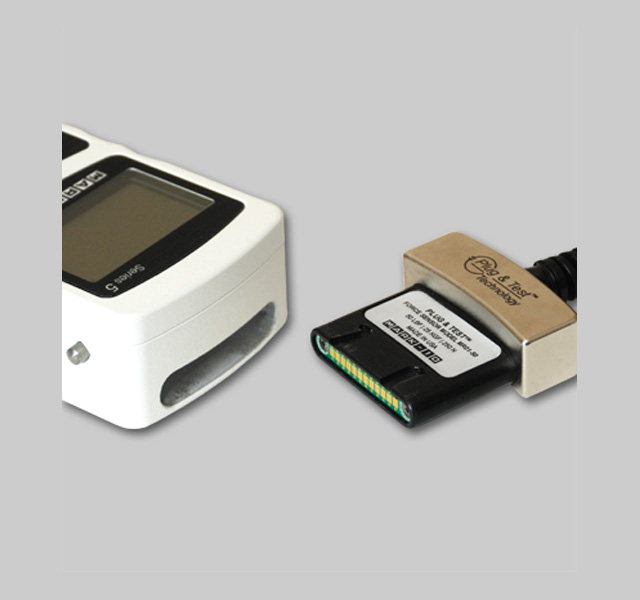

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Rugged aluminum housing
- Measures push and pull force
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specifications
- Accuracy: ± 0.15% of full scale + indicator
- Weight:2 lb [0.9 kg]
- Shipping weight:4 lb [1.8 kg]
- HS code:MR05-500: 9024900000
- ECCN: EAR99
- Country of origin:USA
Models
| Capacity x Resolution ? | |||||
| Model | lbF | ozF | kgF | N | kN |
| MR05-500 | 500 x 0.2 | 8000 x 5 | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
