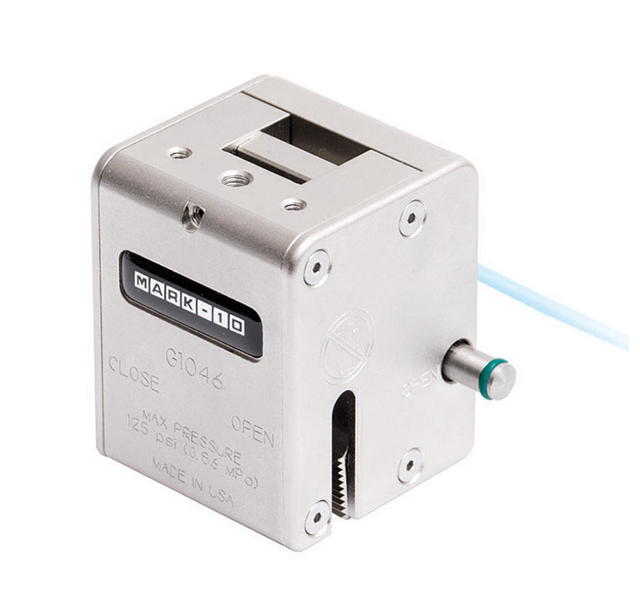

Pneumatic Peel Test Grip
Tensile testing of film, paper, and other thin materials
Full Description
G1046
- Tensile testing of film, paper, and other thin materials
- Conforms to ASTM F88, D1876
- Max. sample width: 1.57 in (39.9 mm)
- 100 lbF (500 N) capacity
This fully enclosed, air-powered grip is ideal for seal strength testing of packaging, elongation testing of various materials, and other tensile testing requirements, per ASTM F88 / D1876. Serrated interlocking jaws effectively grip samples for up to 100 lbF (500 N) of force.

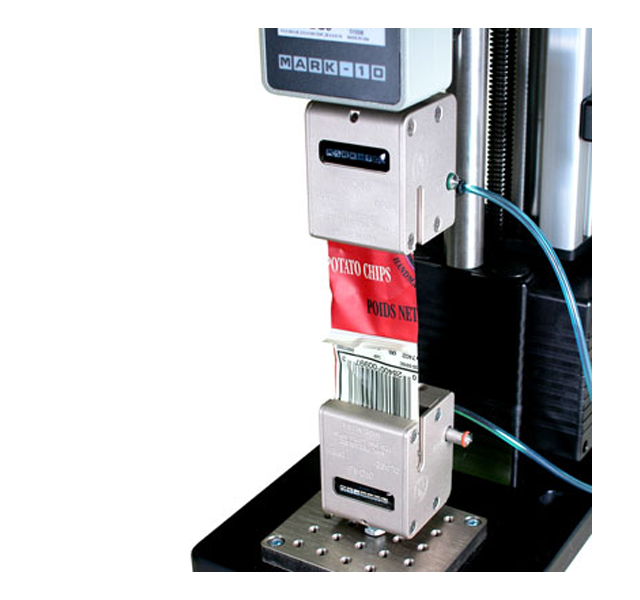

The grip features an industry-unique integrated open/close valve for quick sample engagement and disengagement, an added benefit for repetitive applications. An air connection kit, consisting of air tubing and fittings, is available as an option. Use a pair of these pneumatic grips with a force gauge and a test stand to create a complete testing system.
Features
- Integrated open/close valve
- Fully enclosed design for safety
Specifications
Capacity:
100 lbF @ 100 PSI [500 N @ 0.86 MPa]
Weight:
0.58 lb [0.26 kg]
Max. Pressure:
125 PSI [0.86 MPa]
Air input thread:
#10-32 UNF
Optional Equipments

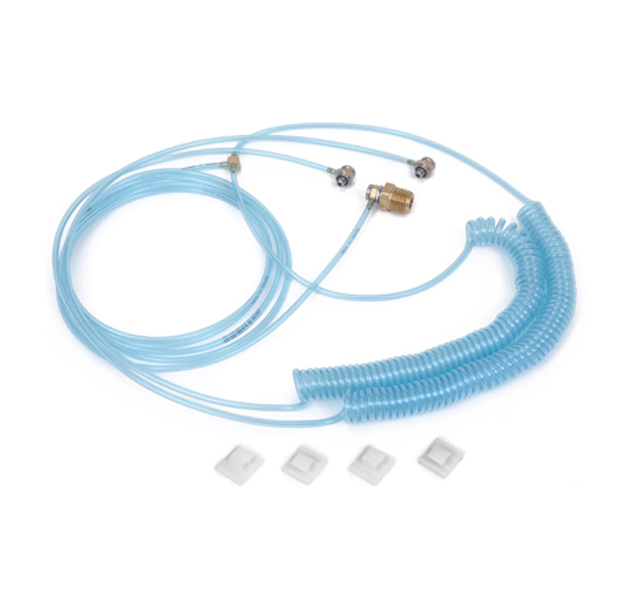

Air connection kit Consists of a complete set of components needed to connect two pneumatic grips: Coiled tubing, 1/8″ OD, 1/16″ ID, 8″ retracted length (qty. 2) Y-splitter (qty. 1) Straight tubing, 1/8″ OD, 1/16″ ID, 5′ length (qty. 1) Elbow fitting, tubing termination (qty. 2) Elbow fitting, tubin
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

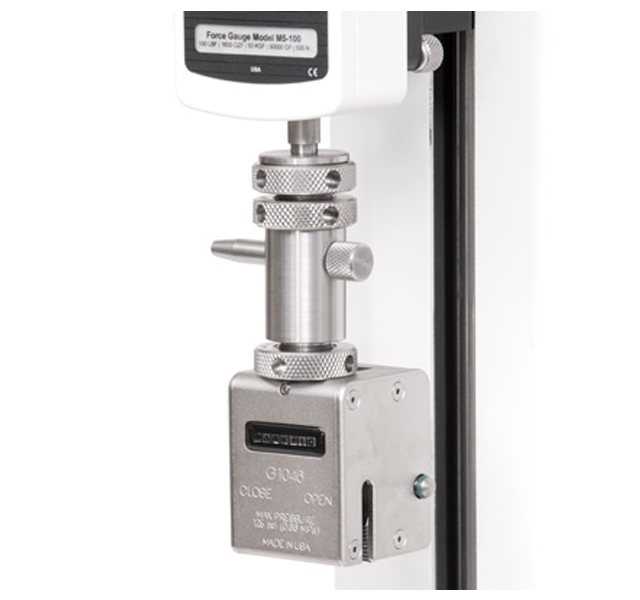

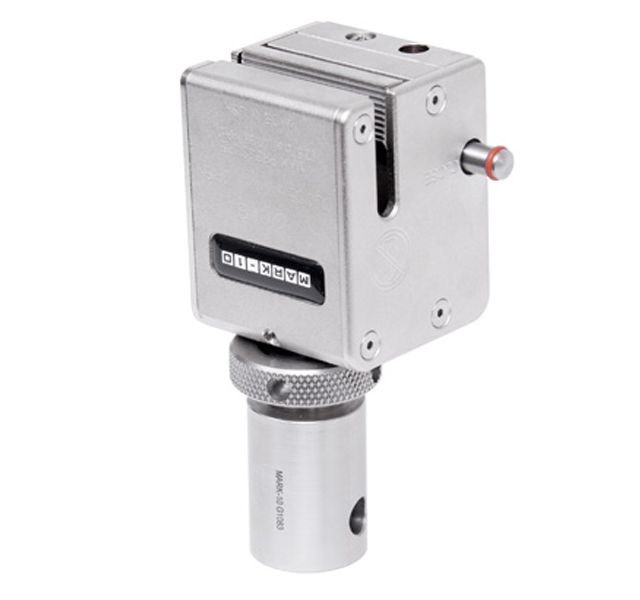

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Maintenance kit* Consists of: A . Rubber membrane (qty. 5) B . Cotton swab (qty. 12) C . Alcohol wipe (qty. 5) D . Wrench set
Models
| Dimension |
| A: 0 – 0.13 IN [0 – 3.3 MM] |
| A: 0 – 0.13 IN [0 – 3.3 MM] |
