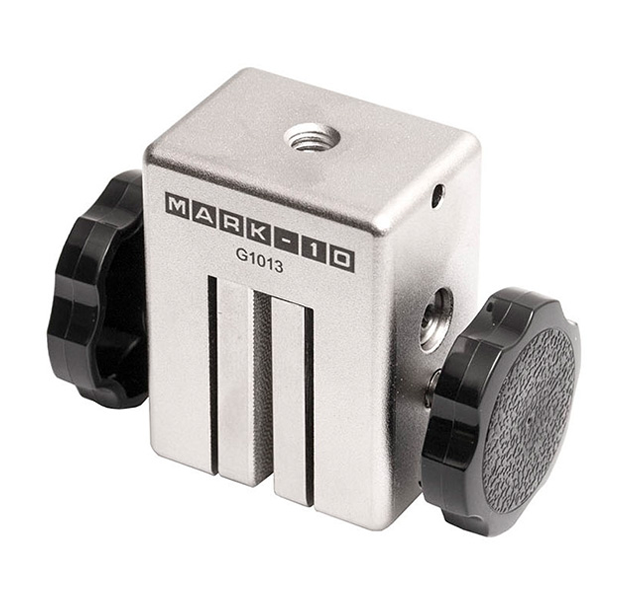

Parallel Jaw Grip_ Small

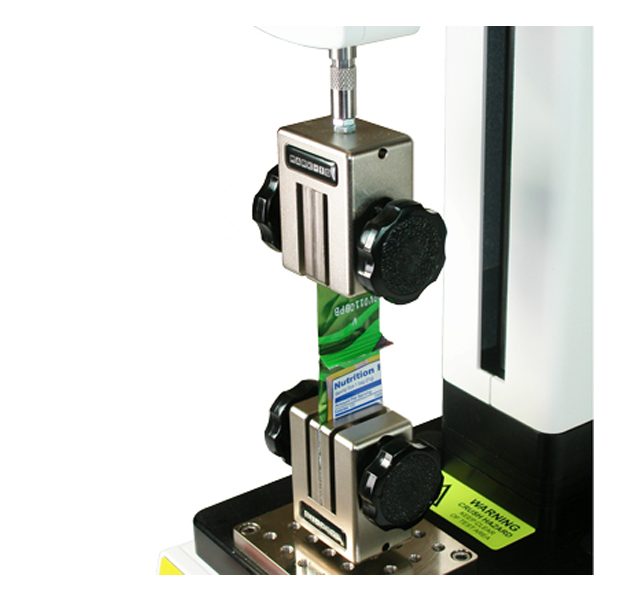

This grip is ideal for general pull testing applications. Manually tightened serrated jaws may be individually adjusted for samples up to 0.25″ (6.3mm) thick.
Full Description
G1013
This grip is ideal for general pull testing applications. Manually tightened serrated jaws may be individually adjusted for samples up to 0.25″ (6.3mm) thick.
Features
- Individually adjustable, serrated jaws
- Rugged and compact
Specifications
Capacity:
200 lbF [1,000 N]
Weight:
0.75 lb [0.29 kg]
Optional Equipment

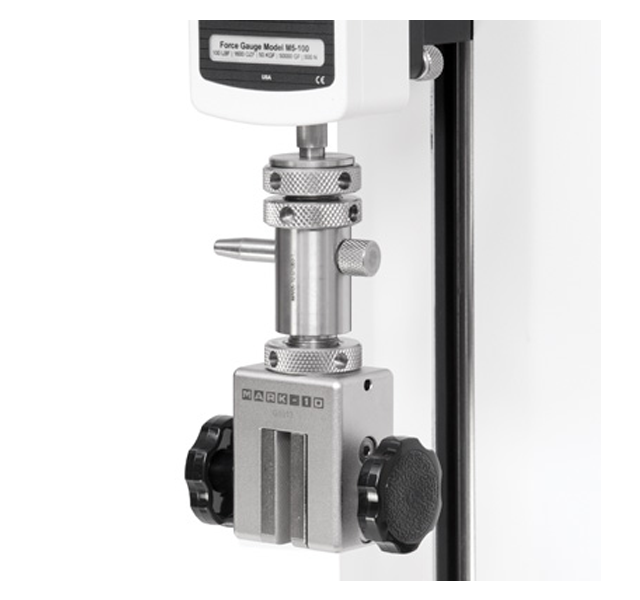

Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

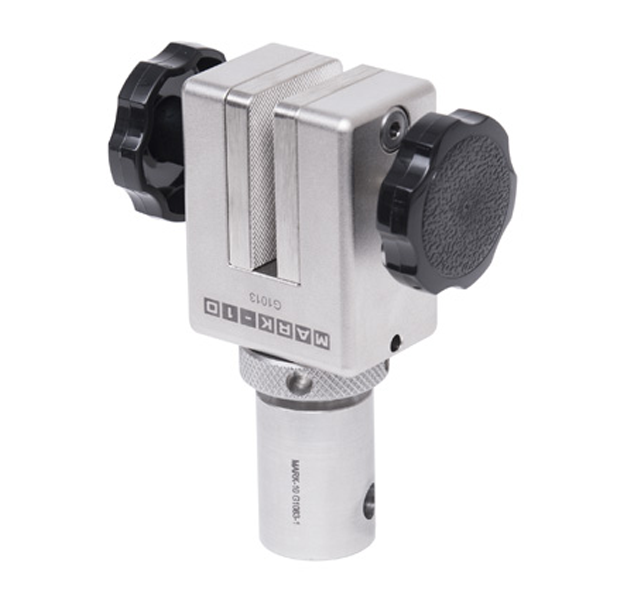

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN[MM]
| A | B | C | D |
|---|---|---|---|
| 1.75 [44.5] | 2.25 [57.2] | 1.25 [31.8] | 0 – 0.25 [0 – 6.3] |
