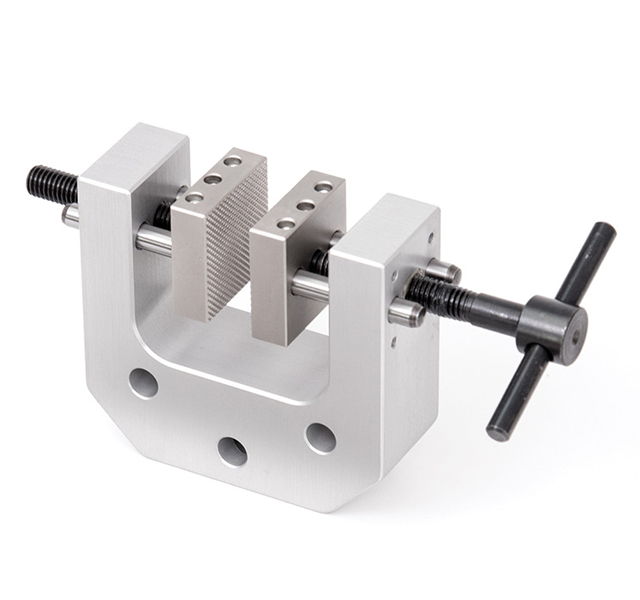

Parallel Jaw Grip_Medium
This grip is ideal for general tensile and pull testing applications up to 200 lbF (1,000 N). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.
Full Description
G1101
This grip is ideal for general tensile and pull testing applications up to 200 lbF (1,000 N). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.
Extended jaw lengths are available, to accommodate larger samples.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Features
- Individually adjustable, serrated jaws
- Available extended length jaws
Specifications
- Capacity: 200 lbF [1,000 N]
- Weight: 1.0 lb [0.5 kg]
- Housing Material: Aluminum
- Jaw Material: Hardened steel, 58 RC
Optional Equipment

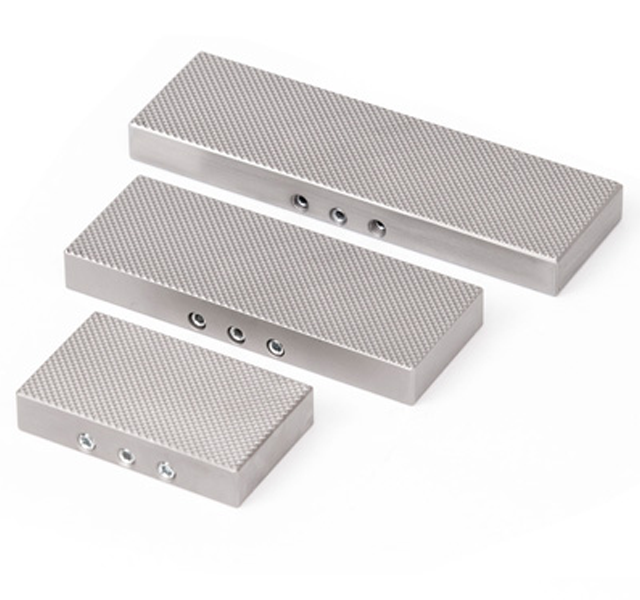

Extended jaws Available in three lengths: – 1.97 in [50.0 mm] – 3.15 in [80.0 mm] – 3.94 in [100.0 mm]
Dimension
IN [MM]
