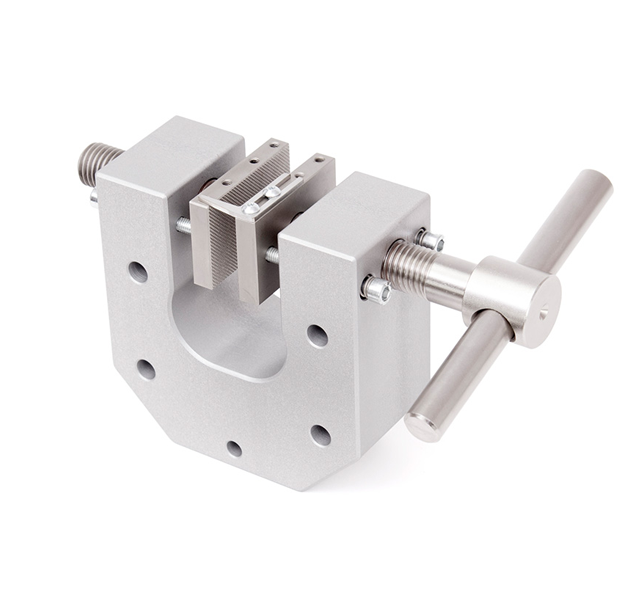

Parallel Jaw Grip_Large
This rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (9 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.
Full Description
G1100
This rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (9 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

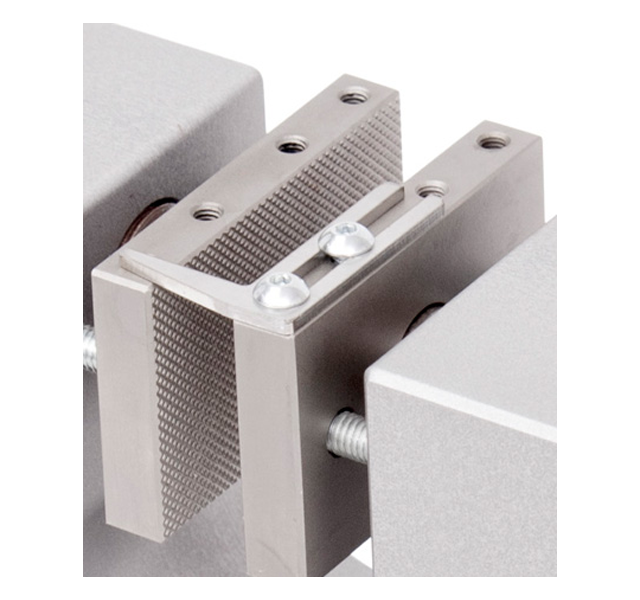

Includes an adjustable stop for consistent sample placement between the jaws.
Extended jaw lengths are available, to accommodate larger samples.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Features
- Individually adjustable, serrated jaws
- Available extended length jaws
Specifications
Capacity:
2,000 lbF [9 kN]
Weight:
5.9 lb [2.7 kg]
Housing Material:
Aluminum
Jaw Material:
Hardened steel, 58 RC
Optional Equipment

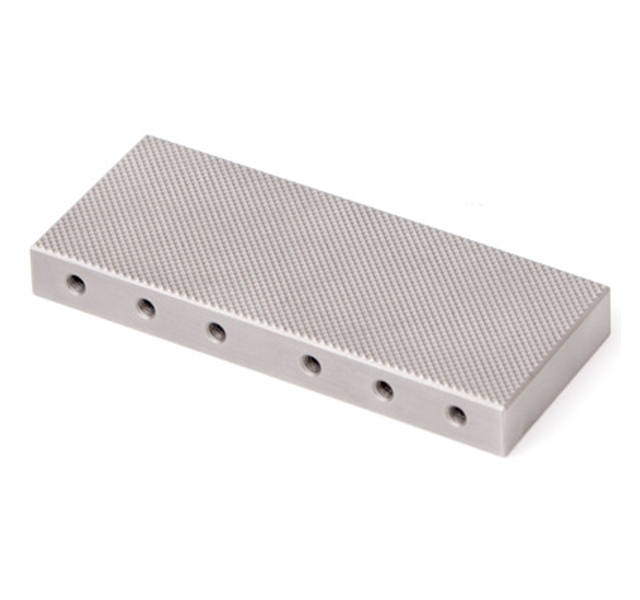

Extended jaws, 3.94 in [100.0 mm] length
Dimension
IN [MM]
