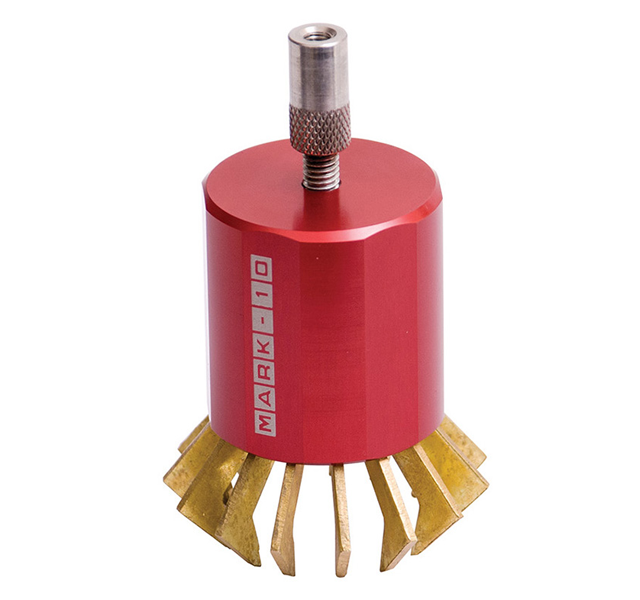

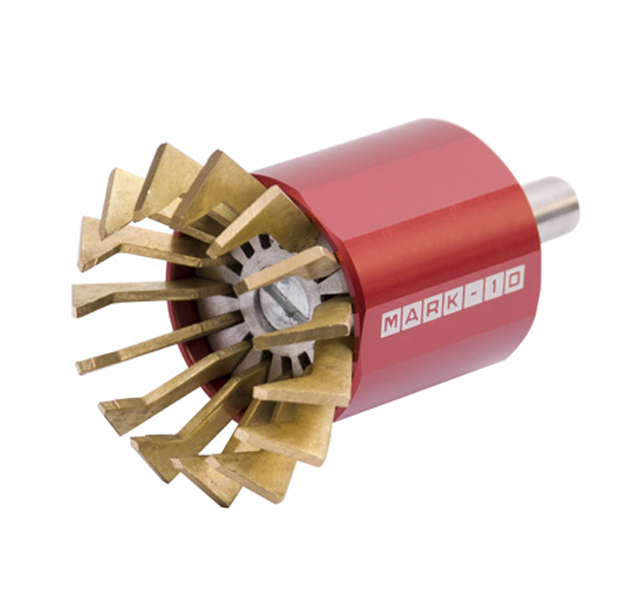

Multi Jaw Grip

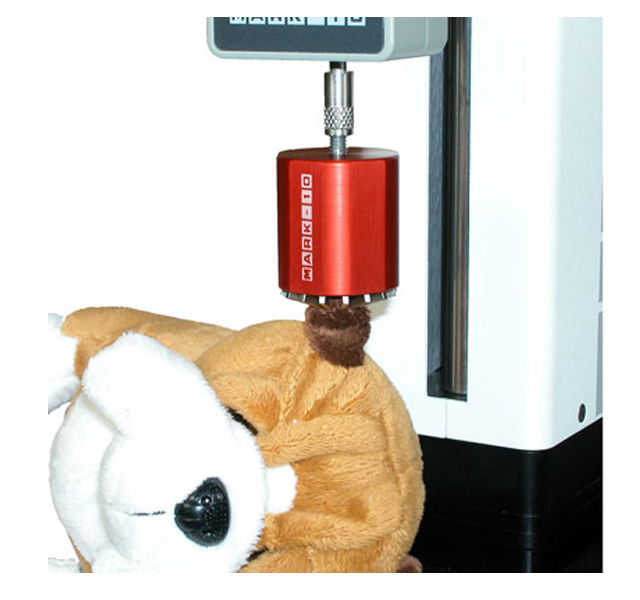

This unique and universal grip is designed for gripping round and irregularly shaped items. The jaws open and close as the housing is rotated. Typical applications including pull-off tests of fasteners and components in the toy, clothing, and other industries.
Full Description
G1056
This unique and universal grip is designed for gripping round and irregularly shaped items. The jaws open and close as the housing is rotated. Typical applications including pull-off tests of fasteners and components in the toy, clothing, and other industries.
Specifications
Capacity:
100 lbF [150 N]
Weight:
0.30 lb [0.14 kg]
Max. sample diameter:
2.30 in [58.4 mm]
Optional Equipment
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

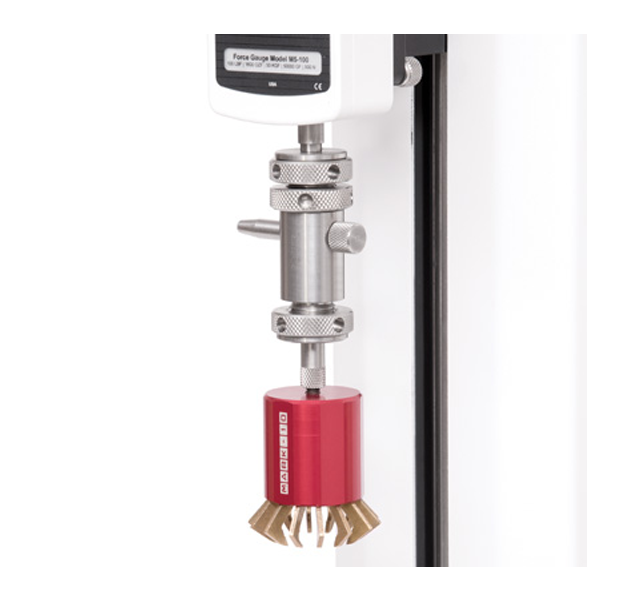

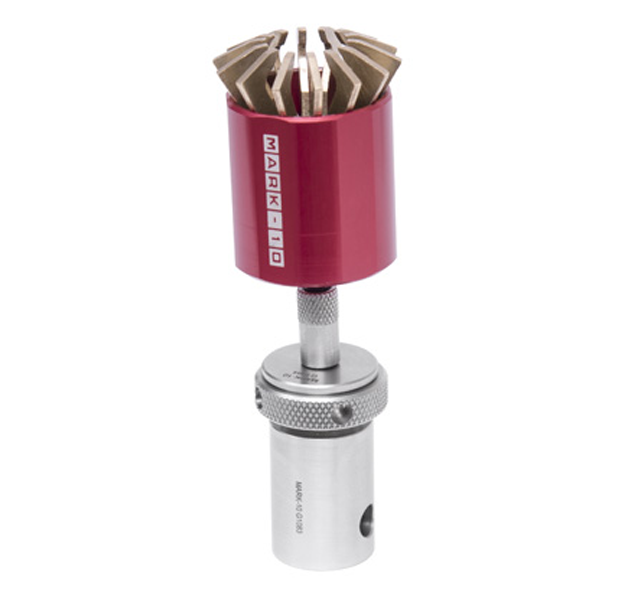

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| A | B | C | ØD | E | ØF |
|---|---|---|---|---|---|
| 3.50 [88.9] | 2.30 [58.4] MAX | 1.63 [41.4] | 1.55 [39.4] | 0.075 [1.91] | 0.40 – 1.25 [10.2- 31.7] |
