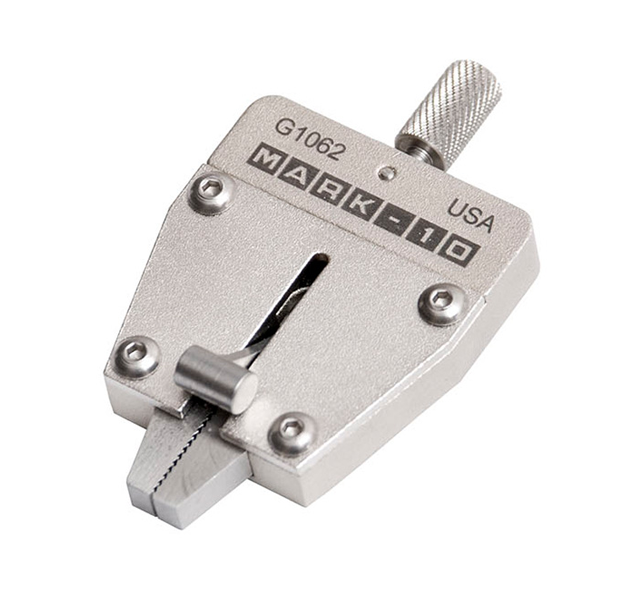

Miniature Wedge Grip

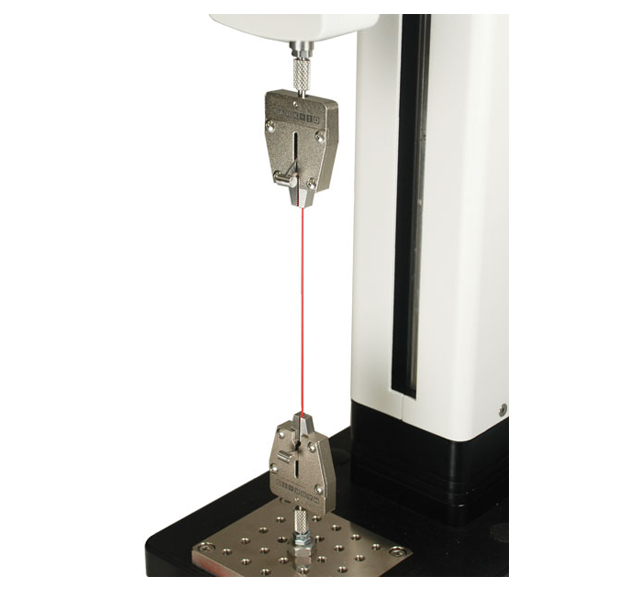

This compact self-tightening grip with a capacity of 100 lbF (500 N) is ideal for a range of low force tensile testing of small samples. The serrated steel jaws are easily opened with an ergonomic spring-loaded lever.
Full Description
G1062
This compact self-tightening grip with a capacity of 100 lbF (500 N) is ideal for a range of low force tensile testing of small samples. The serrated steel jaws are easily opened with an ergonomic spring-loaded lever.
Features
- 100 lbF [500 N] capacity
- Spring-loaded lever
- Serrated steel jaws
- Swiveling mounting attachment
- Thru slot for samples of unlimited width
Specifications
Weight:
0.08 lb [0.04 kg]
Jaw material:
303 SS
Optional Equipments

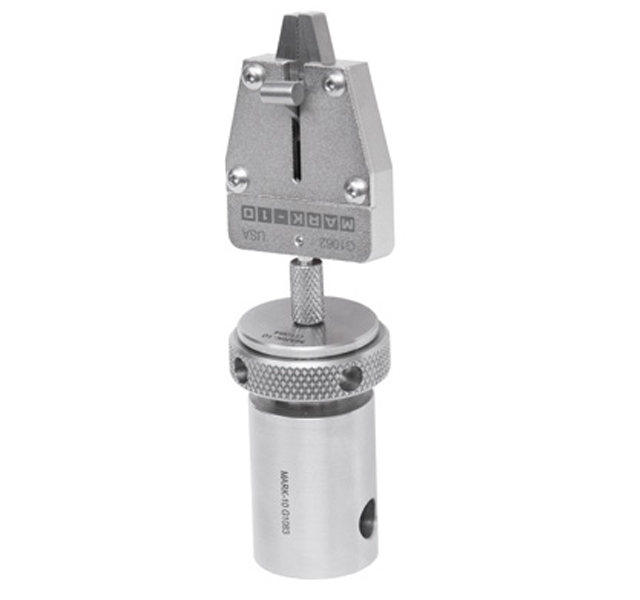

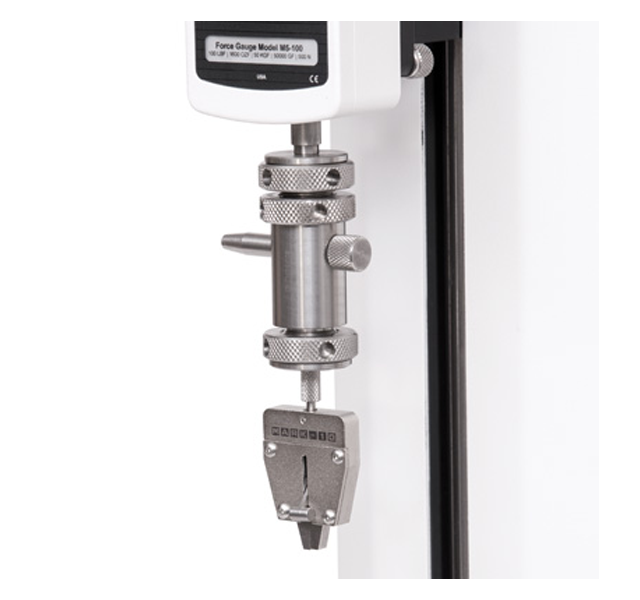

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 1.37 [34.8] | 2.49 [63.1] | 0.19 [4.8] | 0.32 [8.1] | #10-32 UNF | 0 – 0.09 [0 – 2.3] | 0.15 [3.9] |
