Miniature Force Sensors Series R04

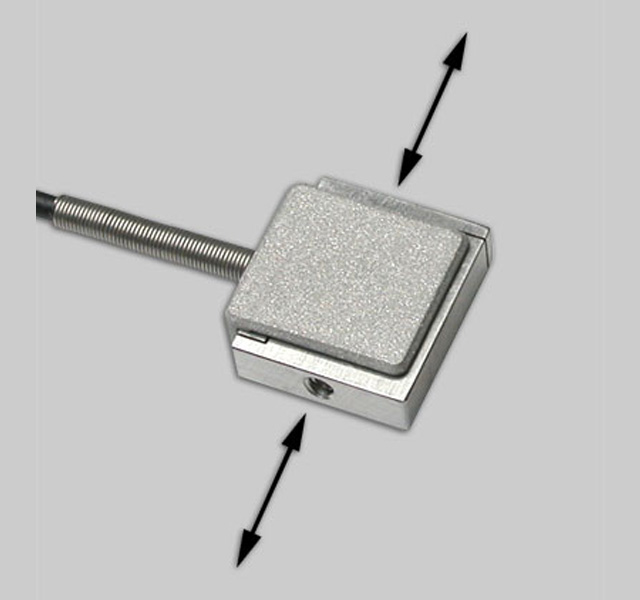

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions.
Full Description
Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.
Features

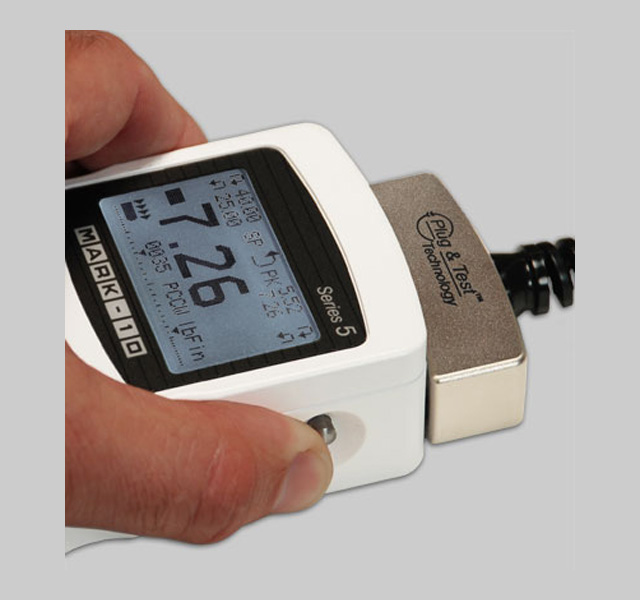

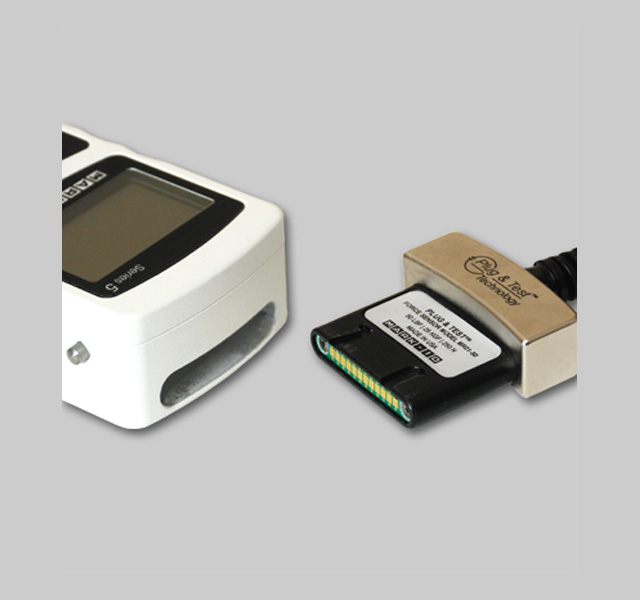

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Ultra-compact size
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specifications
- Accuracy: ± 0.2% of full scale + indicator
- Weight: 0.015 lb [0.007 kg]
- Shipping weight:2 lb [0.9 kg]
- HS code:MR04 (all models): 9024900000
- ECCN : EAR99
- Country of origin: USA
Models
| Capacity x Resolution ? | ||||||
| Model | lbF | ozF | gF | kgF | N | mN |
| MR04-025 | 0.25 x 0.0001 | 4 x 0.002 | 100 x 0.05 | - | 1 x 0.0005 | 1000 x 0.5 |
| MR04-05 | 0.5 x 0.0002 | 8 x 0.005 | 250 x 0.1 | - | 2.5 x 0.001 | 2500 x 1 |
| MR04-2 | 2 x 0.001 | 32 x 0.02 | 1000 x 0.5 | 1 x 0.0005 | 10 x 0.005 | - |
| MR04-5 | 5 x 0.002 | 80 x 0.05 | 2500 x 1 | 2.5 x 0.001 | 25 x 0.01 | - |
| MR04-10 | 10 x 0.005 | 160 x 0.1 | 5000 x 2 | 5 x 0.002 | 50 x 0.02 | - |
| MR04-20 | 20 x 0.01 | 320 x 0.2 | 10000 x 5 | 10 x 0.005 | 100 x 0.05 | - |
| MR04-50 | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | - |
| MR04-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
