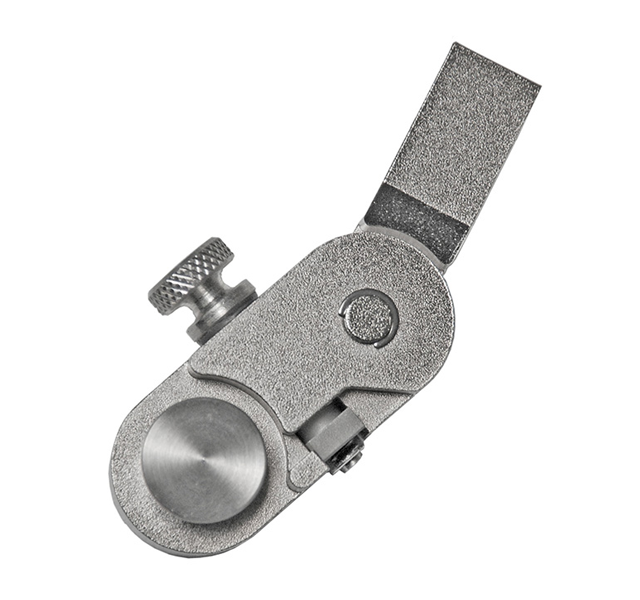

Miniature Filament Grip Bollard Style
For securing small diameter wires and filaments in pull tests. The sample wraps around the bollard and the loose end is secured by the adjustable jaw. Integrated swivel ensures sample alignment under load.
Full Description
G1078
For securing small diameter wires and filaments in pull tests. The sample wraps around the bollard and the loose end is secured by the adjustable jaw. Integrated swivel ensures sample alignment under load.
Features
- Bollard / capstan design effectively secures small diameter wires and filaments
- Integrated swivel adapter for proper sample alignment
Specification
Capacity lbF [N]:
50 [250]
Weight lb [kg]:
0.06 [0.03]
Optional Equipments

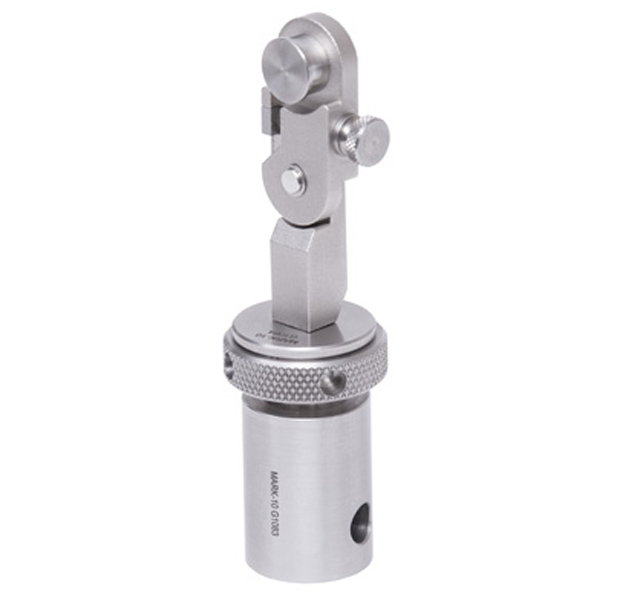

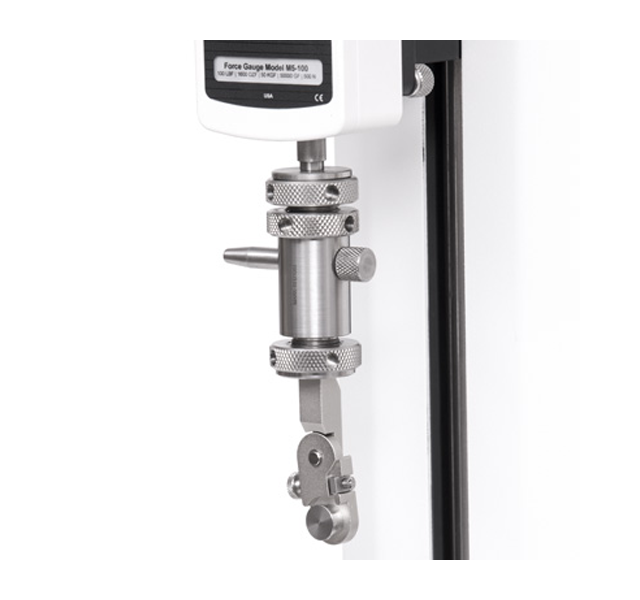

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN [MM]
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 2.38 [60.4] | 1.09 [27.7] | 0.10 [2.5] | 0.10 [2.5] | 0.55 [14.1] | Ø0.45 [11.4] | 0.20 [5.1] |
