Miniature Component Grip

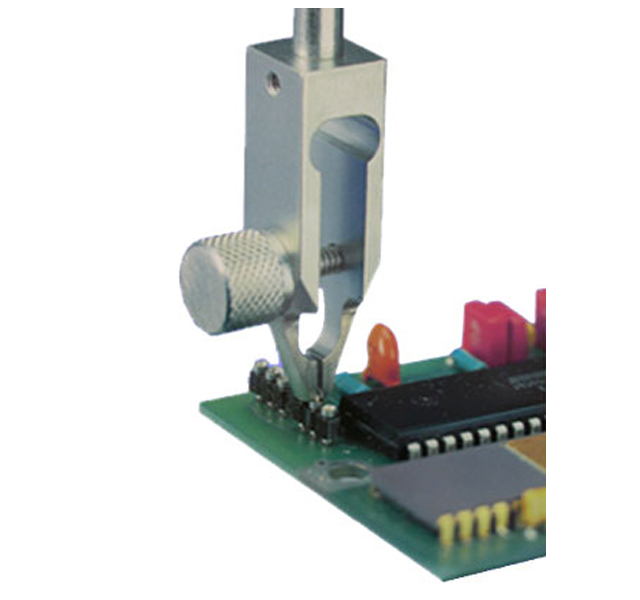

This slender grip is ideal for testing small and hard-to-reach parts, such as electronic and mechanical components.
Full Description

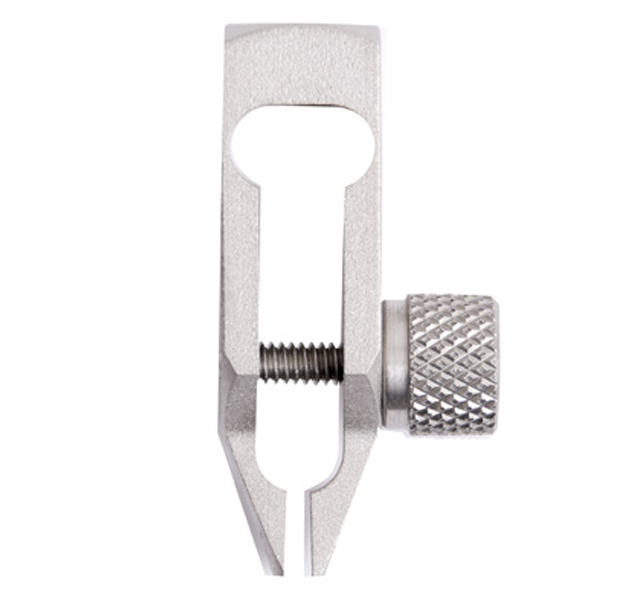

G1003
This slender grip is ideal for testing small and hard-to-reach parts, such as electronic and mechanical components.
Specification
Capacity:
30 lbF [150 N]
Weight:
0.05 lb [0.02 kg]
Shipping Weight:
1 lb [0.5 kg]
Max. sample thickness:
0.07 in [1.8 mm]
Optional Equipments
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

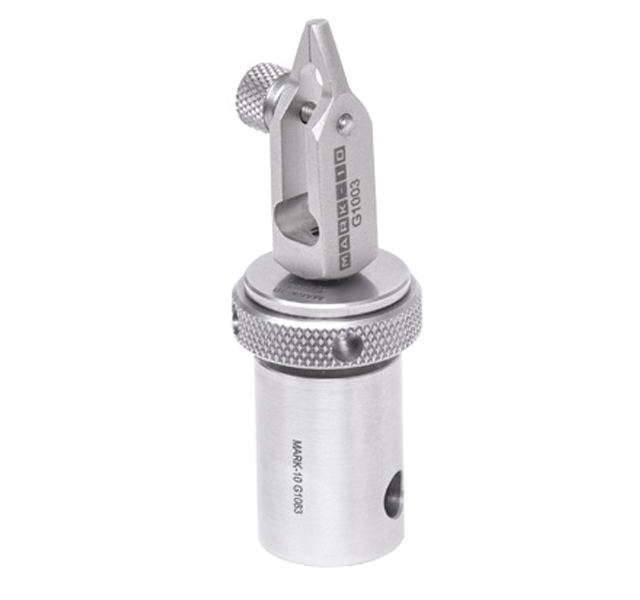

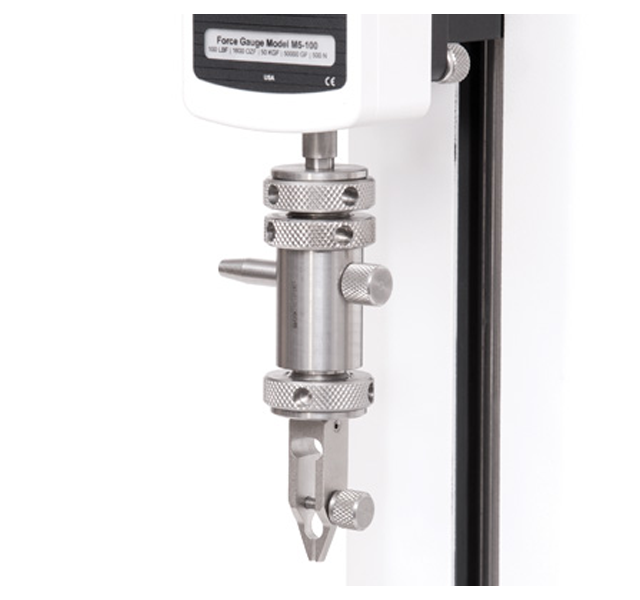

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| A | B | C | D | E |
|---|---|---|---|---|
| 0.5 [12.7] | 1.7 [43.2] | 0.5 [12.7] | 0 – 0.07 [0 – 1.8] | 0.15 [3.8] |
