Manual Torque Test Stand MODEL TST TSTH

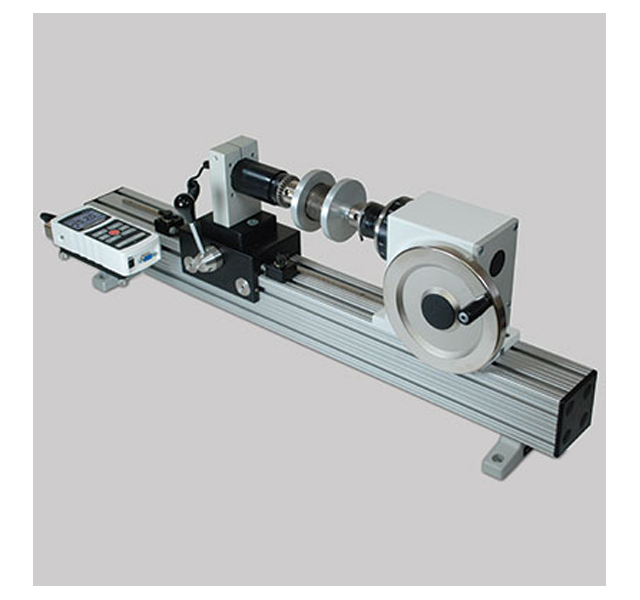

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbFin, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Available in vertical and horizontal orientations.

Features:

• Smooth hand wheel operation

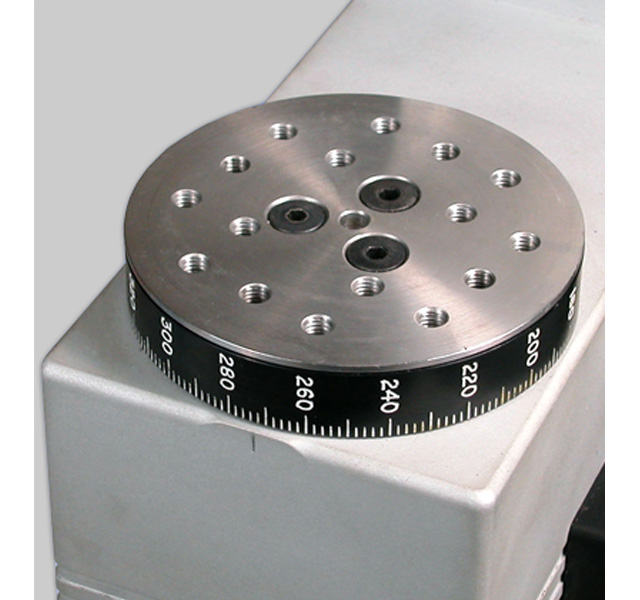

• Torque plate with tapped holes for grip and fixture mounting
• Lever operated slider for engaging and disengaging samples
• Angle dial with 2° resolution (optional digital angle indicator has 0.1° resolution, see Optional Equipment)

Specification

• Maximum torque: 100 lbFin (11.3 Nm)
• Maximum angular travel: no limit
• Throat depth: 4.10" (104 mm)
• Angular rate: 12° / wheel rev.
• Maximum slider travel: 15.5" (394 mm)
• Slider travel rate: 1.047" (26.6 mm)/lever rev
• Weight: TST: 33 lb [15 k

TSTH: 27 lb [12.2 kg]

• Shipping weight: TST: 42 lb [19.1 kg] TSTH: 36 lb [16.3 kg]
• HS code: TST, TSTH: 9024900000 TST001, TST001E, TSF002, SP-2736-12,-24,-42: 9024800000
• ECCN : EAR99
• Country of origin: USA

In the Box

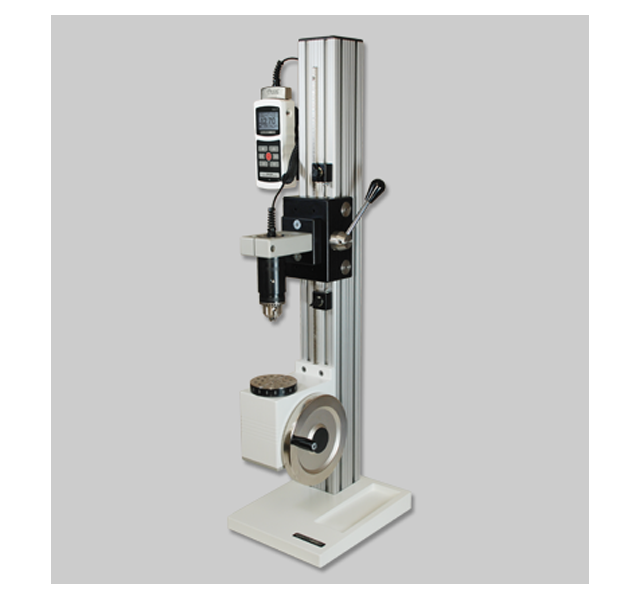

The TST and TSTH test stands are shipped as shown at left, and include the following accessories: (4) Thumb screw for indicator (1) Allen wrench set (1) Base (TST) (2) Mounting leg with hardware (TSTH) (1) Additional column cap with hardware (TSTH)
