Manual Test Stand Model ES10 and ES20

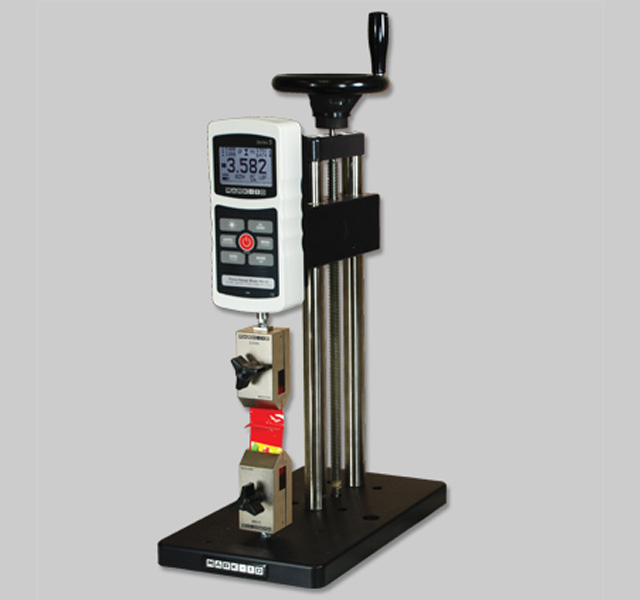

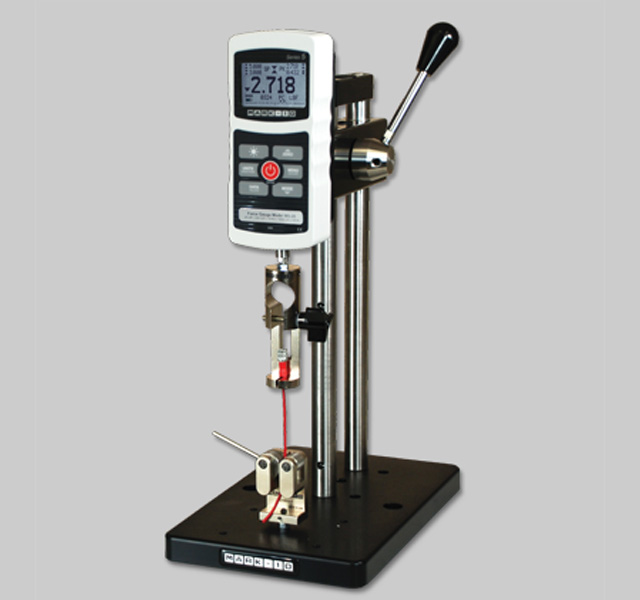

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results.
Full Description

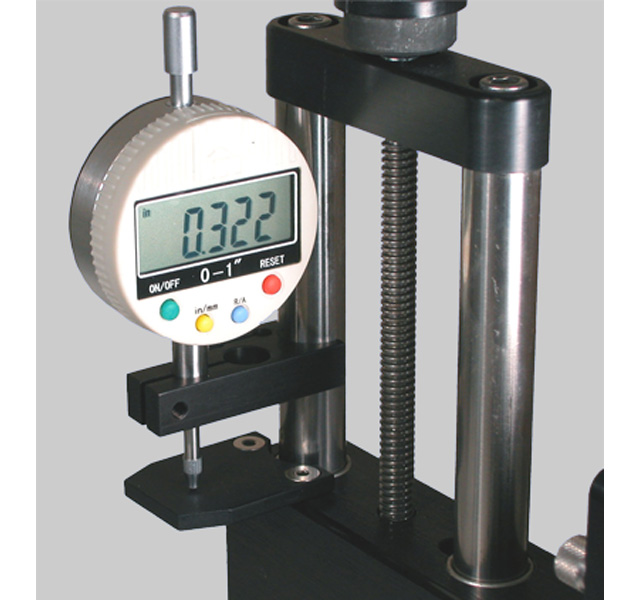

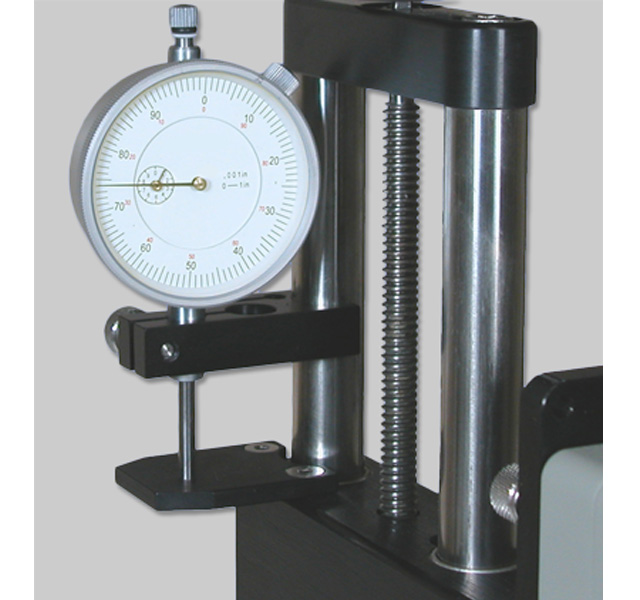

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. Optional dial and digital indicator kits display up to 1" (25 mm) of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
Features
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

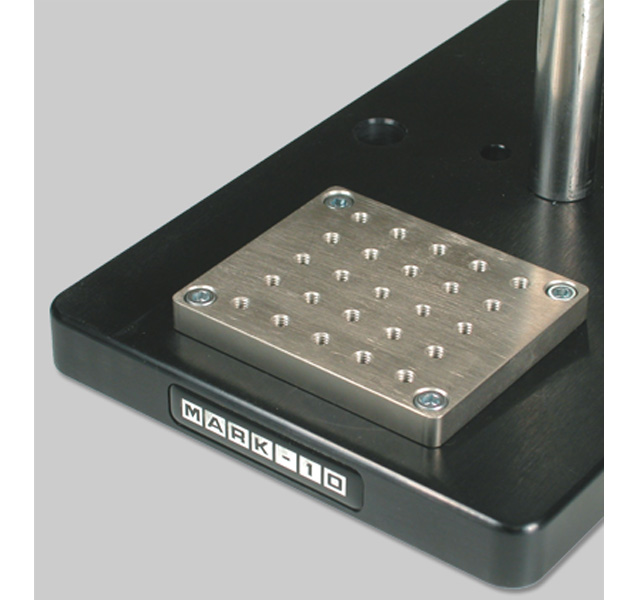

- Large base plate with 5 #10-32 UNF holes for fixture mounting
- Competitor force gauge mounting kits available
Specification
| ES10 | ES20 | ||
|---|---|---|---|
| Maximum Force | 100 lbF [500 N] | ||
| Maximum Travel | 9" [229 mm] | ||
| Loading Method | Lever (can be placed in 3 positions for ease of operation) | Top-mounted hand wheel | |
| Travel Rate | 1.050" [26.7 mm] / lever rev. | 0.083" [2.1 mm] / wheel rev. | |
| Weight | 10 lb [4.5 kg] | ||
| Shipping weight | 12 lb [5.4 kg] | ||
| Model No. | HS Code | ECCN | Country of Origin |
| ES10 ES20 | 9024900000 | EAR99 | USA |
| ES001 ES002 ES001NI ES001NI-8MM AC1060 | 9024800000 |
Product video
