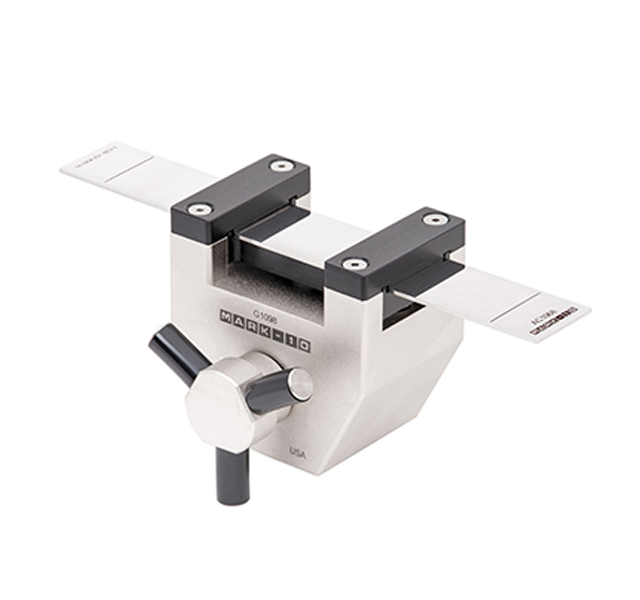

Loop Tack Fixture

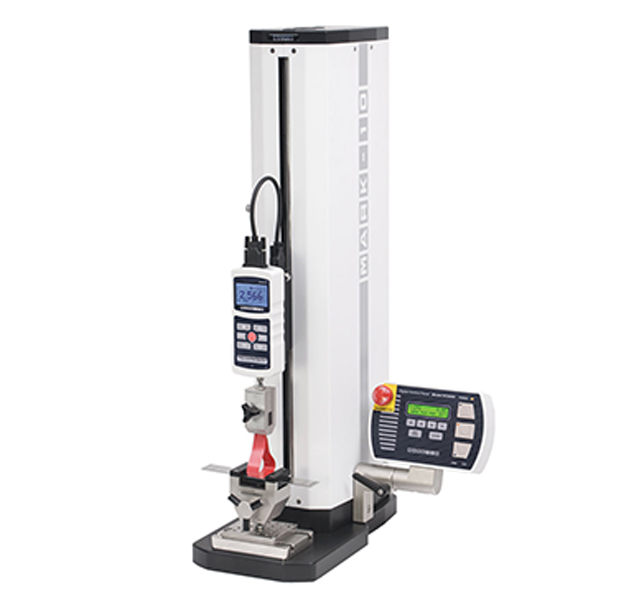

Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included – suggested model: G1008).
Full Description
G1098
Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included – suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.
Features
- Designed for loop tack force testing
- Quick-change mechanism for test strips
- Conforms to ASTM D6195
Specifications
Capacity:
100 lbF [500 N]
Weight (including one test strip):
1.10 lb [0.5 kg]
Shipping weight
2 lb [0.9 kg]
Test strip material:
T304 SS, per ASTM A666
Optional Equipment

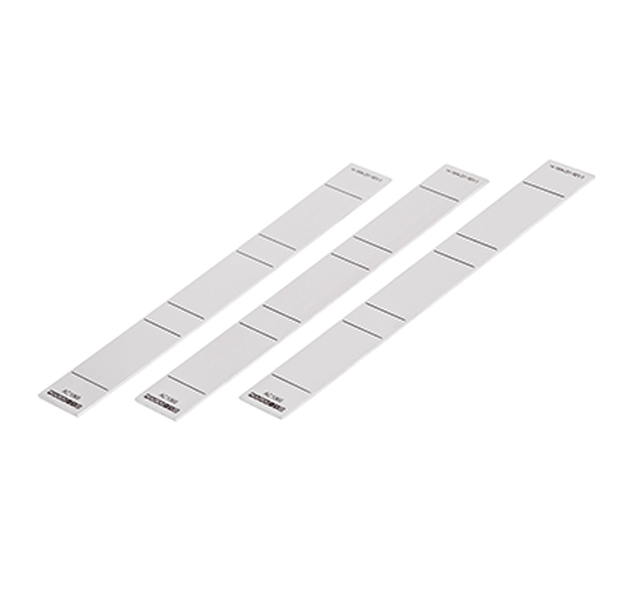

Spare test strips Set of three test strips (one strip is included with the fixture).

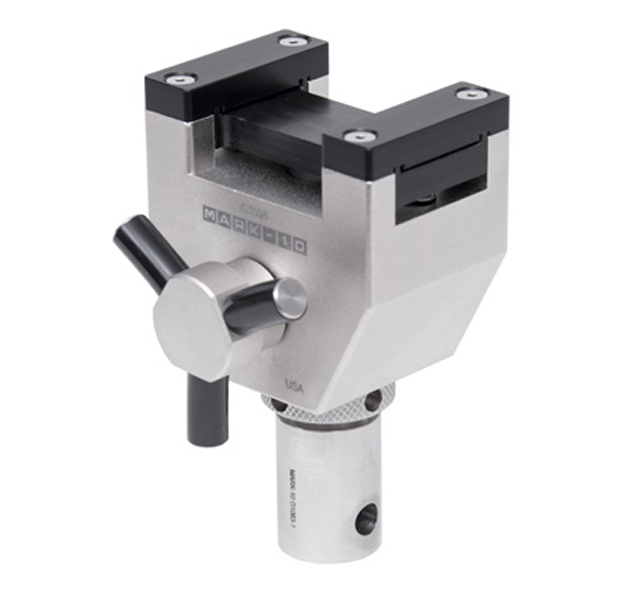

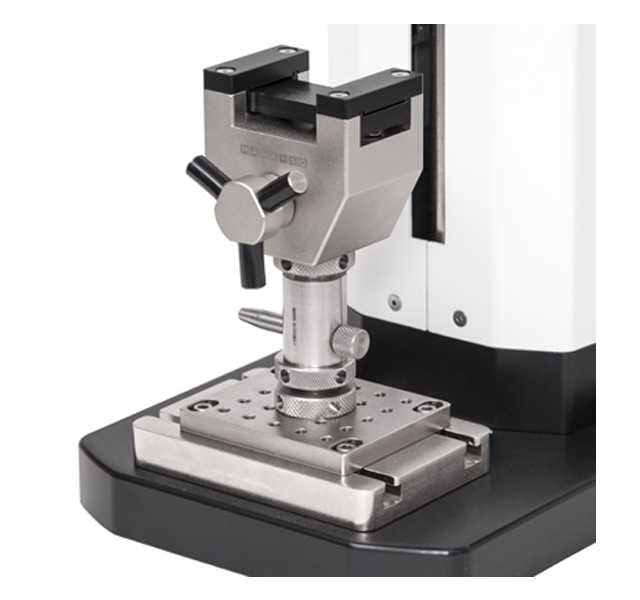

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN[MM]
