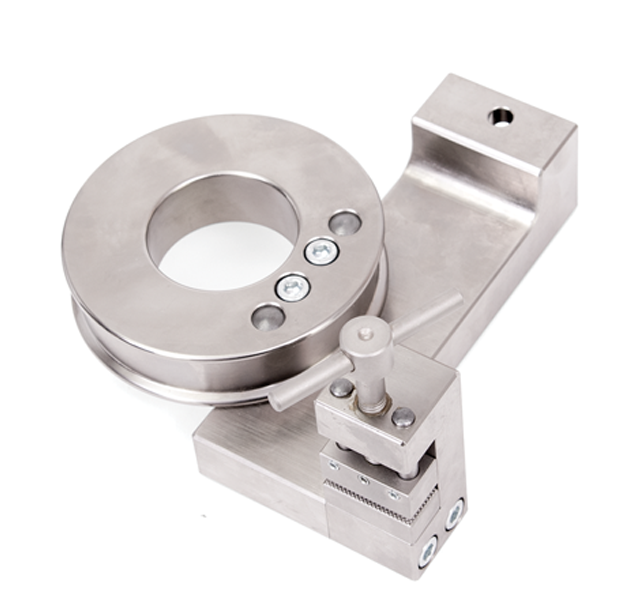

High Capacity Wire_Rope Grip
Designed for high capacity wire and rope pull testing applications. Secures the free end of the sample via a bollard and vise.
Full Description
G1092
Designed for high capacity wire and rope pull testing applications. Secures the free end of the sample via a bollard and vise.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Features
- Bollard / capstan design effectively secures wire, rope, and other samples
- Eye end mounting
Specifications
Capacity lbF [kN]:
2,000 [9]
Weight lb [kg]:
6.0 [2.7]
Optional Equipments
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimension
