High Capacity Manual Test Stand Model TSF TSFH
The TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lbF (5 kN) of push or pull force.
Full Description
The TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lbF (5 kN) of push or pull force.

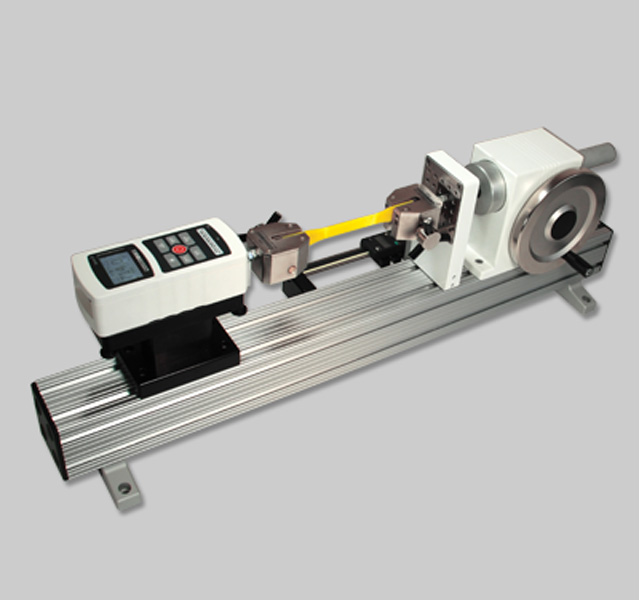

The stand features a large side mounted hand wheel requiring minimal user effort and a rigid 3” x 3” column. A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.
Features
- Compatible with all Mark-10 force gauges, accessories and grips

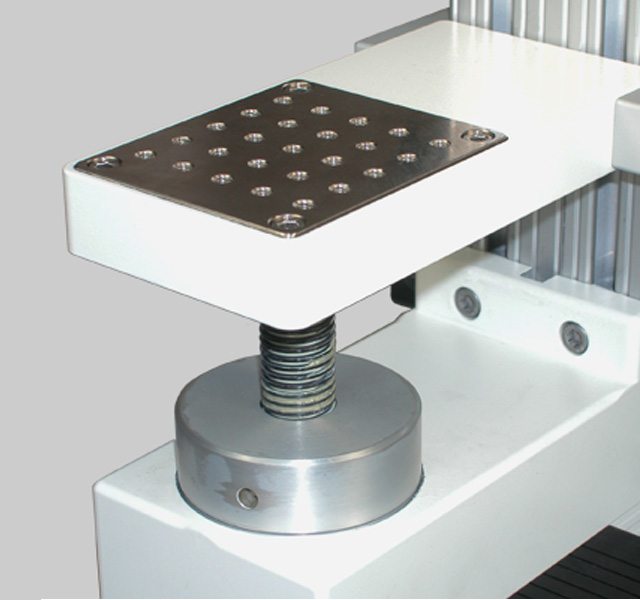

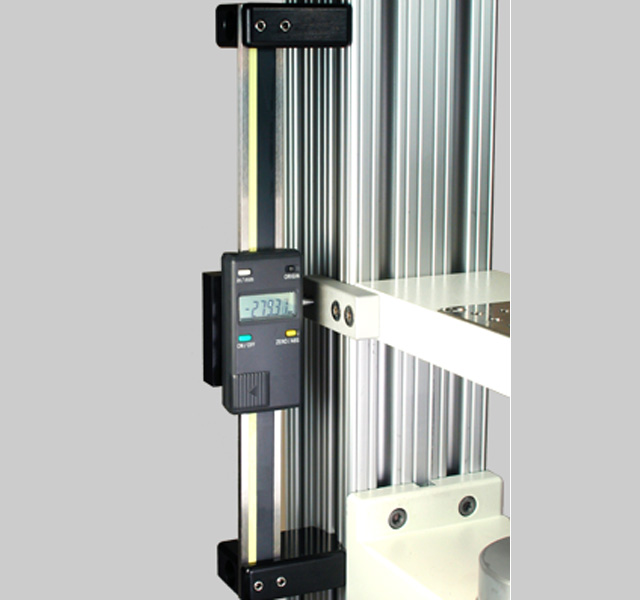

- Loading table with 25 #10-32 UNF holes for fixture mounting
- Smooth hand wheel operation
Specification
- Maximum force:1,000 lbF [5 kN]
- Maximum travel:4.00" [102 mm]
- Travel rate:0.013" [0.34 mm]/wheel rev
- Weight:TSF: 36 lb [16.3 kg]
TSFH: 30 lb [13.6 kg]
- Shipping weight:TSF: 43 lb [19.5 kg]
TSFH: 39 lb [17.7 kg]
- HS code:TSF, TSFH: 9024900000
TSF001, TSF002, SP-2735-12,-24,-42: 9024800000
- ECCN: EAR99
- Country of origin: USA
In the Box
The TSF and TSFH test stands are shipped as shown at left, and include the following accessories: (1) G1009 compression plate, 2” dia. (1) G1009-1 compression plate, 3” dia. (1) G1028 small hook (1) G1030 thread adapter, 5/16-18M to #10-32F (1) G1035 large hook (1) G1037 coupling, 5/16-18 F/F (1) G1
