High Capacity Clevis Grip

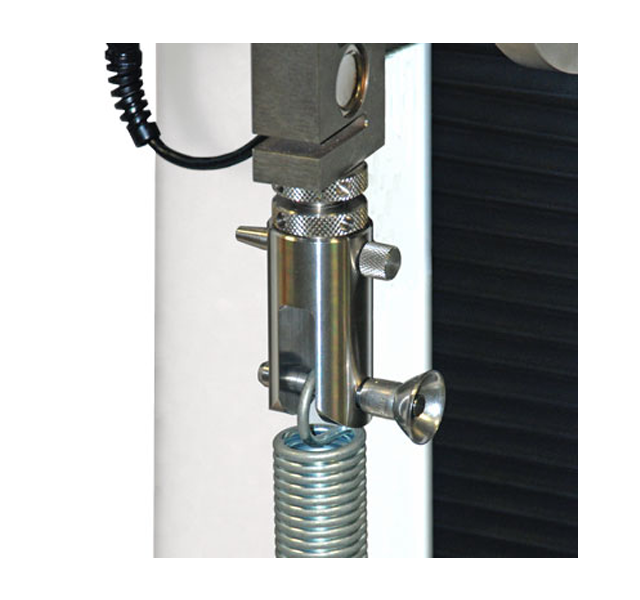

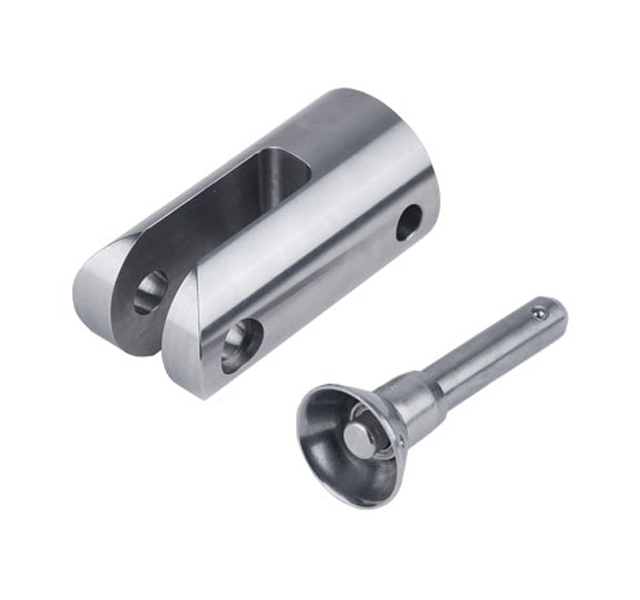

This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing.
Full Description
G1090
This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Specifications
Capacity:
2,000 lbF [9 kN]
Weight:
0.78 lb [0.35 kg]
Shipping weight
2 lb [0.9 kg]
Optional Equipments
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| A | B | C | ØD | E | F | ØG | ØH | ØI |
|---|---|---|---|---|---|---|---|---|
| 2.77 [70.4] | 1.80 [45.7] | 0.55 [14.0] | 1.40 [35.6] | 2.32 [58.9] | 0.87 [22.1] | 0.63 [15.9] | 0.32 [8.0] | 0.38 [9.7] |
