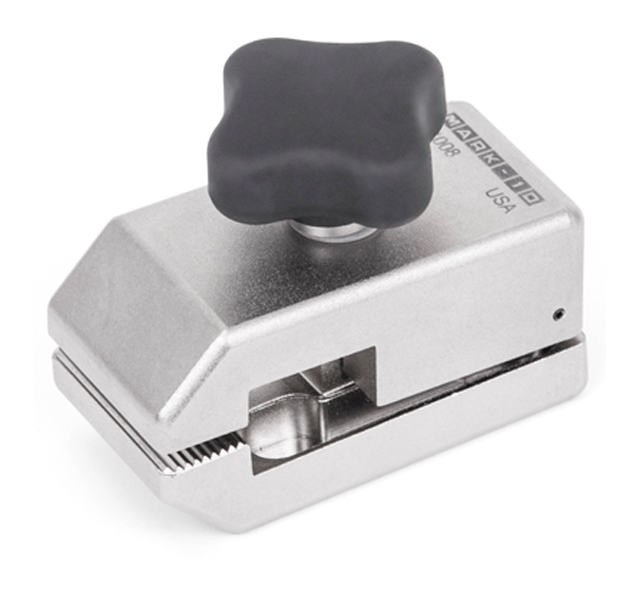

Film and Paper Peel Test Grips

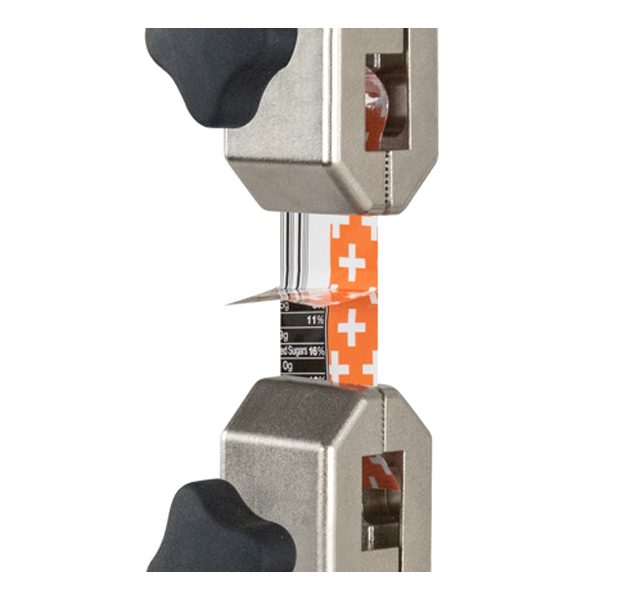

These grips are designed for film, paper, and other thin materials for tensile and peel testing, as per ASTM F88 and related standards.
Full Description

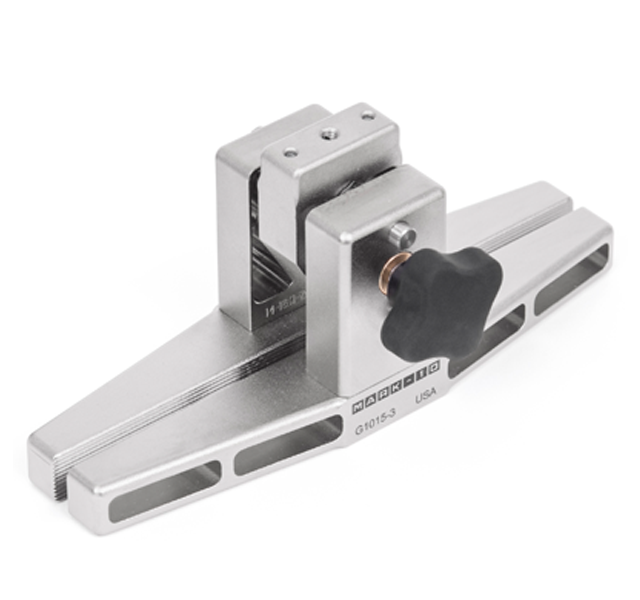

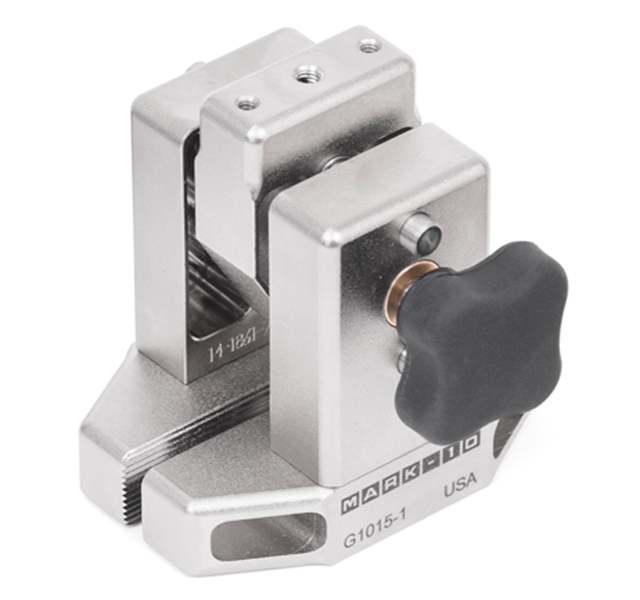

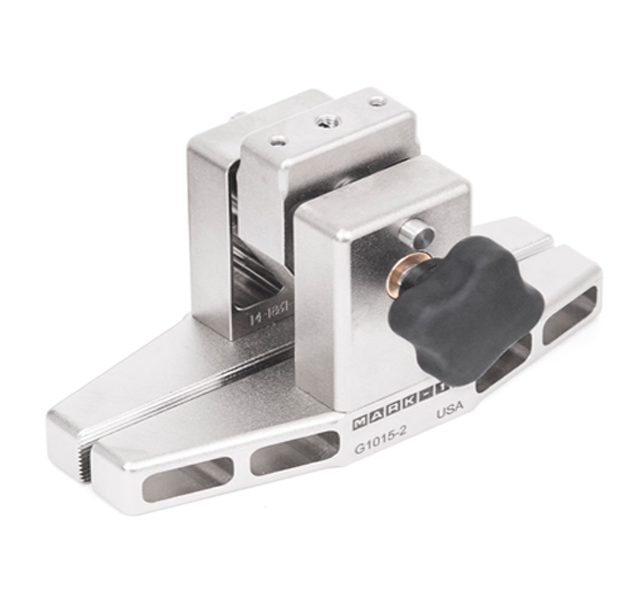

G1008, G1015-1, G1015-2, G1015-3
These grips are designed for film, paper, and other thin materials for tensile and peel testing, as per ASTM F88 and related standards.
Adjustable serrated interlocking jaws effectively secure samples for up to 100 lbF (500N) of force, while an ergonomic, rubberized knob easily engages and disengages the sample. A precision Acme screw provides durability and longevity over repeated engagements.

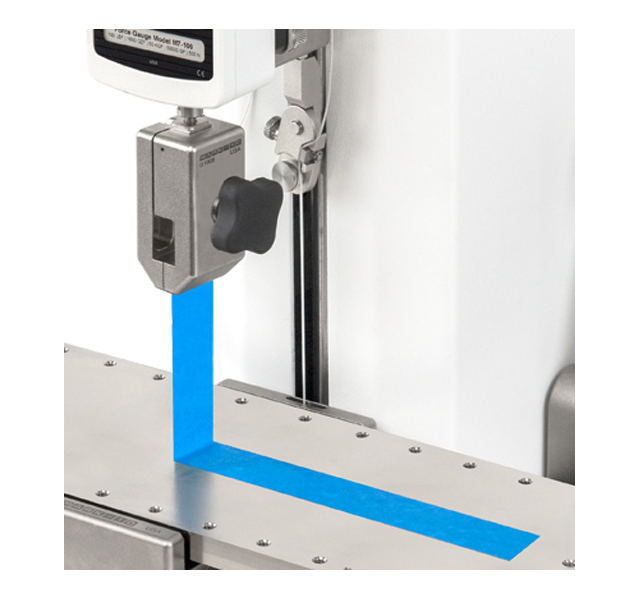

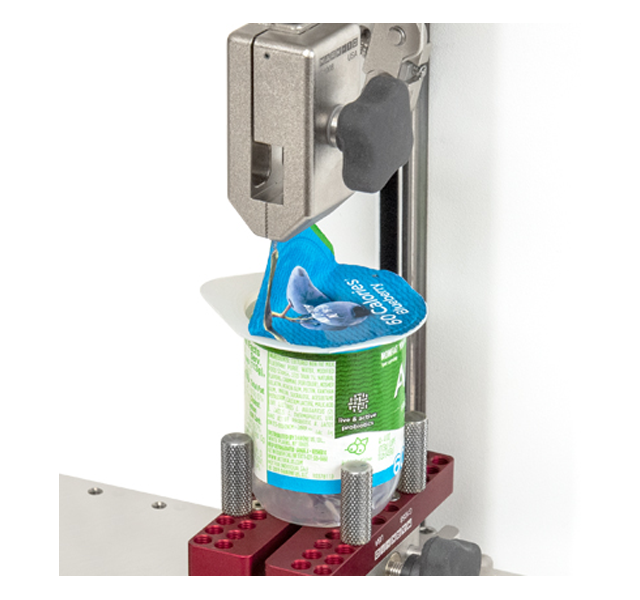

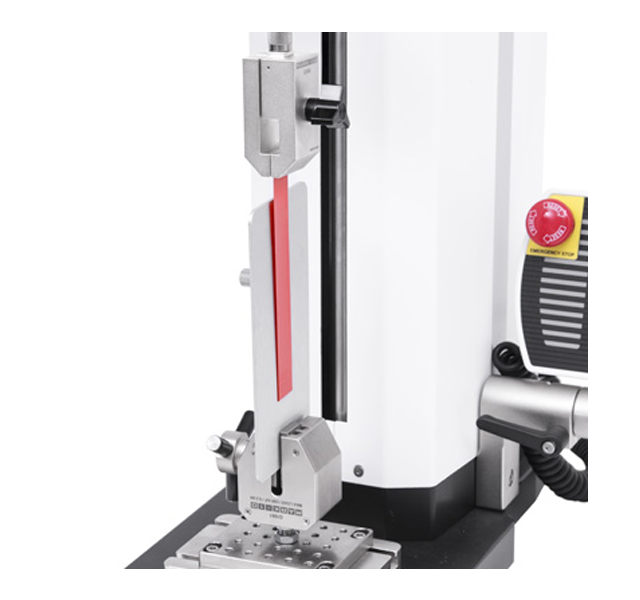

The grips are available in four widths. Use them with a force gauge and a test stand to create a complete testing system.
Specification
| Model | Capacity lbF [N] | Weight lb [kg] | Shipping Weight lb [kg] |
|---|---|---|---|
| G1008 | 100 [500] | 0.3 [0.1] | 1 [0.5] |
| G1015-1 | 0.7 [0.3] | 2 [0.9] | |
| G1015-2 | 0.8 [0.4] | 2 [0.9] | |
| G1015-3 | 0.9 [0.4] | 2 [0.9] |
Optional Equipments
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| G1008 | 1.25 [31.8] | 2.50 [63.5] | 1.20 [30.5] | 0- 0.15 [0- 3.8] | – |
Applicable standards
ASTM F88 / D1876 Film
