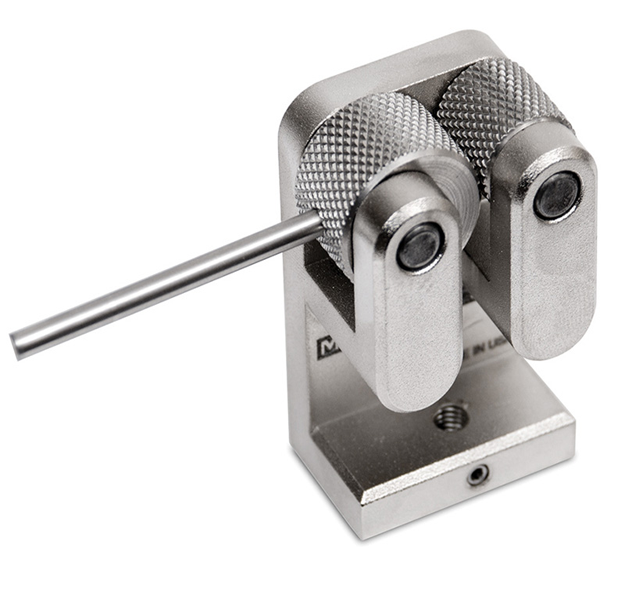

Dual Roller Grips

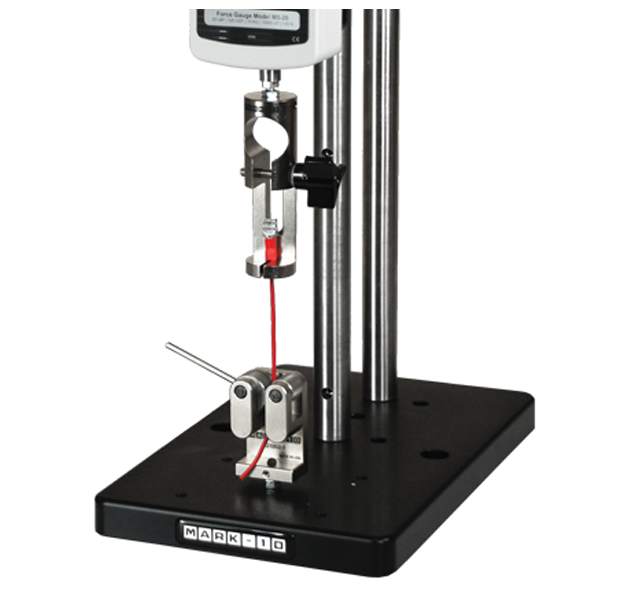

This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Commonly used with the G1001 wire terminal grip. Available in two size capacities.
Full Description
G1002, G1002-1
This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Commonly used with the G1001 wire terminal grip. Available in two size capacities.
Specifications
| Model | Capacity lbF [N] | Weight lb [kg] |
|---|---|---|
| G1002 | 200 [1,000] | 0.19 [0.09] |
| G1002-1 | 200 [1,000] | 0.24 [0.11] |
Optional Equipments
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications

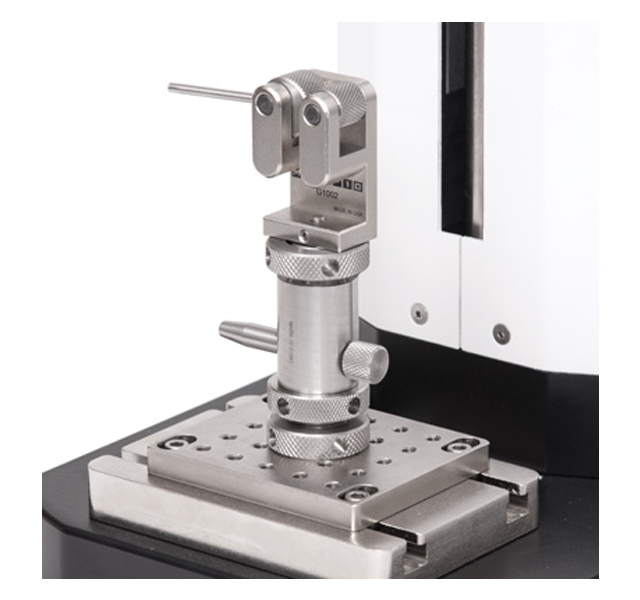

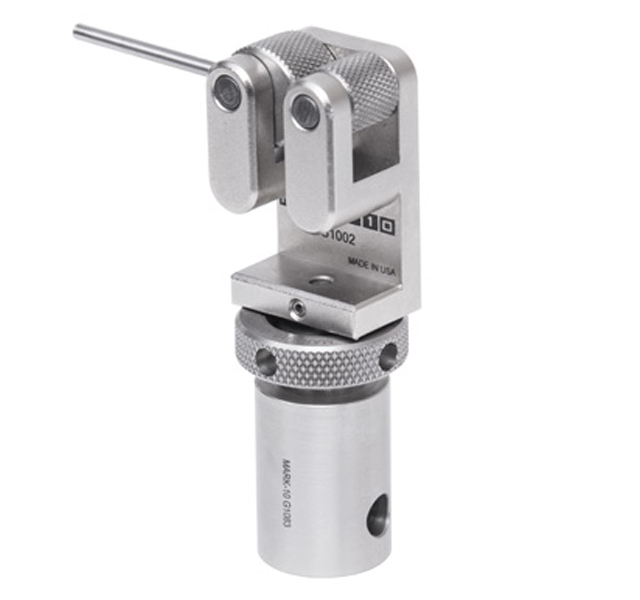

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN [MM]
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| G1002 | 1.18 [30.0] | 2.00 [50.8] | 0.75 [19.1] | 0 – 0.25 [0 – 6.3] | 0.25 [6.4] | 0.65 [16.5] | 1.0 [25.4] |
| G1002-1 | 1.30 [33.0] | 2.00 [50.8] | 0.75 [19.1] | 0.10 – 0.34 [2.5 – 8.6] | 0.25 [6.4] | 0.65 [16.5] | 1.0 [25.4] |
