Compression Plates High Capacity

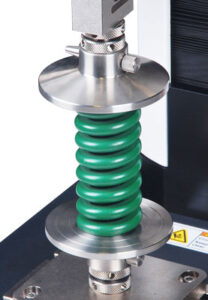

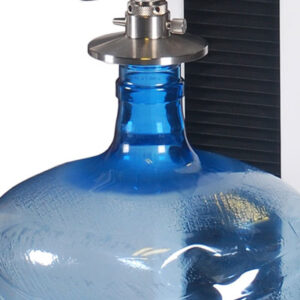

These high capacity compression plates are ideal for testing springs, foams, and other materials. Concentric circular grooves aid in centering the sample. Select from two sizes. Integrated eye end mount. Eye end adapters are available to adapt to Mark-10 load cells, force gauges, and test stands.
Full Description
G1087, G1087-1
These high capacity compression plates are ideal for testing springs, foams, and other materials. Concentric circular grooves aid in centering the sample. Select from two sizes. Integrated eye end mount. Eye end adapters are available to adapt to Mark-10 load cells, force gauges, and test stands.
Features
- Concentric grooves aid in sample positioning
- Select from two sizes
- Integrated eye end mounting
Specification
| Model | Capacity lbF [kN] | Weight lb [kg] | Shipping Weight lb [kg] | Material |
|---|---|---|---|---|
| G1087 | 2,000 [9] | 1.50 [0.68] | 2 [0.9] | 303 SS |
| G1087-1 | 2,000 [9] | 1.18 [0.54] | 2 [0.9] |
