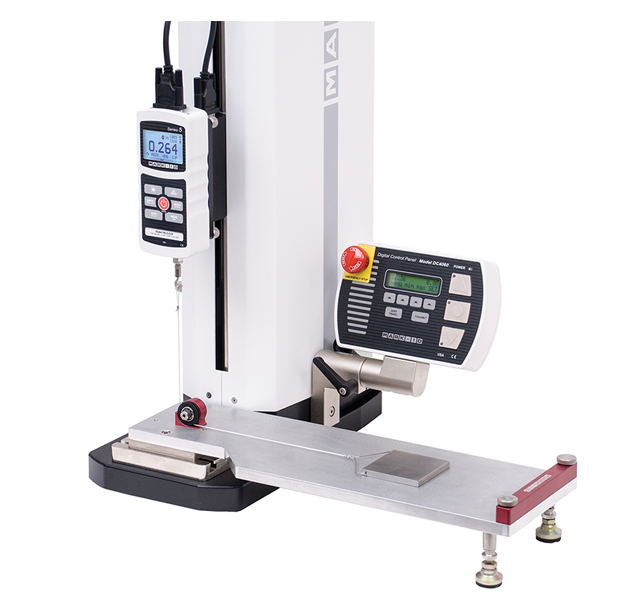

Coefficient of Friction Fixture
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards.
Full Description
G1086
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

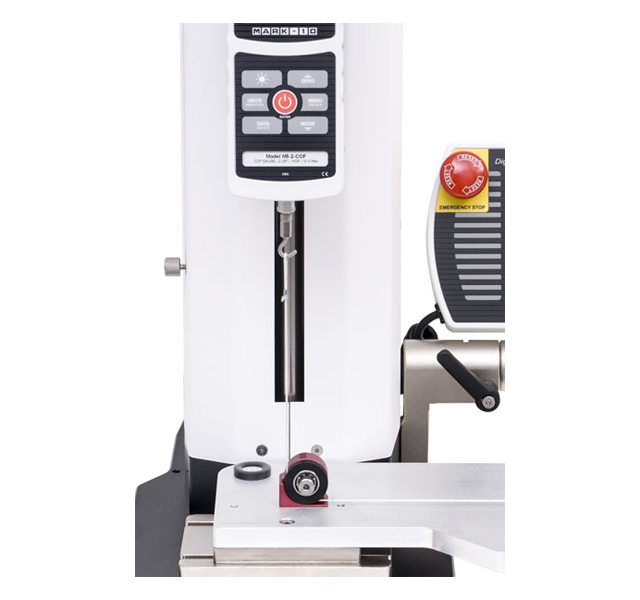

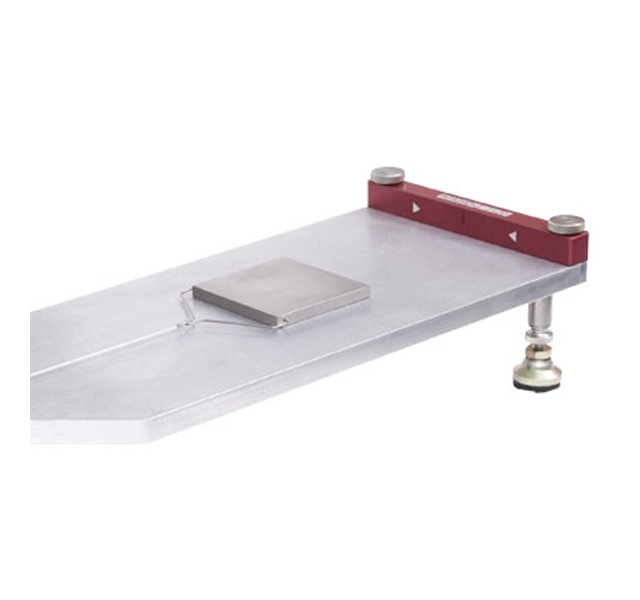

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303, ESM301, and ESM750 / ESM1500 test stands (optional mounting posts required for ESM750 / ESM1500; see below).
Features
- Allows for static and kinetic COF measurements
- Includes 200 g sled and sample clamp
- Compatible with the following test frame models: F105, F305, F505, F755, F755S, ESM303.
- Adapters available for other models (see Ordering Information)
- Fixture + Gauge Kit is available (see Ordering Information)
Specifications
Table surface material:
6061 T6 aluminum
Sled material:
303 SS
Maximum sled travel:
10.5 in (265 mm)
Weight: 7.4 lb [3.4 kg]
Shipping Weight: 10 lb [4.5 kg]
Models
| IN [MM] |
