Clevis Grip

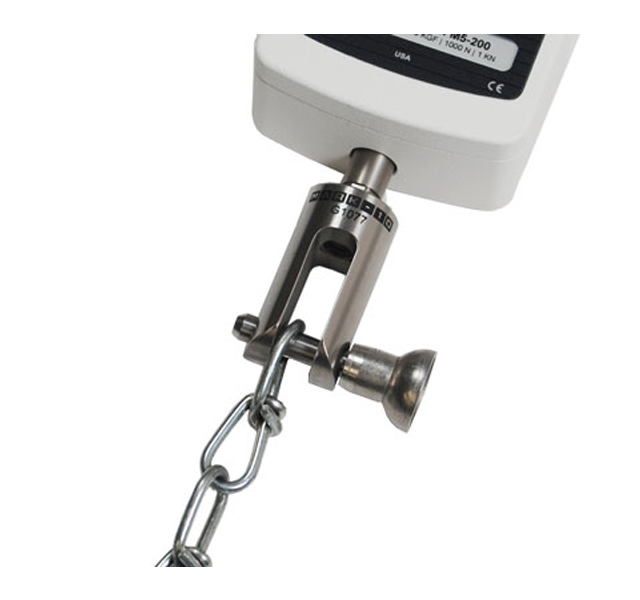

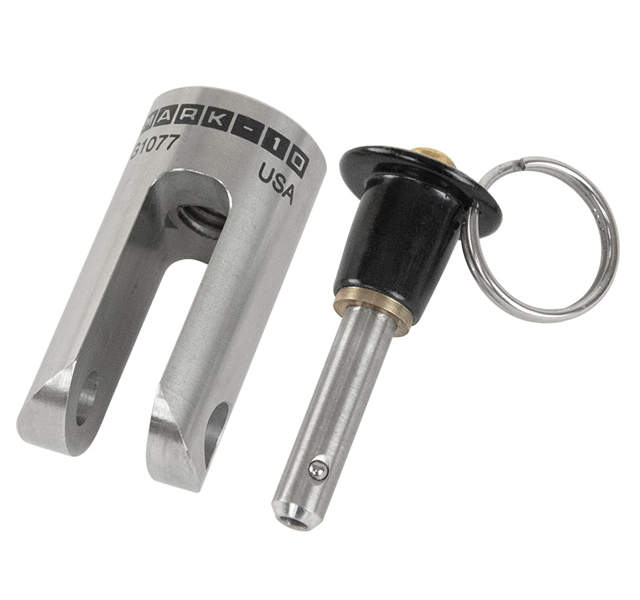

This grip is designed for ergonomic assessment, spring testing, and other pull testing applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Included with all Mark-10 ergonomics testing kits.
Full Description
G1077
This grip is designed for ergonomic assessment, spring testing, and other pull testing applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Included with all Mark-10 ergonomics testing kits.
Specification
Capacity lbf [N]:
500 [2,200]
Weight lb [kg]:
0.29 [0.13]
Optional Equipment
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Applicable standards
IN [MM]; A; B; C; ØD; E; ØF; 1.70; [43.2]; 1.25; [31.8]; 0.38; [9.7]; 0.85; [21.6]; 1.45; [36.8]; 0.25; [6.3]
