Advance Ergonomics Force Gauges Series E

Force & Torque Measurement

Full Description

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.

Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

Features

Measure real time and peak push and pull forces
Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)

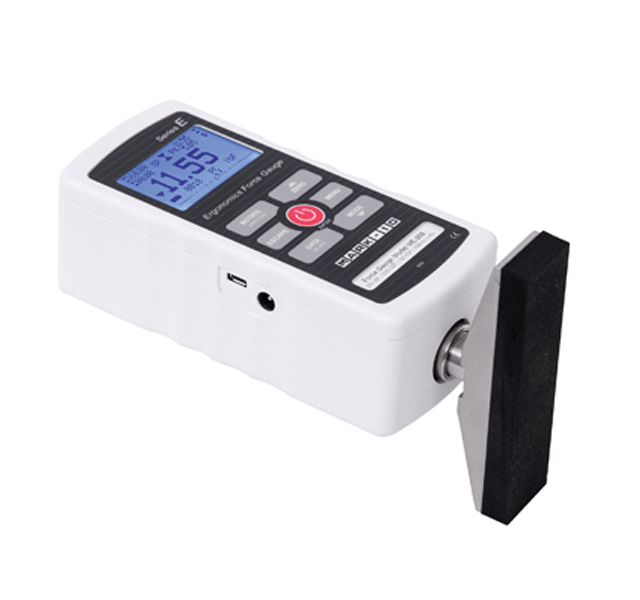

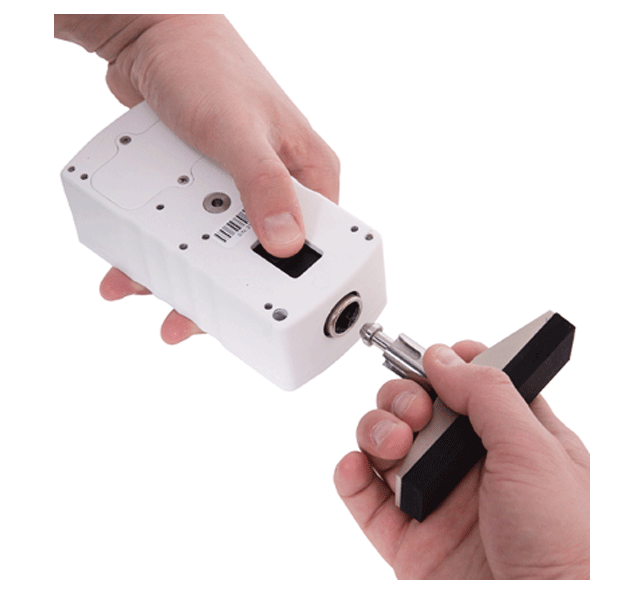

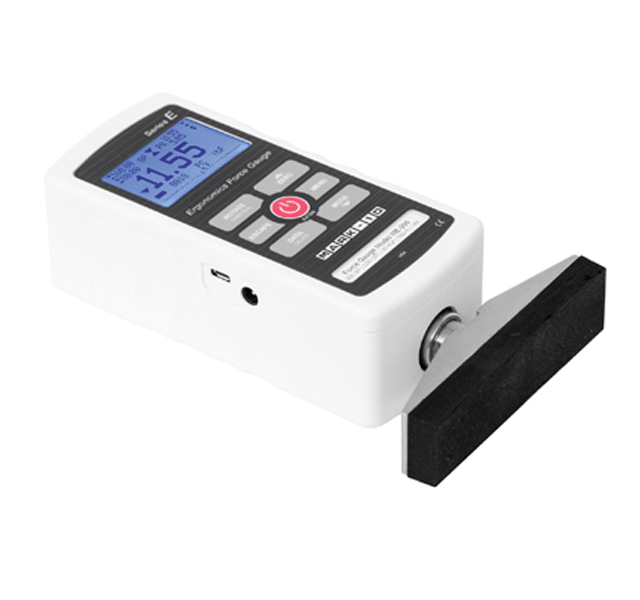

Click-LockTM accessory mounting technology
USB data output
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
Statistical calculations for saved data points

Force Gauge Specifications

Accuracy:	±0.2% of full scale
Sampling rate:	7,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbF, ozF, gF, kgF, N, kN (depending on model, see below)
USB output:	Configurable up to 115,200 baud.
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Weight:	1.7 lb [0.8 kg]
Included items:	Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR ® Lite software, MESUR ® gauge 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
EKE-100-1,-2 EKE-200-1,-2 EKE-500-1,-2 ME-100 ME-200 ME-500	9024100000
15-1004 E1000 - E1013	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution
Model	lbF	ozF	kgF	gF	N	kN
ME-100	100 x 0.05	1600 x 1	50 x 0.02	50000 x 20	500 x 0.2	-
ME-200	200 x 0.05	3200 x 1	100 x 0.02	-	1000 x 0.2	1 x 0.0002
ME-500	500 x 0.1	8000 x 2	250 x 0.2	-	2500 x 0.5	2.5 x 0.0005
