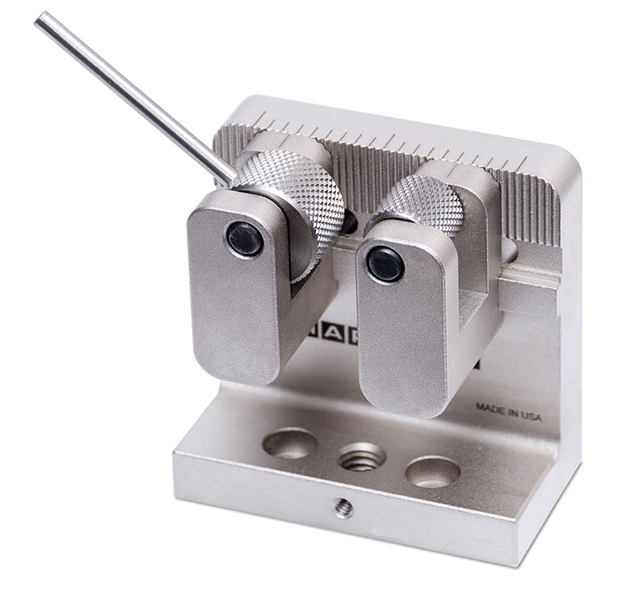

Adjustable Dual Roller Grip

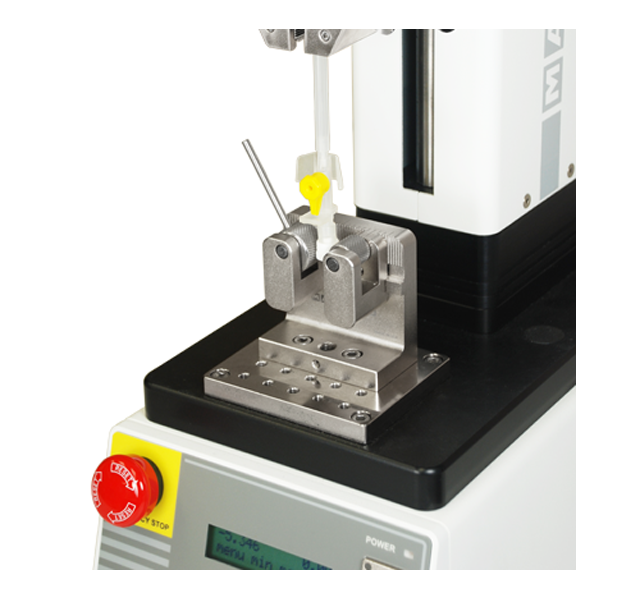

This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers.
Full Description
G1085
This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. The rollers can be repositioned to the desired spacing, accommodating a broad range of sample widths up to 1″ (25 mm).
Features
- Self-tightening cam mechanism effectively grips wires and tubing
- Adjustable cam spacing accommodates a wide range of sample sizes
Specifications
Capacity lbF [N]:
500 [2,500]
Weight lb [kg]:
0.51 [0.23]
Optional Equipments

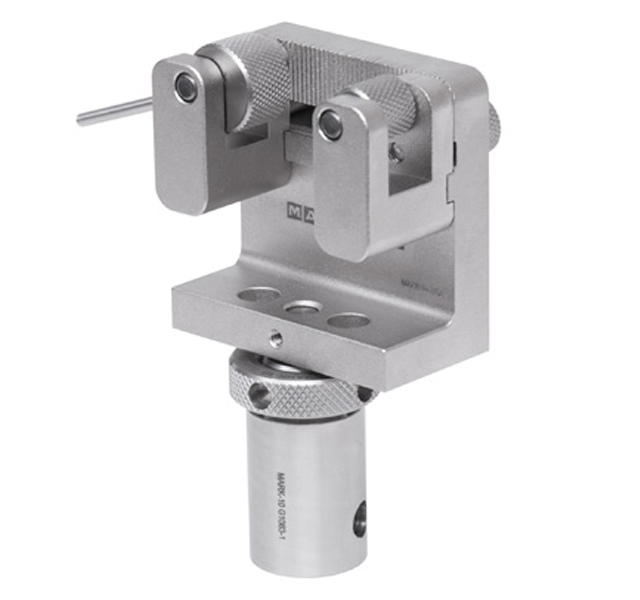

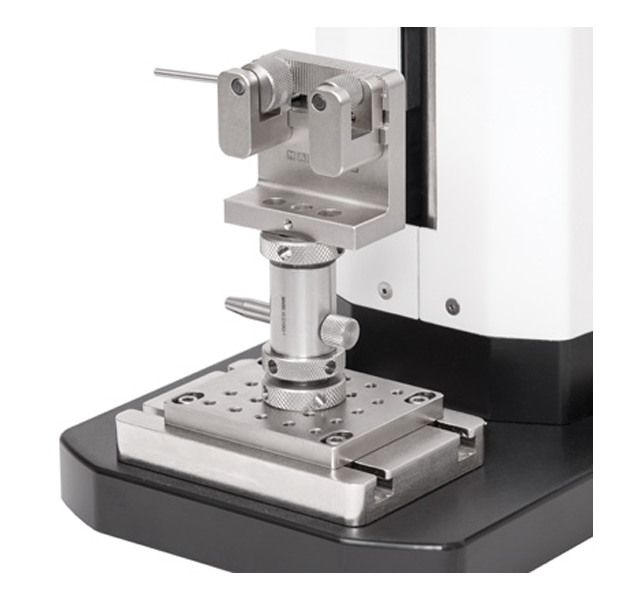

Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
IN [MM]
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 2.40 [61.0] | 2.45 [62.2] | 1.30 [33.0] | 0 – 1.00 [0 – 25.4] | 0.34 [8.6] | 1.20 [30.5] | 1.78 [45.3] |
