SPEED DRYER
For drying paper or pulp sheets or for mass determination of sludge.
Full Description
CODE: P.101.XXX
USAGE
For drying paper or pulp sheets or for mass determination of sludge.
DEVICE DESCRIPTION

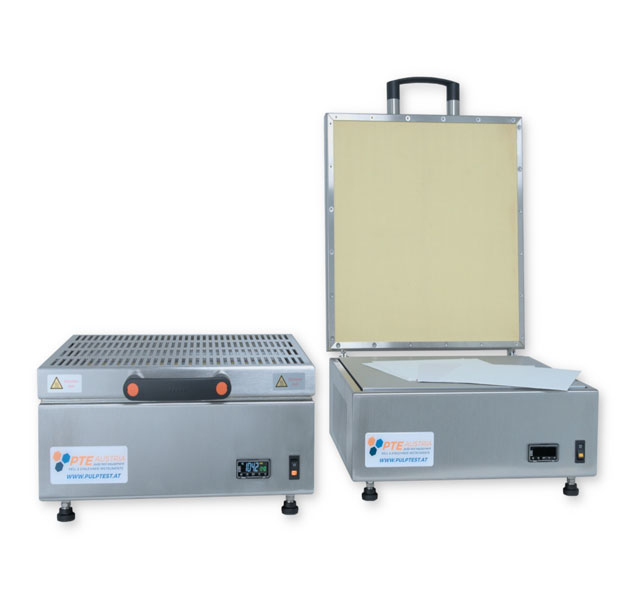

The speed dryer is a sturdy device with a stainless steel housing which is surrounding the aluminum heating plate. The housing prevents from touching the heating plate from any side. The light weight cover is stringed with a special fabric that hold the sheets down to the drying plate and prevents them from warping. The maximum temperature is 180°C. There are four different sizes available. The largest plate can hold up to 6 standard TAPPI hand-sheets at once.
FEATURES
- top quality and manufacturing
- stainless steel housing
- special heating plate with equal heat distribution
- lightweight drying cover
- ON/OFF switch in the front of the device
- adjustable temperature (up to 180°C ± 1°C max deviation)
- special air permeable fabric for perfect steam evaporation
- easy changeable spare cloth
Models
| Code | Size |
|---|---|
| P.101.350 | 350 x 350 mm |
| P.101.480 | 480 x 480 mm |
| P.101.580 | 580 x 430 mm |
| P.101.900 | 900 x 400 mm |
Applicable standards
TAPPI T205
