FOLDING ENDURANCE TESTER
Determines the folding resistance of paper according to the Louis Schopper method.
Full Description
TWIN/DOUBLE FOLDING
CODE: P.103
USAGE
Determines the folding resistance of paper according to the Louis Schopper method.
DEVICE DESCRIPTION

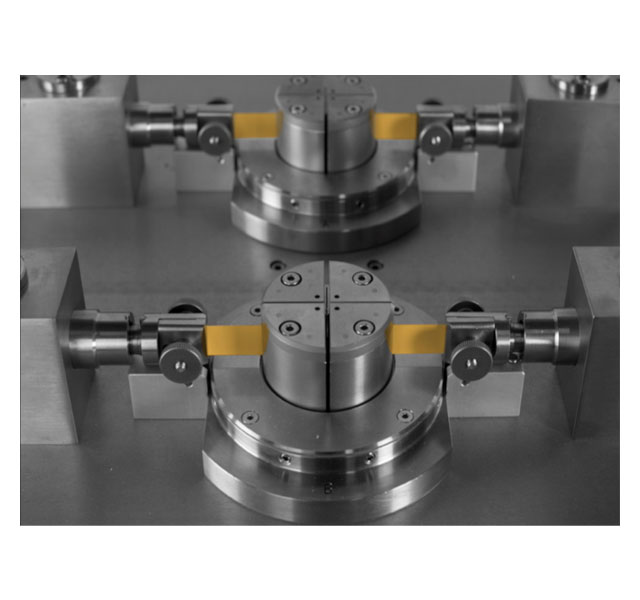

The device measures the number of folds until the sample breaks. The test requires two samples to be tested simultaneously. It is equipped with a touch screen displaying the temperature, the number of folds and statistical values. The heads are equipped with sensors to convey the temperature inside the heads.
FEATURES
- easy to use due to touch screen
- statistic functions
- display of each head temperature and the ambient temperature.
- RS 232 interface for result transfer
Applicable standards
ISO 5626; TAPPI T523; NF Q03-062; NF ISO 5626; IS 1060
