UNIVERSAL MICROMETER
FOR PAPER, TISSUE, BOARD OR LEATHER USAGE To measure the thickness of paper, tissue, board or leather.
Full Description
FOR PAPER, TISSUE, BOARD OR LEATHER USAGE To measure the thickness of paper, tissue, board or leather.
DEVICE DESCRIPTION

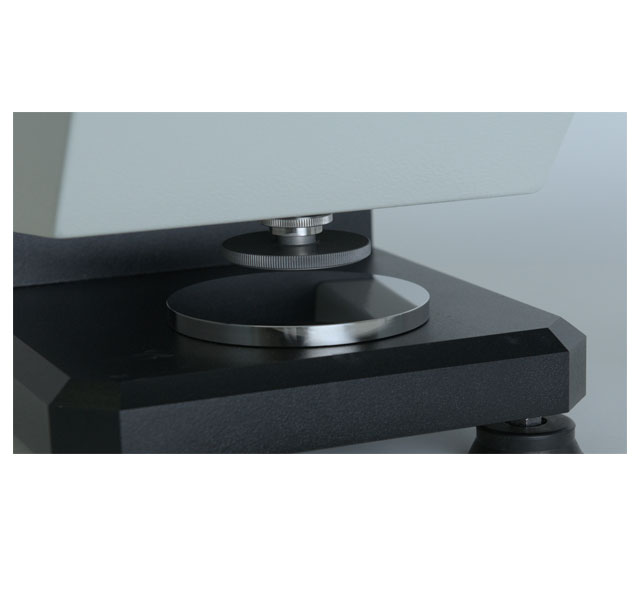

The universal micrometer consists of a sturdy frame that ensures an exact positioning of the measurement pin on the sample. It is easily operated via the integrated touchscreen. The lifting and lowering of the pin are motor driven. There are various pins available to fulfill the different standards for paper, board and tissue as well as leather.
FEATURES
*top-quality materials and manufacturing

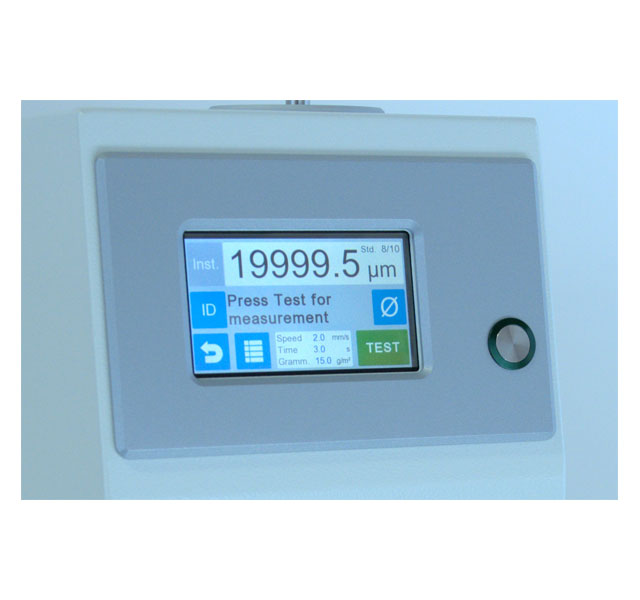

* intuitive and easy operation via touchscreen

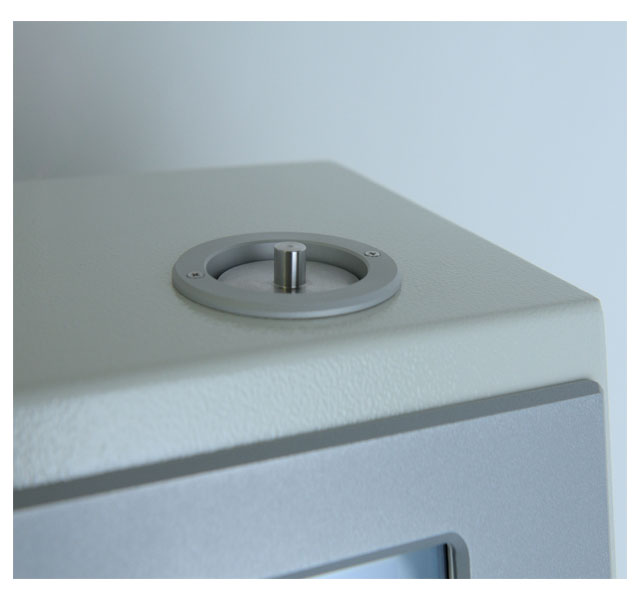

* motor driven measuring pin

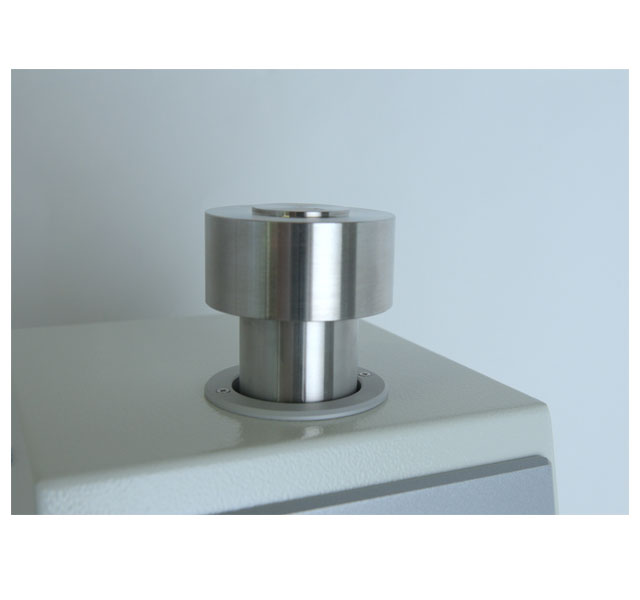

* various pins and weights for tissue, board, paper and leather
* adjustable testing speed
* statistics for multi measurements * two operating modes
* manual mode for single measurements or automatic mode for continued test cycles
Models
| CODE: E.203.XXX |
Applicable standards
ISO 534; ISO 12625-3; TAPPI T411; SCAN P7; EN 20534; DIN 53105
